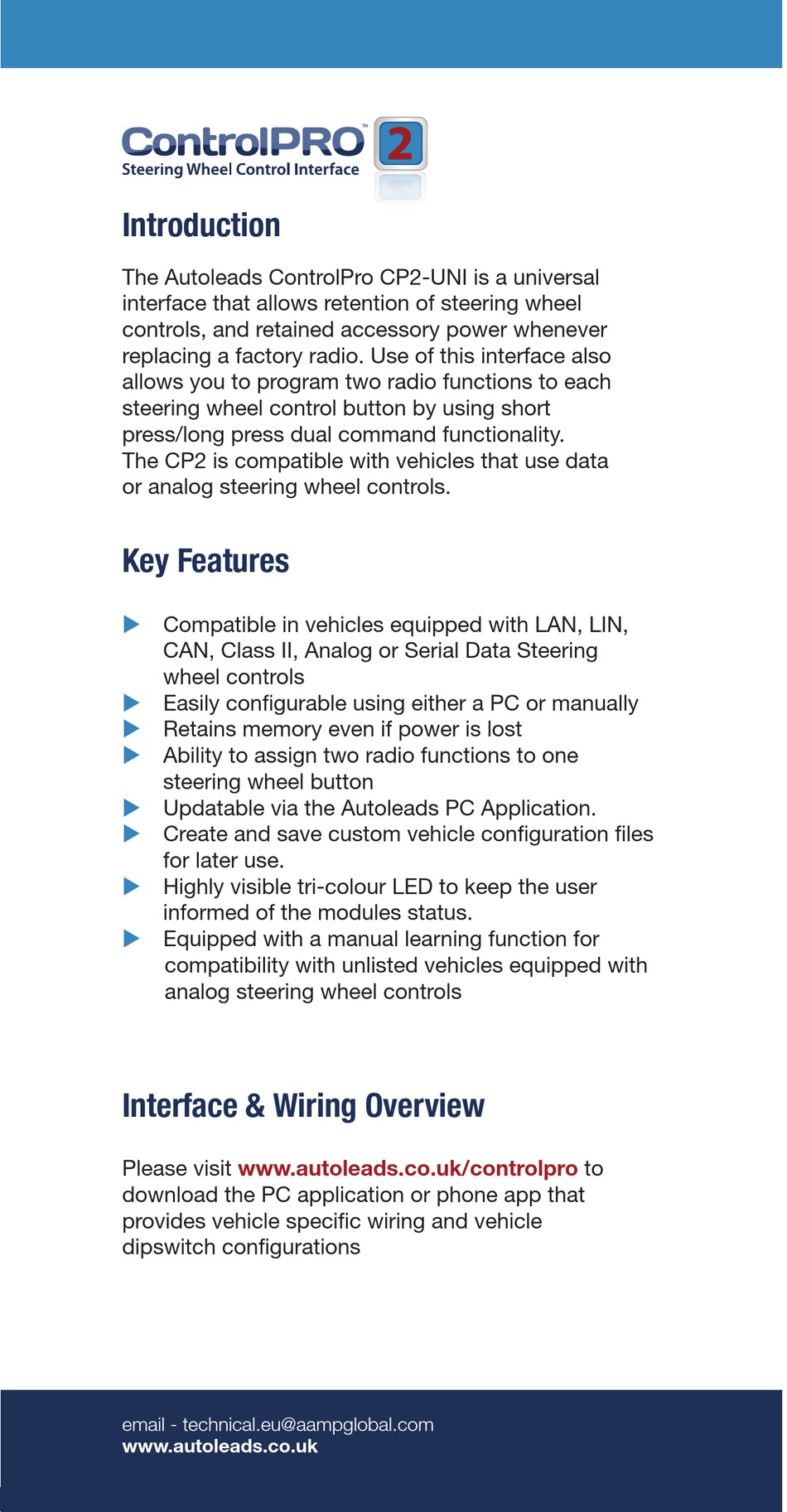

Introduction

The Autoleads ControlPro CP2-UNI is a universal
interface that allows retention of steering wheel
controls, and retained accessory power whenever
replacing a factory radio. Use of this interface also
allows you to program two radio functions to each
steering wheel control button by using short
press/long press dual command functionality.
The CP2 is compatible with vehicles that use data
or analog steering wheel controls.

Key Features

Compatible in vehicles equipped with LAN, LIN,
u
CAN, Class II, Analog or Serial Data Steering
wheel controls
Easily configurable using either a PC or manually
u
u Retains memory even if power is lost
u Ability to assign two radio functions to one
steering wheel button
Updatable via the Autoleads PC Application.
u
Create and save custom vehicle configuration files
u
for later use.
Highly visible tri-colour LED to keep the user
u
informed of the modules status.
u Equipped with a manual learning function for
compatibility with unlisted vehicles equipped with
analog steering wheel controls
Interface & Wiring Overview
www.autoleads.co.uk/controlpro
Please visit
download the PC application or phone app that
provides vehicle specific wiring and vehicle
dipswitch configurations
email - technical.eu@aampglobal.com
www.autoleads.co.uk
to
