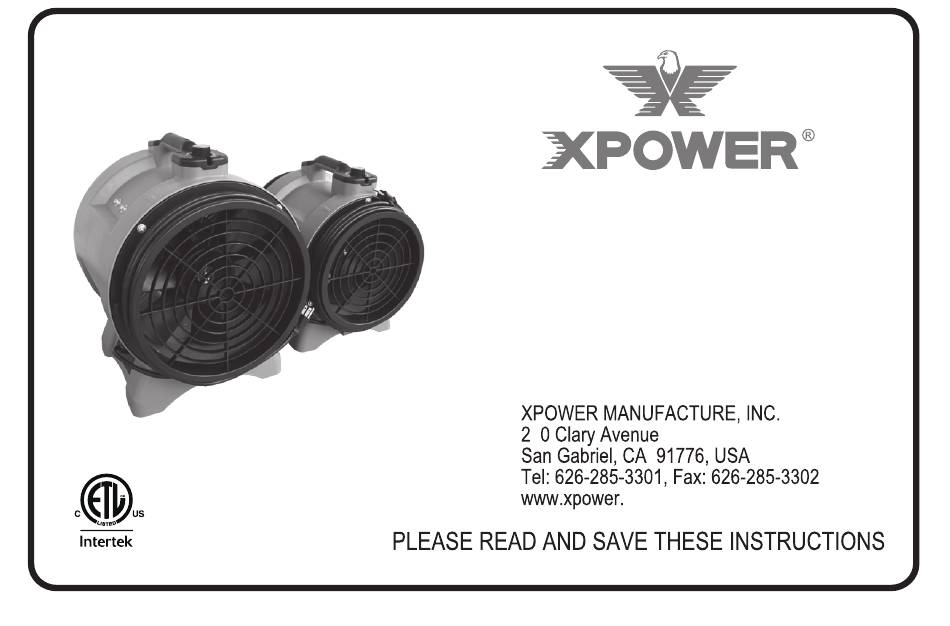

- Page 1 PROFESSIONAL AXIAL AIR MOVER OWNER’S MANUAL X-8 / X-12 (115V / 60Hz)
-
Page 2: Table Of Contents
Index Introduction ............................. Operation / Instructions ........................Safety Instructions .......................... Maintenance Instructions / Troubleshooting ................... Specifications ..........................Warranty / Service .......................... Parts List ............................Accessories ............................ Warranty Registration Form ......................- 1 -... -
Page 3: Introduction
XPOWER Axial Air Movers are ETL/CETL certified and offer complete control of air velocity and volume. Designed with efficiency and flexibility of use in mind, both the X-8 and X-12 feature alow amp draw and a powerful sealed motor to circulate air efficiently and effectively. The X-8 and X-12 function to deliver dry air to ventilate, create negative air pressure or simply to help complete any drying process for a variety of surfaces. -
Page 4: Operation Instructions
Operation Instructions CAUTION! • DO NOT OPERATE FAN WITHOUT REVIEWING COMPLETE OPERATION AND SAFETY INSTRUCTIONS • Incorrect operation of unit can result in property damage, personal injury, or even death. This unit is NOT designed to operate in an explosive or flammable environment No assembly is required for this unit. -
Page 5: Safety Instructions
13. Do not use unit if defective or damaged. 14. Unplug the unit before performing any maintenance, cleaning, or servicing. 15. Any misuse or abuse of this product will void the warranty. 16. An electronic instruction manual can be obtained through www.xpower.com - 4 -... -
Page 6: Maintenance Instructions / Troubleshooting
Switched Off position. Motor Not Running Check outlet/Change to Power failure another outlet Wiring failure Contact XPOWER for repair Obstructions at the Remove obstruction(s) intake or exhaust of fan Scraping Noise From Fan Fan broken Contact XPOWER for repair Weak Air Flow... -
Page 7: Specifications
Specifications Power 115V,60Hz,1/3HP 115V,60Hz,1/2HP 2.5A Rated Airflow (High) 1200CFM 2600CFM Speeds Variable Variable 1,100 / 3,100 1,100 / 3,200 Cord 20' / 18AWG 20' / 18AWG Overheating Protection Dual Thermal Protection Dual Thermal Protection Weight 13.5 lbs 23.4 lbs Size(inches) (L x W xH) 13.6 x 11.1 x 15.4 inch. 15 x 13.6 x 18 inch. -
Page 8: Warranty / Service
End user will be responsible to ship the unit (with RMA Number showing on the shipping label) to the XPOWER Service Department. XPOWER to inspect, assess and advise the repairs needed and the applicable cost, if any. For users outside the US, please contact XPOWER Distributor in your country or region for Warranty service and parts replacement. -
Page 9: Parts List
Parts List Air Inlet / Outlet Motor Handle Cover Speed Switch Housing Power Cord Capacitor Power Cord Panel Label Panel - 8 -... -
Page 10: Accessories
Accessories Ducting Hose items listed below are available for purchase via www.xpower.com. Hoses can extend air flow up to 125ft. Keep in mind that as the ducting hose length increases, the air flow rate will decrease. DUCTING HOSE Item# Diameter... -
Page 11: Warranty Registration Form
Warranty Registration (for US user only) For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC. Address: 240 Clary Ave., San Gabriel, CA 91776. Tel: 626-285-3301 Fax: 626-285-3302 (For your convenience, register your product online at xpower.com)
