Related Manuals for XPower PL-700A
Summary of Contents for XPower PL-700A

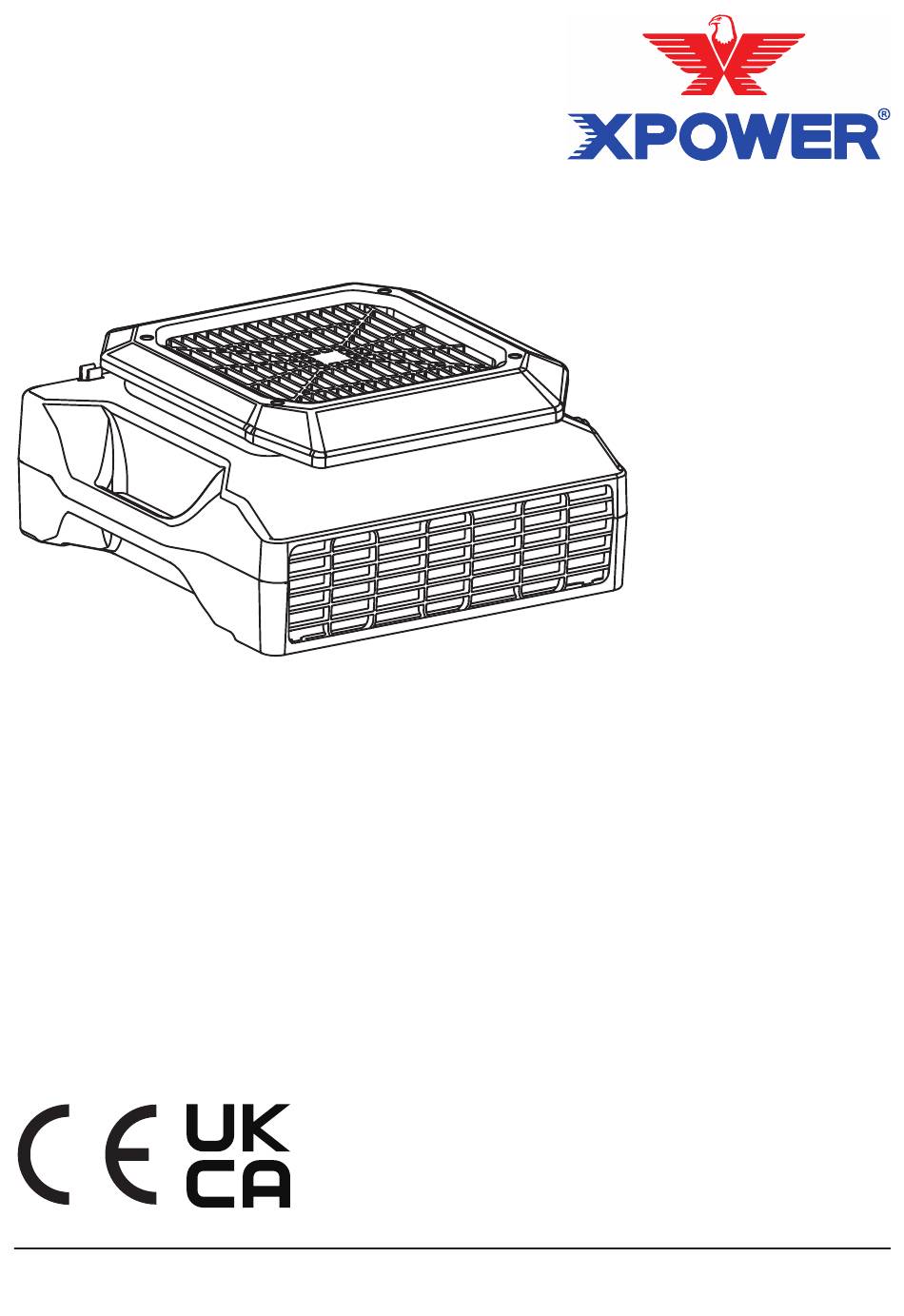

- Page 1 Low Profile Air Mover Owner's Manual Model PL-700A,PL-700AM,XL-700A,XL-700AM (220-240V~,50Hz) Read and save these instructions Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A5 Edition: 1.0.Alpha...
-
Page 2: Safety Instructions
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER. • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use. -
Page 3: Items Included
Read and save these instructions before use Lea y guarde estas instrucciones antes de usar la unidad Lire et conserver ces instructions avant utilisation www.xpower.com | 1-(855)-8868 | info@xpower.com Index: NA-1-A2 Edition: 1.0.Alpha • Low Profile Air Mover x 1 •... - Page 4 Low Profile Air Mover Introduction • The XPOWER Low Profile Air Mover produces a plentiful airflow capacity for small to large jobs for any location size. • It is ideal for drying tight spaces such as crawl spaces, under counters, inside cabinets, bathrooms, auto interiors, and more.
- Page 5 Switch Plate Three Speed Control • Turn to “OFF” position to switch the air mover OFF. Turn to any speed position to switch the air mover ON. • Turn clockwise to set the desired fan speed. • For three speed control: there are 3 fan speeds from: 1, 2, 3. “1” is the lowest speed and “3”...
- Page 6 Switch Plate Activity Indicator HOURS 1/10 Time Meter (For Model PL-700AM,XL-700AM Only) • The time meter shows the total running time from the first usage to the current moment. • When the machine turns on, the activity indicator will blink. The running time starts to count.
- Page 7 Additional Electrical Receptacle (Daisy Chain) (Continued) Regular Additional Electrical Receptacles 1800W English - 7...
-
Page 8: User Maintenance Instructions
Transportation Stack Multiple Units • Stack the low profile air movers on the top sides. Align the air inlets of both low profile air movers. WARNING • Do not stack more than six units of this appliance. User Maintenance Instructions Frequent maintenance is recommended on this appliance. -
Page 9: Troubleshooting Guide
(Daisy chain) trips. receptacle and press circuit power reset button. If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 9... -
Page 10: Technical Specification
Technical Specification MODEL NUMBER PL-700A XL-700A PL-700AM XL-700AM Voltage / Frequency 220-240V~,50Hz Amperage Motor Power 240 W Rated Airflow 1000 CFM Speed Control 3 Speeds Time Meter 9999.9 Hour Additional Electrical 2 Normal Outlets Receptacle Cord Length 4.7 m Unit Dimension 21.0 x 45.0 x 45.0 cm... - Page 11 This limited warranty covers defects in materials and workmanship in your XPOWER- branded products. Contact an XPOWER Distributor in your region for warranty service and parts replacement. Items mentioned but not limited to below are not covered by warranty: (1) Power cord, batteries, filters or any other components considered as a “consumable...
- Page 12 English - 12...
- Page 13 English - 13...
- Page 14 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A5 Edition: 1.0.Alpha...
