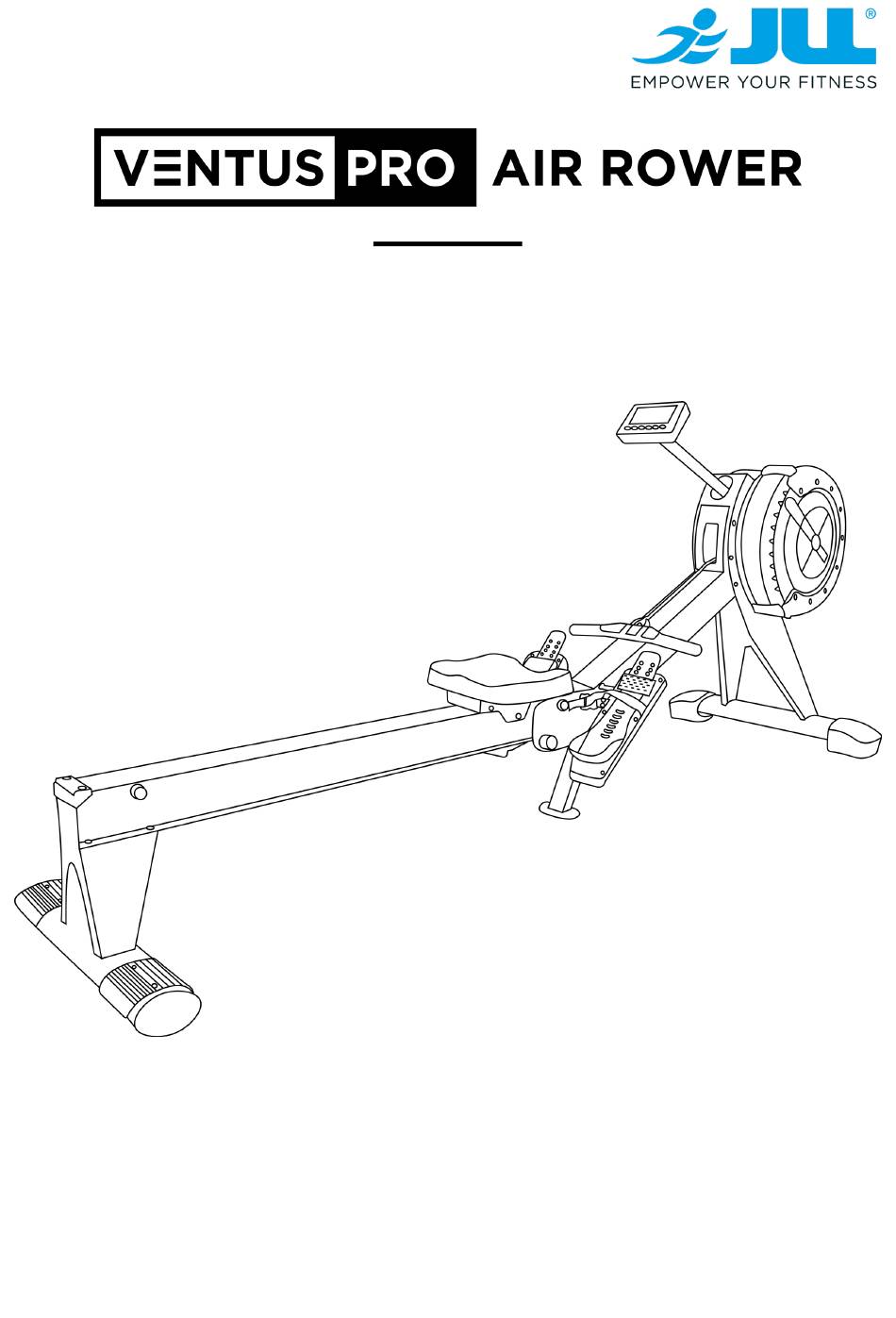

- Page 1 INSTRUCTION MANUAL Please read this book thoroughly before operating the rower.
-
Page 2: Table Of Contents
CONTENTS Exploded diagram p. 4 Parts list p. 5 1. SAFETY INSTRUCTIONS Important safety information p. 6 User safety precautions p. 7 Prior to use p. 7 During use p. 7 Exercise safety precautions p. 7 Facility safety precautions p. 7 Warning stickers p. - Page 3 5. ADDITIONAL INFORMATION Contact information p. 19 Disclaimer p. 19...
-
Page 4: Exploded Diagram
EXPLODED DIAGRAM... -
Page 5: Parts List
PARTS LIST... -
Page 6: Safety Instructions
Please contact JLL Fitness on 0800 6123 988 for advice on how to resolve the issue. -
Page 7: User Safety Precautions
9. The maximum weight capacity of this unit is 150 kg. 10. To avoid bodily injury and/or damage to the product or property, ensure to follow safe procedures for lifting and moving the item. 11. Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold, hot or damp areas as this may lead to corrosion and other related problems. -
Page 8: Warning Stickers
• Read the instruction manual completely before using the rower. • Ensure all users wear appropriate footwear on JLL equipment. ® • Set up and operate the rowing machine on a level surface. DO NOT operate in small restricted areas or on plush carpet. -
Page 9: Assembly
Assembly PREPARING SITE To find the ideal location to set up this rowing machine, ensure that: • Area is well illuminated and well ventilated. • Surface is level. • There is enough space to access the unit and emergency dismount. If it is possible, keep the following clearances: 0.5 m at each side and 2 m at the back. -
Page 10: Content Listing
CONTENT LISTING See diagram (left) and content listing (below) for rower box contents. See Customer Service chapter for contact information if any parts are missing. BOX 1 CONTENTS Slideway Monitor Rower Main Base Saddle Tools Pack Monitor Stand Manual Ipad Stand BOX 2 CONTENTS Rear Stabilizer Front Stabilizer... -
Page 11: Ventus Pro Assembly
Inside the box you will find a Tools Pack (Hex Allen Key, Spanner, Washers and Bolts). See previous page. To assemble your JLL Ventus PRO please follow these easy steps: STEP 1... - Page 12 STEP 5 Slide the saddle onto the slideway, the dip in the saddle will be towards the front stabiliser. Then, reattach the black stopper. STEP 6 Secure the slideway to the base using the silver hex bolt and nuts from before. Also secure using the flat knob on top.
-
Page 13: Adjusting The Pedals
ADJUSTING THE PEDALS The length of footplate can be adjusted by pulling the plastic slip forward until it is released from the pegs. Slide the footplate up or down to the desired length and line up the holes and push it back into the pegs. -
Page 14: Monitor Configuration
MONITOR CONFIGURATION LCD display Recovery Button Reset Button Start/Stop Button Enter Button Down Button Up Button MONITOR SPECIFICATIONS Time.........................00:00 - 99:59 MIN:SEC Time 500M......................00:00 - 99:59 MIN:SEC Stroke..............................0 - 9999 Calorie.............................0.0 - 999.9 Distance............................0.0 - 999.9 Strokes Per Minute..........................0 - 9999 Total Strokes............................0 - 9999 Pulse.................................0 - 240 Temperature..............................0°C... -
Page 15: Specifications
SPECIFICATIONS LCD Monitor: Time, Time 500M, Calorie, Distance, Strokes, Strokes Per Display Minute (SPM), Pulse, Total Strokes, Date, Clock, Calendar and Temperature Storage Built-in wheels. Resistance 10 Levels of Air Resistance Battery 2 x AA Saddle Foam seat with free movement up and down the slideway. Pedals Adjustable platform pedals Handlebars... -
Page 16: Operation
Operation OPERATION PROCEDURES Auto On/Off: The monitor will turn on when you start rowing or by pressing any button. The monitor will turn off after being inactive for 4 minutes. When the monitor is powered on, the LCD display will show all the segments for 1 second. Firstly, you will need to enter the Year (within the Strokes section), the Month (within the Calories section) and the Day (within the Pulse section). -
Page 17: Functions
Press the START/STOP button and the STOP icon will disappear. The monitors race character and yourself will show in the center, the monitor will stop when you have reached the target distance of the race. PC WIN or USER WIN will be shown. When the race has been completed, you can press START/STOP to repeat the race again. -
Page 18: Maintenance
Maintenance Maintenance must be performed on a regular basis. Performing maintenance actions can aid in providing safe and trouble-free operation of all JLL equipment. ® are not responsible for performing regular inspection and maintenance actions for ® your machine. JLL representatives are available to answer any questions that you may ®... - Page 19 Any rust will indicate there may be moisture in the air and as a result this could impact on the integrity and performance of your machine. WARNING 1. Use only JLL replacement parts. ® 2. Keep water and liquids away from electrical parts.
- Page 20 • Always seek professional advice before changing your diet or starting any exercise program. • JLL Fitness Ltd is not liable for any injuries or damages that may occur when assembling or using this rowing machine. • By reading this you assume full responsibility for any injuries or changes to your physical well-being.
- Page 21 Safety Instructions...
- Page 22 Safety Instructions WWW.JLLFITNESS.COM @JLLFitness Follow us on Facebook and Twitter © JLL Fitness Ltd . All Rights Reserved.
