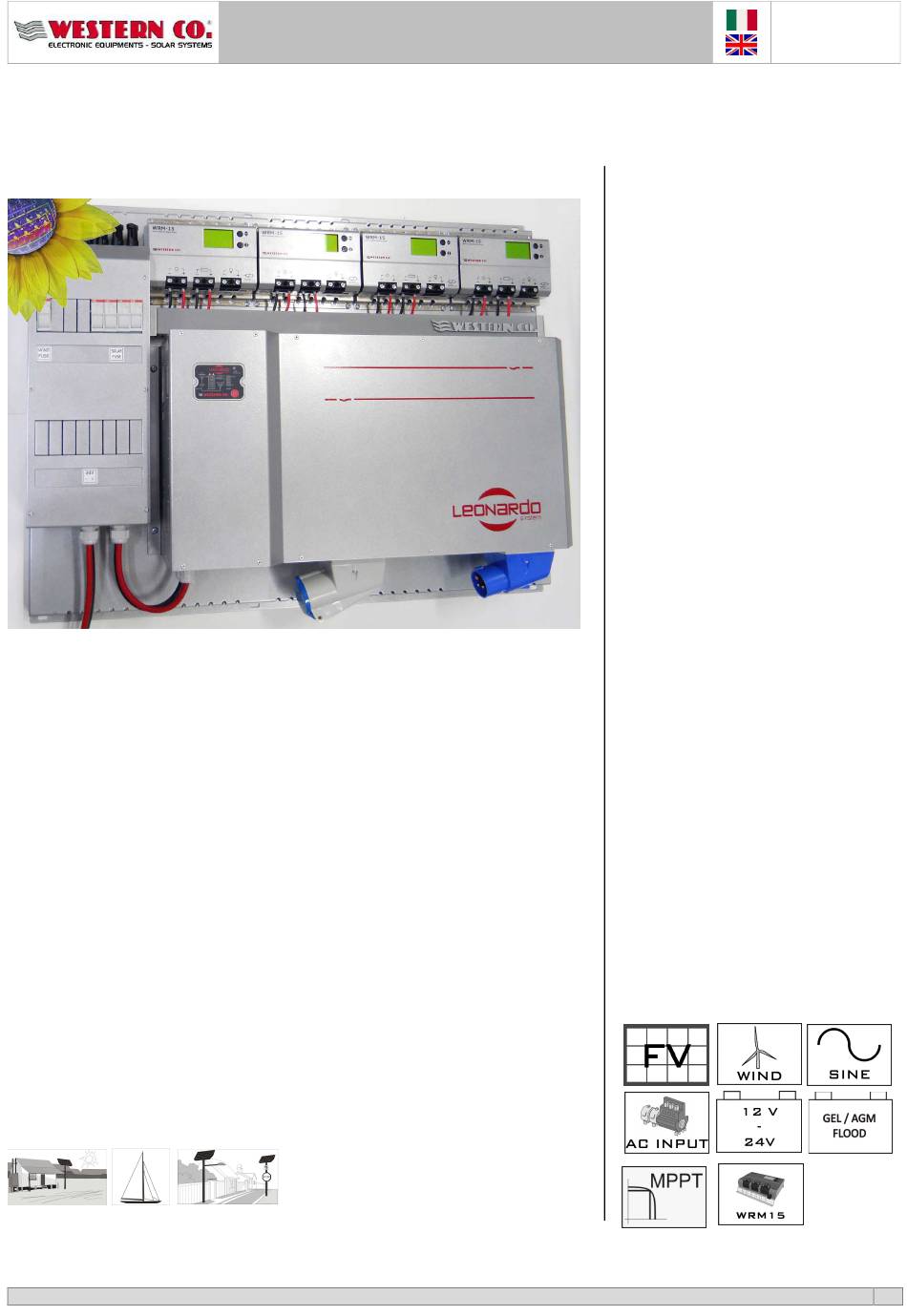

Descrizione generale:

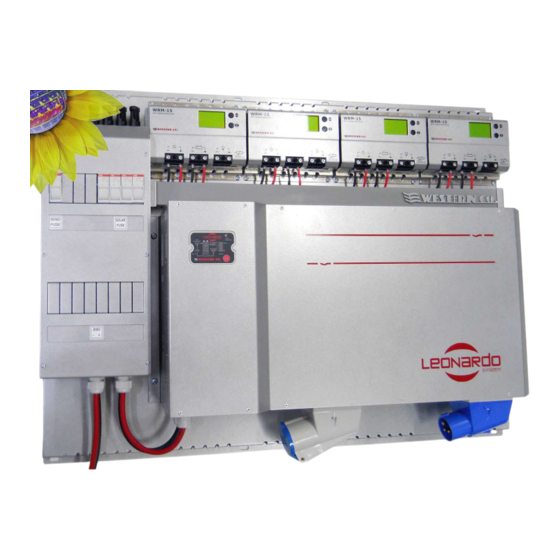

IL Leonardo System 3000 è un sistema completo integrato in grado di gestire,
controllare e completare tra loro differenti fonti di energia rinnovabile:
fotovoltaica ed eolica, con accumulo e stoccaggio al fine di provvedere al
risparmio energetico di utenze domestiche, fino al completo auto-
sostentamento.
Il Leonardo System 3000 rende facile ed immediato l'utilizzo di energia
prodotta da moduli fotovoltaici o generatori eolici, per l'alimentazione di
utenze domestiche, trasformando l'energia prodotta dalle fonti rinnovabili in
tensione alternata 230V 50Hz, come per la rete di distribuzione pubblica.
Il sistema prevede n.4 ingressi FV indipendenti con regolatori di carica MPPT
modello WRM15, tale tipologia di regolatori permette di ottenere sempre la
massima energia disponibile dal campo fotovoltaico, massimizzando il
risparmio energetico.
L'ingresso AC di cui è dotato il sistema garantisce la continuità di esercizio
delle utenze senza percettibili discontinuità anche durante gli eventi di
commutazione ed in caso di batteria scarica a causa della ridotta energia
rinnovabile disponibile.
Applicazioni tipiche:
This document is the property of WESTERN CO. Srl - All rights are reserved - Reproduction and use of information contained within this document is forbidden without the written consent of WESTERN CO. Srl
Leonardo System 3000 Manuale installazione
Leonardo System 3000 Technical Manual
LEONARDO SYSTEM 3000
• Sistema multienergia per risparmio
energetico: fotovoltaico, eolico e ingresso AC
• n.4 ingressi MPPT con regolatore WRM15
• Max Potenza FV 2kWp@24V - 1kWp@12V
• n.1 ingresso eolico da 32A
• Ingresso AC per by-pass: rete, generatore
• Inverter DC/AC ad onda sinusoidale pura
• Potenza continua 3000W
• Potenza di picco 4500W per 10sec.
• Tensione di Output: 230V 50Hz
• Distorsione Armonica <3.0%
• Efficienza 91%
• Funzione Basso-Consumo
• Protezione cortocircuito e sovraccarico AC
• Tensione di batteria 12V o 24Vdc
• Batterie ermetiche, GEL ed acido libero
• Protezione batteria scarica
• Protezione sovra-temperatura
• Protezione inversione polarità batteria
• Contenitore metallico IP20
•
Semplicità di cablaggio
• Box Batteria opzionale
Rev. 1.0
14-05-2012
1
