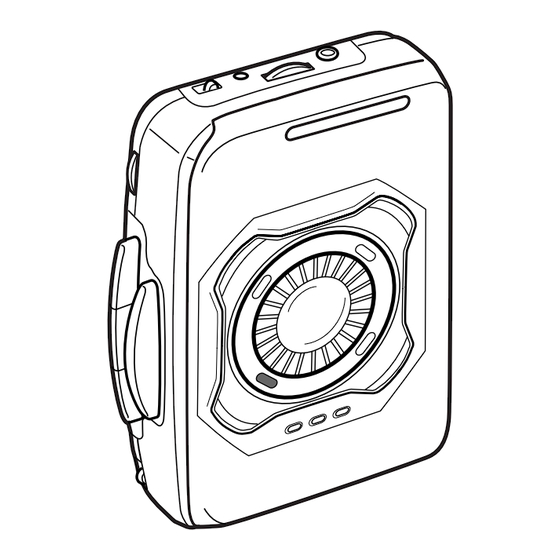

Aiwa HS-TA293 Service Manual

Stereo radio cassette player, basic tape mechanism 4zm-2 p3, p3nc2
Hide thumbs Also See for HS-TA293:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-TA293 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiwa HS-TA293

Summary of Contents for Aiwa HS-TA293

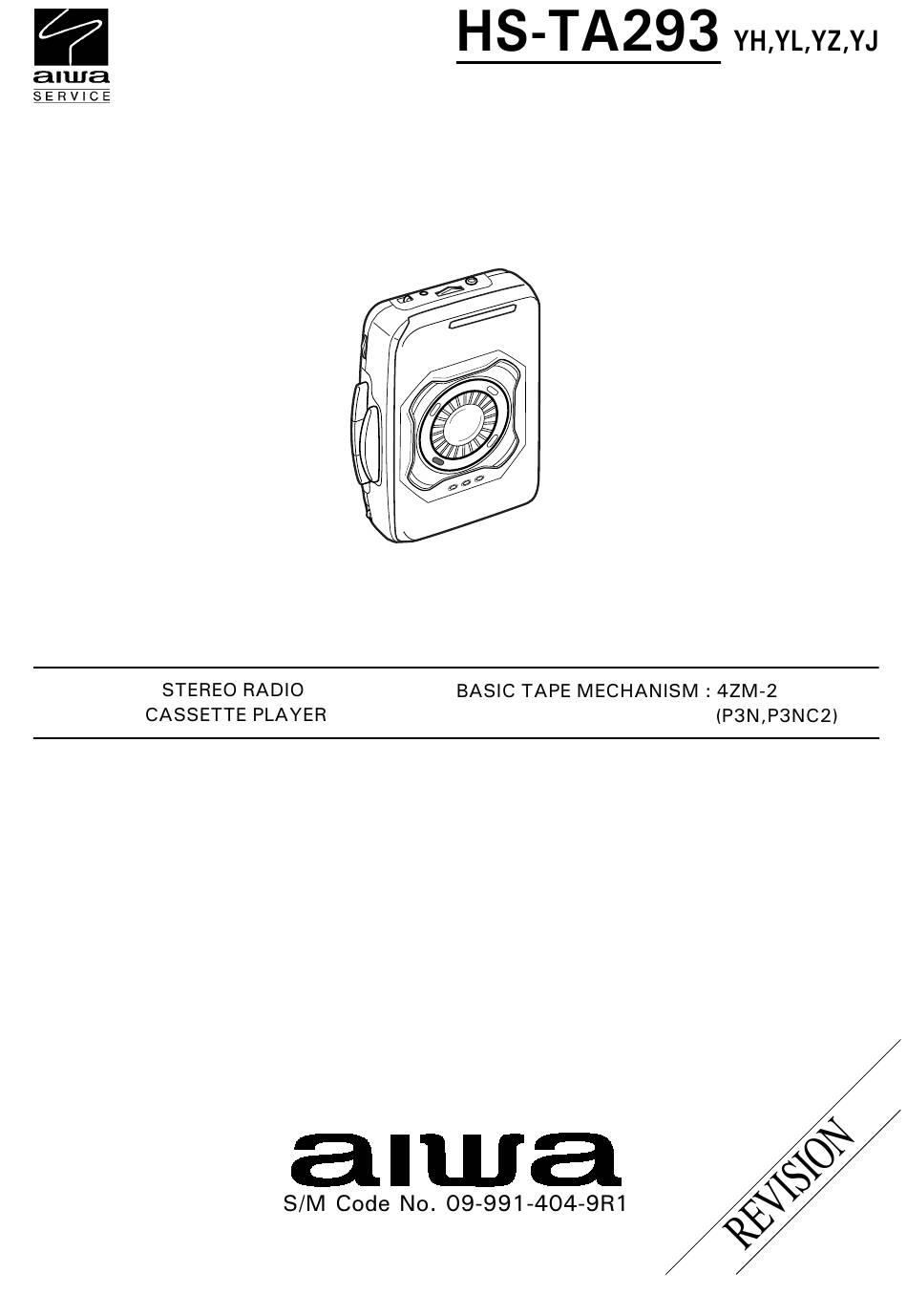

  • Page 1 SERVICE MANUAL...

  • Page 2: Specifications

    15 mW + 15 mW (EIAJ/32Ω)<YH,YJ,YL> Power source: DC 3V using two R6 (size AA) batteries AC house current using an optional AC adaptor AIWA AC – D302 Maximum dimensions: 92 (W) x 116.4 (H) x 39.4 (D) mm (3 in.) Weight Approx.132g (5 oz) (excluding batteries)

  • Page 3: Electrical Main Parts List

    ELECTRICAL MAIN PARTS LIST TRANSISTOR ILLUSTRATION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C302 87-010-184-080 CHIP CAPACITOR 3300P(K) C303 87-010-196-080 CHIP CAPACITOR,0.1-25 87-A21-235-080 C-IC,LAG668FTF<YL,YH,YZ>...

  • Page 4: Wiring - 1 (Main)

    WIRING - 1 (MAIN)

  • Page 5: Schematic Diagram - 1 (Main)

    SCHEMATIC DIAGRAM - 1 (MAIN)

  • Page 6: Wiring - 2 (Front)

    WIRING - 2 (FRONT) <YJ> ADJUSTMENT A MAIN C.B VOLUME L104 L102 PVC1 TC101 TC102 TC104 L103 TC103 SFR 1 PHONES L105 P HEAD L101 BAR ANT WIRING - 2 (FRONT) <YL,YH,YZ> <TAPE PLAYER SECTION> <TUNER SECTION> 6. Tape Speed Adjustment 1.
  • Page 7 <TUNER SECTION> Sensitivity : (IHF, THD 3%) F M Less than 17dB [at 88.0MHz] Less than 17dB [at 98.0MHz] Less than 18dB [at 108.0MHz] (S/N 10dB) A M Less than 58dB [at 600kHz] Less than 56dB [at 1000kHz] Less than 56dB [at 1400kHz] Intermediate frequency : F M 10.7MHz ±...
  • Page 9 8Z-HRJ-002-010 WINDOW,MSP 8Z-HRJ-003-010 KNOB,RTRY MSP 86-HRM-205-010 SPR-T,CLICK 8Z-HRJ-001-010 LID,CASS<YL> 8Z-HRJ-007-010 LID,CASS YH SIL<YH,YJ> 8Z-HRJ-005-010 LID,CASS YZ SIL<YZ> 8Z-HRJ-201-010 GEAR,MSP 86-HRM-005-110 WINDOW,TUN 81-HK9-208-210 SPR-P,CASS A 87-HRR-206-010 PLATE,HEAD J034 88-HRJ-038-010 FRAME,CENTER J034<EXCEPT YJ> 88-HKA-033-010 FRAME,CENTER J034<YJ> 86-HRM-009-210 POINTER,TUN 86-HRM-006-010 KNOB,RTRY TUN 86-HRM-202-010 BAT-CONTACT,(+) 8Z-HRM-205-010 BAT CONTACT (-)
  • Page 10 FRAME,CENTER...
  • Page 11 1 84-ZM2-012-010 LEVER,PLAY G 2 84-ZM2-211-01K GEAR,CONNECT 3 84-ZM2-222-010 SPR-T,PLAY 4 84-ZM2-015-010 LEVER,STOP G 5 84-ZM2-014-010 LEVER,REW G 6 84-ZM2-013-010 LEVER,FF G 7 84-ZM2-223-010 SPR-T,REW STOP 8 84-ZM2-232-010 BELT,MAIN 9 84-ZM2-221-010 FLY-WHL,P2 10 84-ZM2-230-010 CAPSTAN,P 1.8-25 11 84-ZM2-220-01K BRG,P 12 84-ZM2-210-01K GEAR,AUTO 13 84-ZM2-218-01K CAP,GEAR AUTO...
  • Page 12 84-ZM2-225-010 84-ZM2-226-010 SPR-T,AUTO FIND SPR-C,CLUTCH 84-ZM2-228-010 SPR-C,BT 84-ZM2-224-010 SPR-T,FF LOCK 84-ZM2-222-010 SPR-T,PLAY 84-ZM2-227-010 84-ZM2-223-010 SPR-C,AZIMUTH SPR-T,REW STOP...
  • Page 13 1 8Z-HRJ-911-010 IB,Y(EDPOHCZ)IN<YZ1B,YZ1> 1 8Z-HRJ-910-010 IB,Y(EGFSI)-IN<YZ1B,YZ1> 1 8Z-HRJ-904-010 IB,YJ(ESC)-C<YH,YJ> 1 8Z-HRJ-909-010 IB,YL(ESP)-IN<YL> 1 8Z-HRJ-902-010 IB,YJ(EC)-SOLID<YH,YJ> 2 84-447-019-310 CLIP,BELT 3 87-B30-176-010 HEADPHONE,HP-M007(5)

This manual is also suitable for:

Hs-ta293ylHs-ta293yhHs-ta293yzHs-ta293yj
