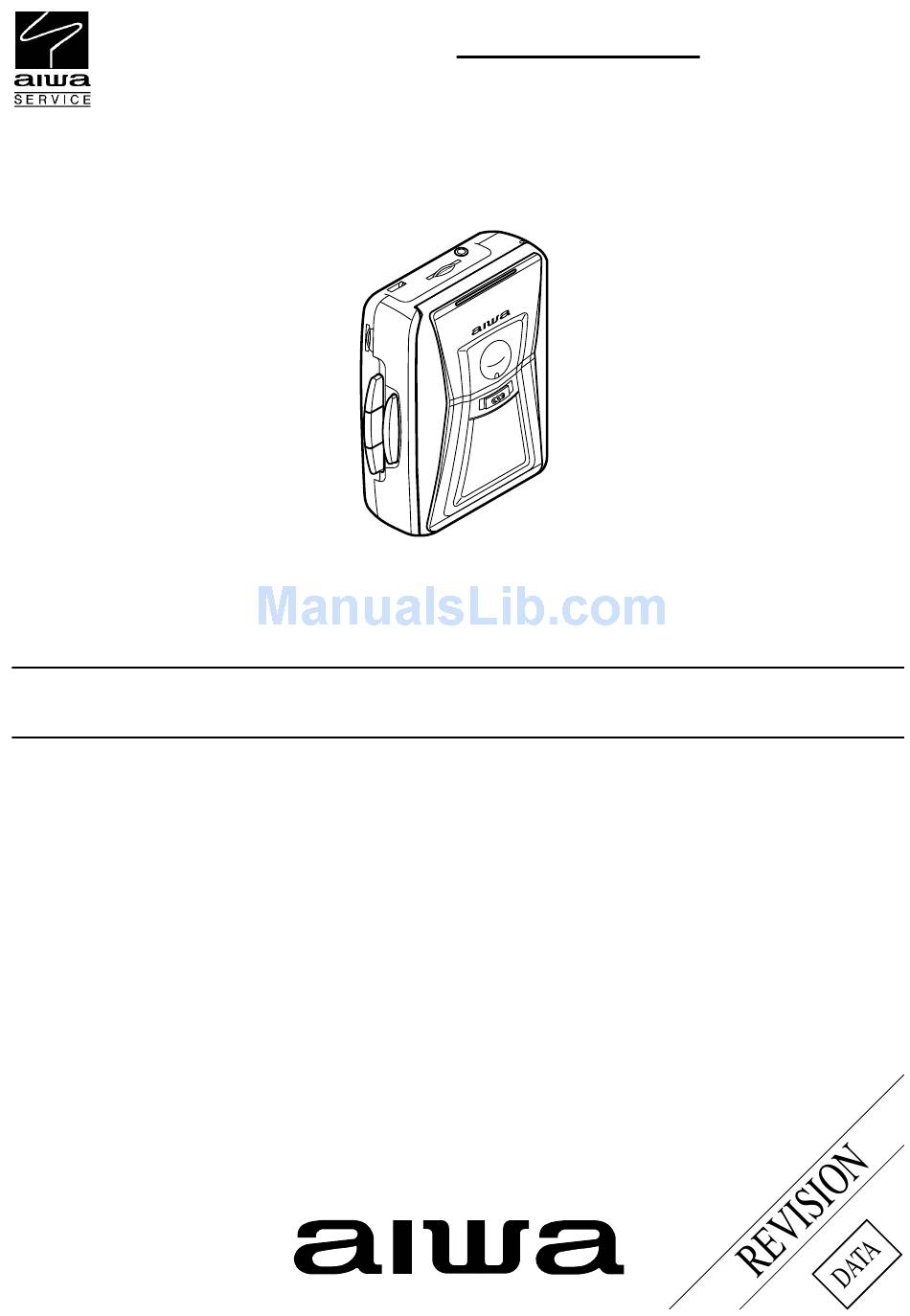

SERVICE MANUAL
STEREO RADIO
CASSETTE PLAYER
•
This Service Manual is the "Revision Publishing" and replaces "Simple Manual"
(S/M Code No. 09-99B-421-8T2).
•
This Service Manual is not for HS-TA203(YL) Silver color.
HS-TA203
BASIC TAPE MECHANISM : 4ZM-2 P13NF,
S/M Code No. 09-001-421-8R2
YL,YZ,YJ
P13NC
Advertisement
Related Manuals for Aiwa HS-TA203YL
Summary of Contents for Aiwa HS-TA203YL
- Page 1 HS-TA203 YL,YZ,YJ SERVICE MANUAL STEREO RADIO BASIC TAPE MECHANISM : 4ZM-2 P13NF, CASSETTE PLAYER P13NC • This Service Manual is the "Revision Publishing" and replaces "Simple Manual" (S/M Code No. 09-99B-421-8T2). • This Service Manual is not for HS-TA203(YL) Silver color. S/M Code No.
-
Page 2: Specifications
SPECIFICATIONS Frequency range: FM: 87.5 – 108 MHz AM: 530 – 1710 kHz Maximum output: 15 mW + 15 mW (EIAJ/32 ohms) Power source: DC 3V using two R6 (size AA) batteries Maximum dimensions: 92.0 (W) x 116.4 (H) x 38.3 (D) mm in.) Weight: Approx.131.5 g (4.6 oz) (excluding batteries) - Page 3 TRANSISTOR ILLUSTRATION ELECTRICAL MAIN PARTS LIST REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRIPTION C106 87-A11-729-080 C-CAP,S 0.47-25 Z F C107 87-A11-733-080 C-CAP,S 1-16 Z F 87-A21-387-040 C-IC,TA2145F C108...
- Page 4 WIRING...
- Page 5 SCHEMATIC DIAGRAM...
- Page 6 MECHANICAL EXPLODED VEW 1 / 1 ADJUSTMENT A MAIN C.B VOLUME L104 4ZM-2 P13NF 4ZM-2 P13NC PVC101 PVC1 L102 TC101 TC104 TC102 SFR51 L103 TC103 SFR 1 L105 PHONES P HEAD L101 (BAR-ANT) BAR ANT <TUNER SECTION> <TAPE PLAYER SECTION> 1.
- Page 7 MECHANICAL PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRI P TI O N 1 8A-HRL-003-010 KNOB,SL SBASS 2 8A-HRL-002-010 PANEL,SBASS SIL YU<[LM]YL> 2 8A-HRL-005-010 PANEL,SBASS YZ<[LM]YZ,[S]YZ> 2 8A-HRL-007-010 PANEL,SBASS YJ<[LM]YJ,[S]YJ> 2 8A-HRL-010-010 PANEL,SBASS MGRE YU<[GM]YL>...
- Page 8 TAPE MECHANISM EXPLODED VIEW 1 / 1 REEL TABLE,L FRAME,CENTER SHAFT,REEL FELT,CLUTCH LEVER,REW G CAPSTAN, 1.8-23.3...
- Page 9 TAPE MECHANISM PARTS LIST 1 / 1 REF. NO. PART NO. KANRI DESCRIPTION REF. NO. PART NO. KANRI DESCRI P TI O N 1 84-ZM2-012-110 LEVER,PLAY G 2 84-ZM2-211-110 GEAR,CONNECT 3 84-ZM2-222-110 SPR-T,PLAY 4 84-ZM2-015-110 LEVER,STOP G 5 84-ZM2-216-210 REEL TABLE,R 6 84-ZM2-013-110 LEVER,FF G 7 84-ZM2-223-110...
- Page 10 2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110, JAPAN TEL:03 (3827) 3111 9630469 9630472 0251431 Printed in Singapore...
