Jbod on the 12g sas modular raid controller

Hide thumbs Also See for C Series:

At the time of this writing, it appears that JBOD is disabled on the controller by default, and cannot

be enabled on the 12G Controller via the CIMC, only the pre-boot RAID Configuration menu

(CTRL+R).

If you wish for ALL disks to be JBOD, then delete any existing Virtual Disks (VD) on the RAID.

This should release the Physical Disks (PD) into 'Unconfigured Good'. This can be done via

CIMC or CTRL+R pre-boot RAID configuration menus. This should be expected to delete data

on any Virtual Disk that you Delete so back up important data accordingly.

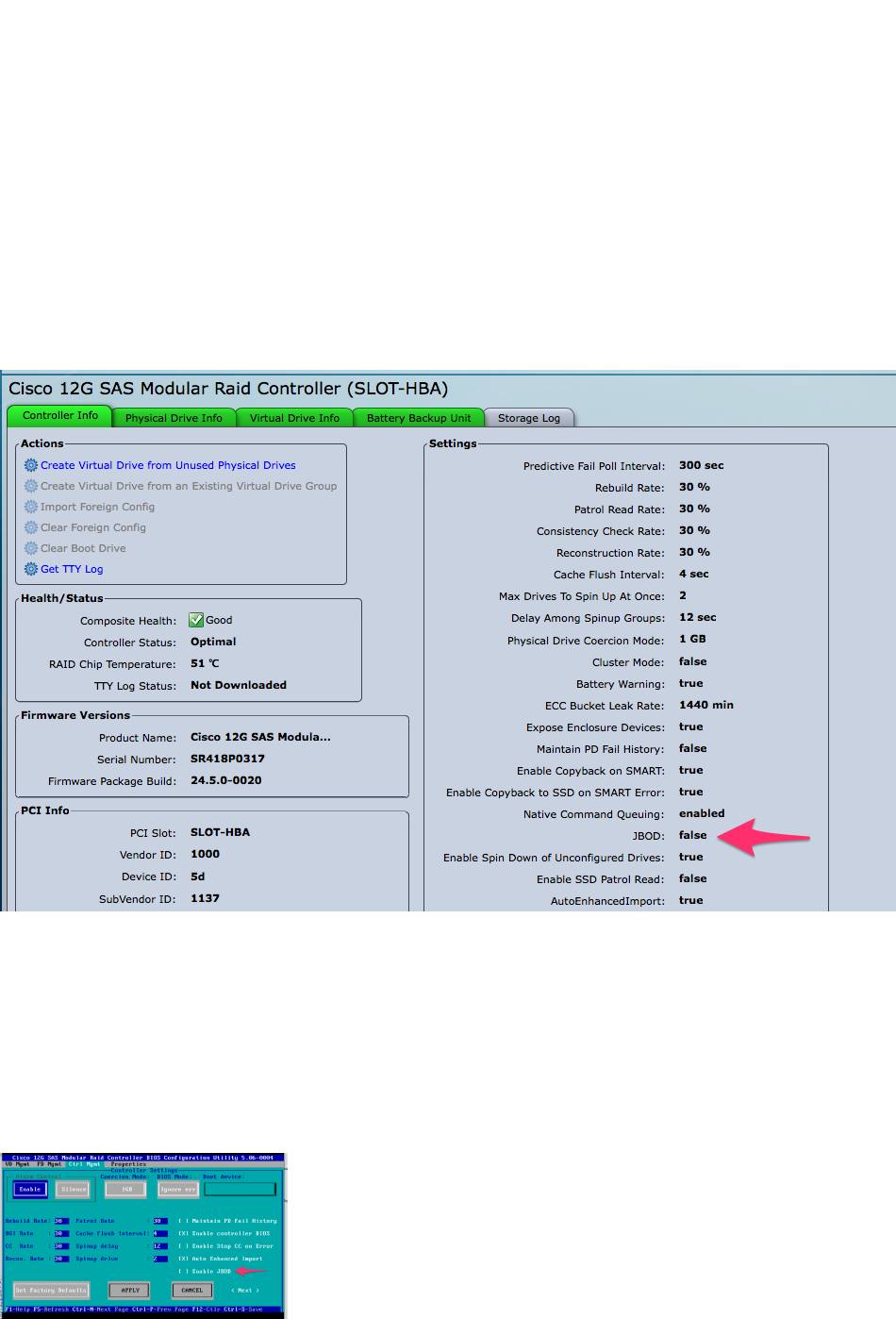

Confirm if JBOD is enabled or disabled already:

1) Log into CIMC.

2) Click Storage > Select 12G controller > Controller Info tab.

Enable JBOD

1) If disabled, reboot the host, and press CTRL+R to enter the RAID configuration screens.

2) Press CTRL+N twice, navigate to 'Enable JBOD' and press 'space'. Ensure that the [X] shows

in the square brackets.

3) Press CTRL+S to save.
