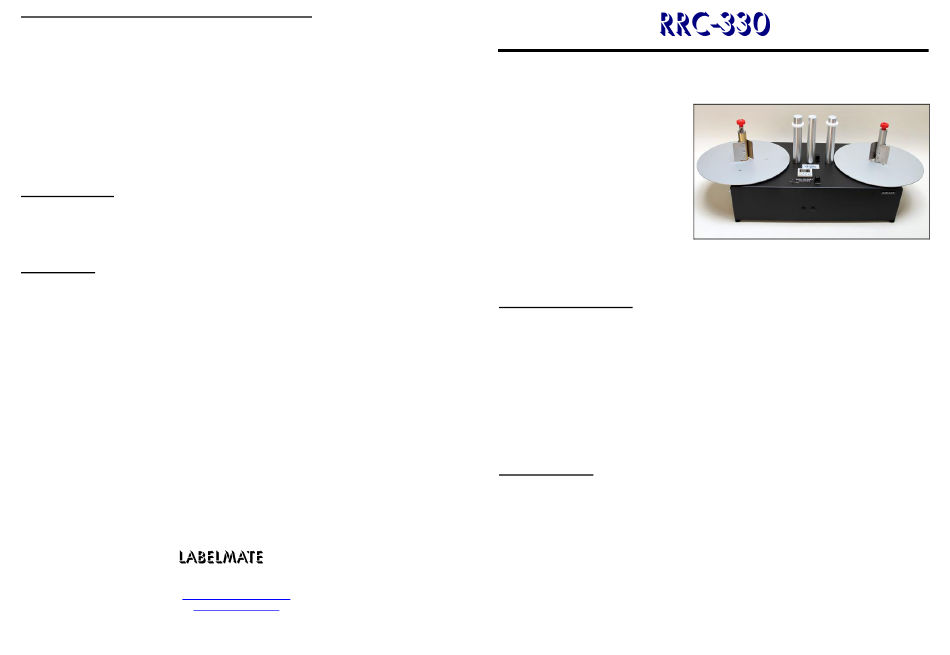

Labelmate RRC-330 Quick Start Manual

ADJUSTING THE LABEL DETECTOR PHOTOCELL:

The label detector photocell has been adjusted at the factory (potentiometer fully
CCW) and requires no adjustment for a large variety of labels. However, some
specific labels (very transparent or relatively opaque backing paper) might
require adjustment of the photocell.
Load a roll of labels on the machine, and position the backing paper in front of
the photocell. Make sure that the labels are tensioned when doing the test. The
LED should light on. If not, rotate the potentiometer till LED goes on "green".
Now put a label in front of the photocell, the LED should turn off.

MAINTENANCE:

Your RRC-330 requires no maintenance but to keep the unwind plate clean.

WARRANTY:

Please read the attached warranty conditions.
290, Chaussée de Ruisbroek, 1620 Drogenbos, BELGIUM
TEL: +32 2.375.69.60 – FAX: +32 2.375.38.96
brussels@labelmate.com
www.labelmate.com
© LABELMATE – User_RRC-LED-CE – 05/17 – Original user manual.
SPRL
Reel-to-Reel Counting System
•
Variable Speed Control
•
6-Digit Digital Pre-set Counter
•
330mm Roll Diameter
Remove all parts from the shipping container and verify contents.

PACKAGE CONTENTS:

•
User Manual (this document)
•
RRC-330 Unit
•
Power Cord
•
Separate User Manual for Counter Unit
Retain the Shipping Container and Packaging for Storage and Transport

SPECIFICATIONS:

Weight of the machine: STD: 12Kg – ACH: 12,5Kg
Max. Label Roll Weight: 7Kg.
Max. Label Roll Diam.: 330mm.
Input: 220-240VAC – 50-60Hz.
Power Supply:
Speed: Max. 72cm/sec with 76mm take-up roll diameter at
beginning of the roll.
Max. 235cm/sec. at end of 300mm roll.
● KEEP MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE ●
