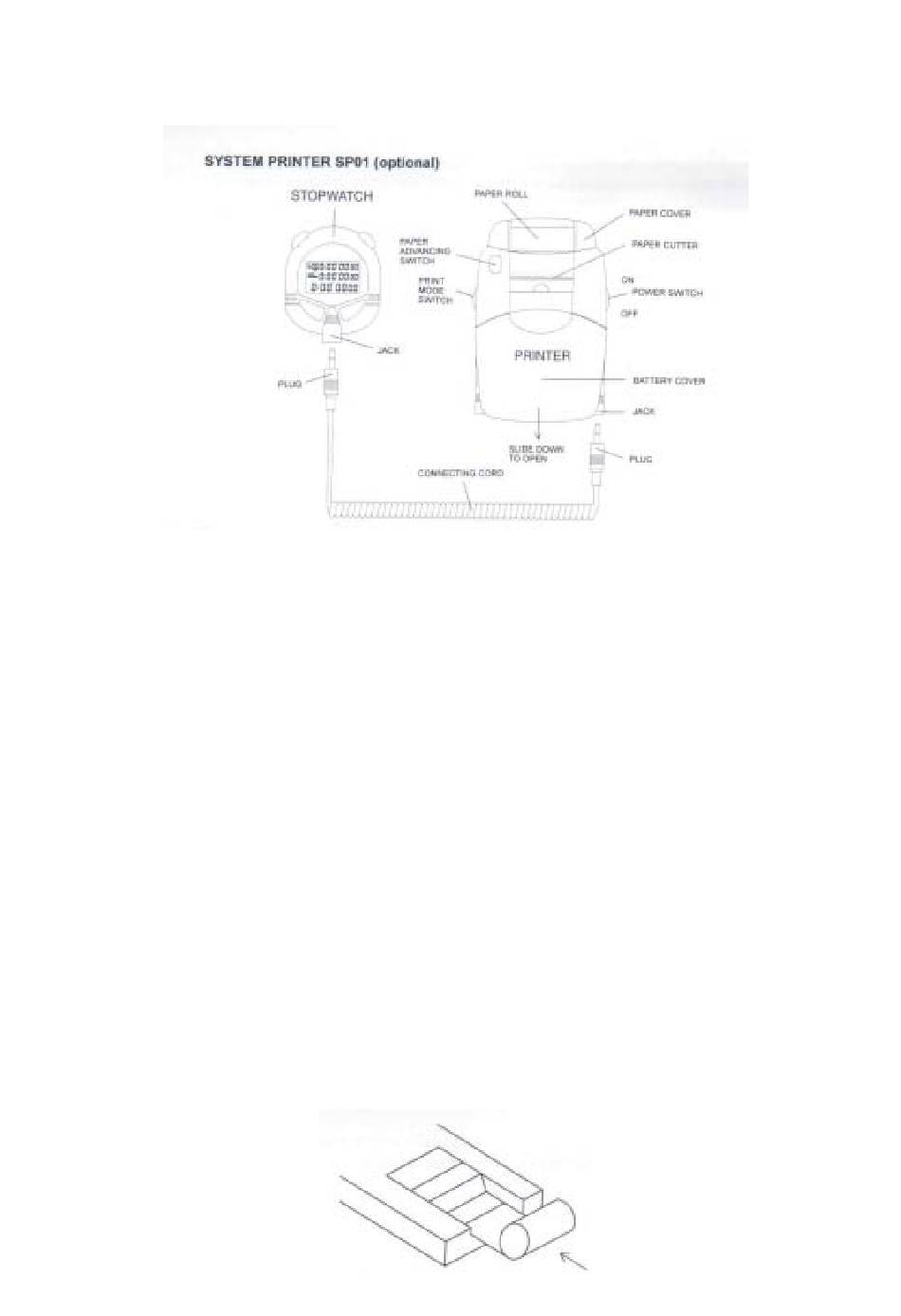

DT 500P PRINTER
OPERATING INSTRUSTIONS
BATTERY INSERTION
1. With the POWER SWITCH in the OFF position press and slide down the battery cover.
2. Put in 4 pcs of AA size batteries in polarities as shown in the battery compartment.
3. Slide up the battery cover until it clicks closed.
- Always use batteries of the same manufacturer and replace all batteries at the same time,
- If the printer will not be used for a long time, remove the batteries from the battery compartment.
PAPER INSERTION
1. Open the paper cover.
2. Cut the end portion of the roll of thermal paper straight.
3. Turn on the printer.
4. Insert the end portion of the paper into the paper insertion slot in the correct way .
5. Keep pressing the PAPER ADVANCING SWITCH until the end of paper is 2-3 cm out from the
printer.
6. Put the roll of paper into the paper compartment and close the paper cover.
1
Advertisement
Table of Contents
Related Manuals for Digi DT 500P
Summary of Contents for Digi DT 500P
- Page 1 DT 500P PRINTER OPERATING INSTRUSTIONS BATTERY INSERTION 1. With the POWER SWITCH in the OFF position press and slide down the battery cover. 2. Put in 4 pcs of AA size batteries in polarities as shown in the battery compartment.
- Page 2 - NEVER pull paper from the reverse direction, this may damage the printer. For replacing the roll of paper before it is used up, first tear off the paper and press the PAPER ADVANCING SWITCH until all the remaining paper is out. - Do not touch the paper on the right side as it may cause poor printing.
- Page 3 Remarks: - Do not pull out the paper when the printer is not in operation. - Do not print if there is no paper in the printer. - Keep the printer from high moisture or dusty environment. - Do not subject the printer to violent shocks. - Do not put the printer under direct sunlight or near high temperature.
