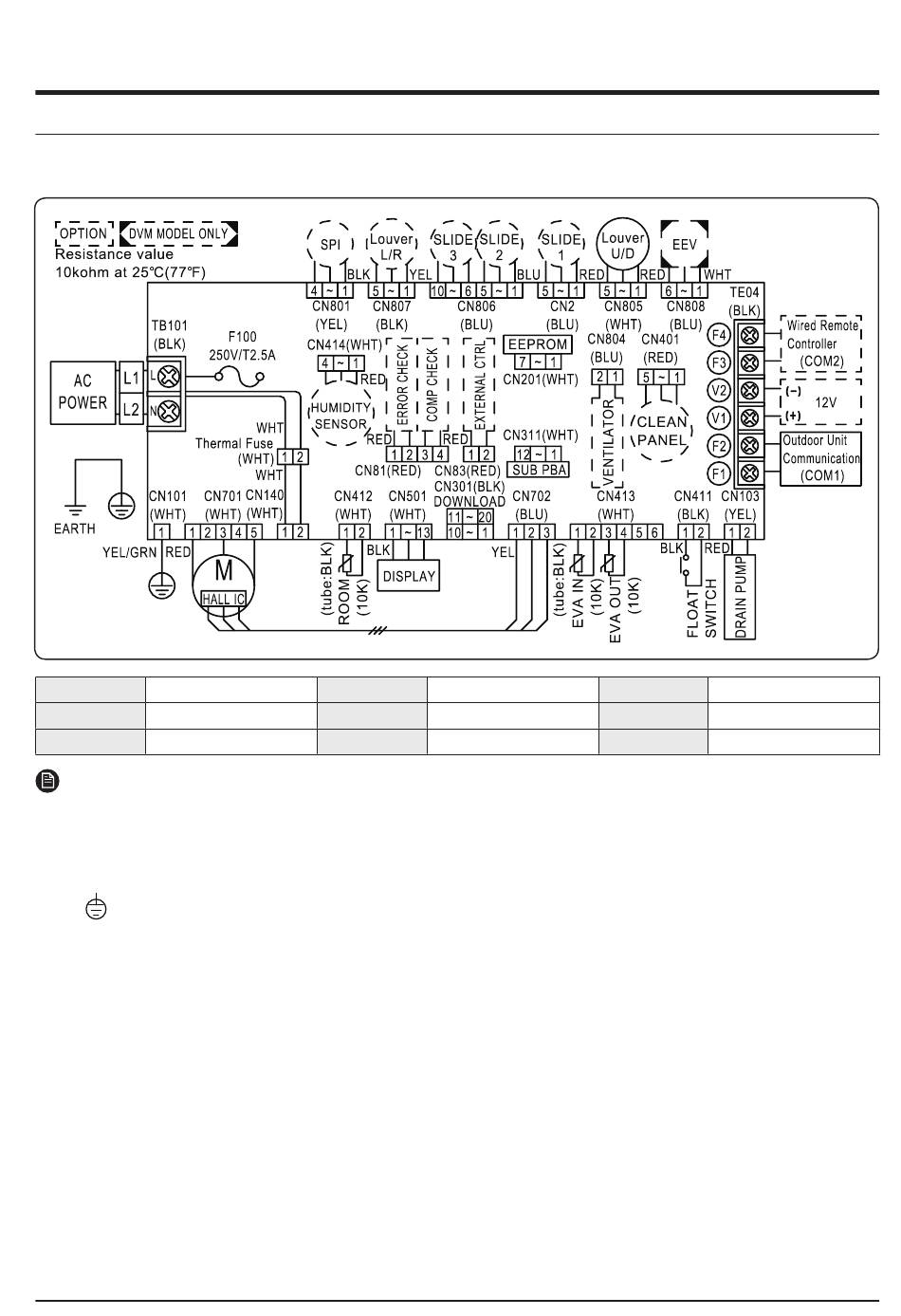

7. Electrical Wiring Diagram

Wind-Free 1Way Cassette
• AM022/028/036NN1DEH/∗∗
F100 FUSE
M[HALL IC] Motor (IDU fan)
Thermal Fuse Terminal Block thermal fuse
NOTE
• This wiring diagram applies only to the indoor unit.
• Symbols show as follow :
BLK: black, RED: red, BLU: blue, WHT: white, YEL: yellow, BRN: brown, SKY: sky blue, GRN: green
• For connection wiring indoor-outdoor transmission F1-F2, indoor-wired remote controller transmission F3-F4.
• Protective earth(SCREW)
22
EEV Electronic expansion valve
SPI S-Plasma ion
ROOM(10K) Thermistor ROOM(10K)
EVA-IN(10K) Thermistor EVA IN(10K)
EVA-OUT(10K) Thermistor EVA OUT(10K)
