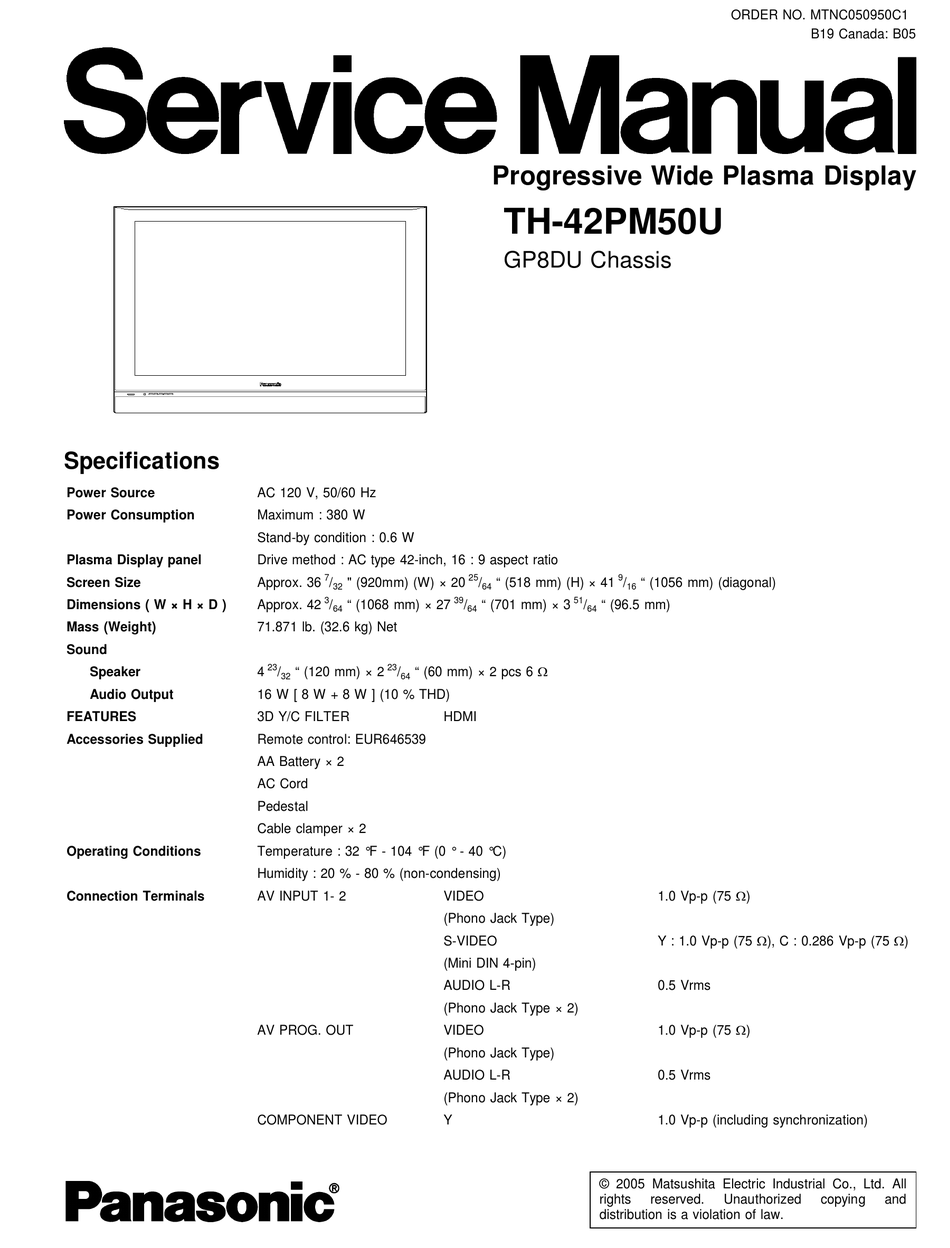

TH-42PM50U INPUT1-2 ± 0.35 Vp-p AUDIO L-R 0.5 Vrms (Phono Jack Type × 2) HDMI HDMI type A Connector AUDIO L-R 0.5 Vrms (Phono Jack Type × 2) Note: Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
TH-42PM50U 2 Safety Precautions 2.1. General Guidelines 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
TH-42PM50U 3 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...
TH-42PM50U 4 About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
TH-42PM50U 5 Service Hint Board Name Function Board Name Function Power Supply Data Driver (Left) DC-DC Converter, Power SOS Data Driver (Right) Audio Power Scan Drive AV Terminal, AV Switch Scan out (Upper) HDMI Interface Scan out (Lower) None serviceable.
TH-42PM50U 6 Plasma panel replacement method 6.1. Remove the Back cover. 6.4. Remove the D-Board 1. See Service hint (Section 5). 1. Remove the PB-Board. 2. Disconnect the couplers (D3, D5, D20 and D25) and 6.2. Remove the P-Board. 3. Disconnect the flexible cables (D33 and D34).
TH-42PM50U 6.5. Remove the rear terminal 6.7. Remove the DV-Board cover 1. Unlock the cable clampers to free the cable. 2. Remove the screws (×6 and ×1 1. Remove the screws (×4 , ×3 , ×2 , and ×1 3. Remove the DV-Board.
TH-42PM50U 6.8. Remove the DG-Board 6.10. Remove the PA-Board 1. Unlock the cable clampers to free the cable. 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (DG3 and DG5). 2. Disconnect the couplers (PA7 and PA10).
TH-42PM50U 6.12. Remove the SU-Board 6.13. Remove the SD-Board 1. Remove the screws (×2 1. Remove the screws (×2 2. Slide the SU-Board to the left to disconnect from a coupler 2. Slide the SD-Board to the left to disconnect from a coupler...
TH-42PM50U 6.14. Remove the SC-Board 6.16. Remove the C1-Board 1. Disconnect the couplers (SC2, SC20 and SC23). 1. Remove the flexible cables holder fastening screws (×6 2. Remove the screws (×6 ) and remove the SC-Board. 2. Disconnect the flexible cables (CB1, CB2 and CB3).
TH-42PM50U 6.18. Remove the K-Board 1. Unlock the cable clampers to free the cable. 2. Disconnect the couplers (H7 and SS34). 3. Remove the screws (×3 ) and remove the K-Board. 6.20. Remove the Speaker L, R 1. Remove the screw (×8 ) and remove the Speaker L, R.
TH-42PM50U 6.21. Remove the Plasma panel 6.22. Replace the plasma panel section from the Front frame (finished). (glass) 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel 1.
TH-42PM50U 8 Self-check Function When symptoms like “the power fails sometimes” or “sometimes there is no picture and/or sound” can not be confirmed at the time of servicing, the self-check function can be used to confirm the occurrence and to find the defective circuit.
TH-42PM50U 8.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinkes of the Power LED on the front panel of the unit.
TH-42PM50U 8.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 8.2.) 1. No lit...
TH-42PM50U 8.5. Local screen failure Plasma display may have local area failure on the screen. Fig - 1 is the possible defect P.C.B. for each local area. Fig - 1...
TH-42PM50U 9 Serviceman Mode 9.1. How to enter into Serviceman Mode While pressing [VOLUME- ] button of the main unit, press [RECALL] button of the remote control three times in a row (within 2 seconds). 9.1.1. Adjustment method..Use the remote control.
TH-42PM50U 10 Adjustment Procedure 10.1. Driver Set-up 10.1.1. Item / Preparation 1. Input an APL 100 % white signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Aspect: 16:9 10.1.2. Adjustments Adjust driver section voltages referring the panel data on the panel data label.
TH-42PM50U 10.2. Initialization Pulse Adjust 1. Input a Cross hatch signal. 2. Set the picture controls: - Picture mode: Normal White balance: Cool Adjust the indicated test point for the specified wave form. Test point Volume Level TPSC1 (SC) 15 ± 10µ Sec...
TH-42PM50U 10.3. P.C.B. (Printed Circuit Board) exchange 10.3.1. Caution 1. To remove P.C.B. , wait 1 minute after power was off for discharge from electrolysis capacitors. 10.3.2. Quick adjustment after P.C.B. exchange P.C.B. Name Test Point Voltage Volume Remarks P Board...
TH-42PM50U 11.3. Sub bright adjustment Instrument Name Connection Remarks 1. NTSC signal generator Connect to the input terminal Procedure Remarks · · · · Color balanve adjustment is finished for each signal. Picture menu : Dynamic Color balance : Normal ·...
TH-42PM50U 12.5. DV-Board Parts Location DV-BOARD THIS IS FOR REFERENCE USE ONLY. TRANSISTOR IC5003 Q5001 THIS MUST BE REPLACED WITH IC5015 Q5002 IC5016 Q5003 AN EXCHANGE BOARD ONLY. IC5017 Q5004 Q5020 DV-BOARD(FOIL SIDE) DV-BOARD(COMPONENT SIDE) TNPA3626 TNPA3626 ZA002 JK001 IC015...
POWER SOS CONTROL RECTIFIER STB_PS AC CORD POWER SUSTAIN SUSTAIN LINE VSUS RELAY RECTIFIER FACTOR VOLTAGE VOLTAGE FILTER CONTROL CONTROL RECTIFIER DATA DRIVER(LEFT) DATA DRIVER(RIGHT) Vda-67V S.R. S.R. S.R. S.R. S.R. S.R. S.R. TH-42PM50U Main Block Diagram TH-42PM50U Main Block Diagram...
TH-42PM50U 13.34. D-Board Block Diagram DIGITAL SIGNAL PROCESSOR FORMAT CONVERTER, IC9302 PLASMA AI DDR SDRAM(128M) SUB-FIELD PROCESSOR IC9300 FORMAT CONVERTER/RGB PROCESSOR PLASMA AI/SUB FIELD PROCESSOR TO C11 R 10bit CTI/TINT Video DATA 24bit(DA,DB,DC8-15) R 10bit DATA L G 10bit FORMAT...
TH-42PM50U 14.5. Mechanical Replacement Parts List Note: Ref. Part No. Part Name & Remarks Description All parts except parts mentioned [PAVCA] in the Remarks TSXL461 CABLE(DG1-H1/DG2- column are supplied by AVC-SPC. TTUA1281S REAR COVER PAVCA Parts mentioned [PAVCA] are supplied by PAVCA.
TH-42PM50U 15.2. Electrical Replacement Parts List Note: Ref. Part No. Part Name & Remarks Description All parts except parts mentioned [PAVCA] in the Remarks C2489,9 ECJ2XB1H332K C 3300PF, K, 50V column are supplied by AVC-SPC. C2497,9 ECJ2FB1E105K C 1UF, K, 25V Parts mentioned [PAVCA] are supplied by PAVCA.
