SYCLOPE TERE'O
®
Controller for swimming pools (Part 2)
Communications instructions
Reference : TER0000 - TER0010 – TER0020 - TERxxxx
Rev : 2.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TERE’O and is the answer not in the manual?

Questions and answers

Related Manuals for SYCLOPE TERE’O

Summary of Contents for SYCLOPE TERE’O

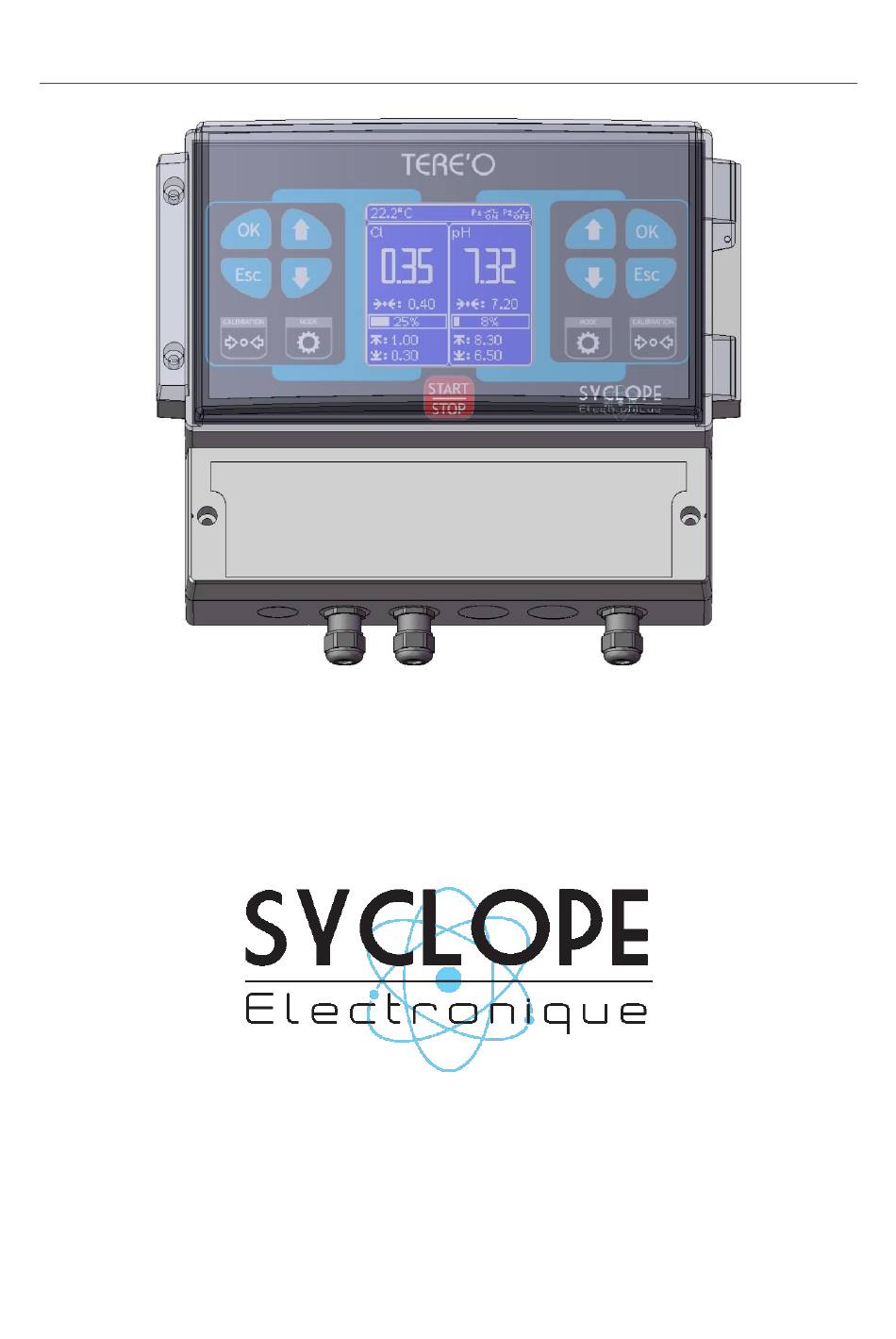

  • Page 1 SYCLOPE TERE’O ® Controller for swimming pools (Part 2) Communications instructions Reference : TER0000 - TER0010 – TER0020 - TERxxxx Rev : 2.1...
  • Page 2 Rue du Bruscos 64 230 SAUVAGNON - France – Tel : +33 (0)5 59 33 70 36 Fax : +33 (0)5 59 33 70 37 Email : syclope@syclope.fr Internet : http://www.syclope.fr © 2013-2015 by SYCLOPE Electronique S.A.S. Subject to modifications Communications instructions...

  • Page 3: Table Of Contents

    Content Page 3/28 Content Use of the document ......................5 Signs and safety symbols ....................5 Storage and transport ......................6 Packaging .......................... 6 Warranty ........................... 6 Safety and environmental instructions ................. 7 Use of the equipment ......................7 User obligations ......................... 7 Risks prevention .........................
  • Page 4 FCC rules Page 4/28 The SYCLOPE TERE’O ® controller complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation FCC Regulations state that unauthorized changes or modifications to this equipment may void the user’s authority to operate it.

  • Page 5: Use Of The Document

    Please read this entire document before starting to install, adjust or commission your device, in order to ensure the safety of swimmers, users and equipment. The information provided in this document must be strictly observed. SYCLOPE Electronique France declines all responsibility in cases where failure to comply with the instructions of this documents is observed.

  • Page 6: Storage And Transport

    Content Page 6/28 2) Storage and transport It is important to store and transport your SYCLOPE TERE’O ® in its original packaging in order to minimize risk of damage. Furthermore, the package must be stored in an environment that is protected against humidity and exposure to chemical products.

  • Page 7: Safety And Environmental Instructions

    All other uses are considered to be non-conforming and must therefore be forbidden. SYCLOPE Electronique S.A.S will not be responsible in any case for any damages that result from such uses. Any use of sensors or interfaces not-in conformity to the features defined in this handbook must also be proscribed.

  • Page 8: Identification And Localization Of The Identification Plate

    This device compiles with the Part.15 of the FCC rules. Operation is subject to the following IP65 two conditions: (1) This device may not cause harmful interference, and (2) this device must www.syclope.fr Made in France accept any interference received, including interference that may cause undesired operation Label of the manufacturer Particular risks.

  • Page 9: Disposal And Conformity

    According to European directive 2002/95/EC, this symbol means that the SYCLOPE TERE’O ® controller is designed in compliance with the restrictions on hazardous substances...

  • Page 10: Fundamental Synoptics Of Communication

    Paramétrage du TERE’O Page 10/28 III. Fundamental synoptics of communication TERE'O controllers was designed to be connected on a RS485 bus using ModBus RTU protocol or with Internet site “mysyclope.com”. Several controllers can be connected together. 1) Local connection using maintenance software “TerCom” Master ModBus Slave ModBus Slave ModBus...

  • Page 11: Internal Modem Connections

    Paramétrage du TERE’O Page 11/28 In order to connect TERE'O controller to Internet, several internal connection KIT are available. Reference Designation KMD0020 GSM/GPRS MODEM Kit with cable and local antenna KMD0040 ETHERNET MODEM Kit KMD0050 WIFI MODEM Kit with cable and local antenna IV.

  • Page 12: Data Connections

    Data connections Page 12/28 V. Data connections 1) RS485 data connection port Connection into the TERE’O must be done according below:  White : BB’ - B  Blue : AA’ - A  Black : Ground – C Controllers can be chained with respect of polarity and wired in parallel. When using the USB/RS485 converter, connection must be done as bellow: RS485 controller side USB =>...

  • Page 13: Gsm Modem Connections

    Data connections Page 13/28 2) GSM modem connections Install the socket GSM socket modem on good place. Install the antenna into the gland and connect the cable to the modem. Install the SIM card. GSM Socket MODEM SIM card Antenna cable GSM antenna The subscription must be M2M type (Machine to Machine) with minimum capacity of 1Mo/month.

  • Page 14: Ethernet Modem Connection

    Data connections Page 14/28 4) Ethernet Modem connection Install the ETHERNET socket modem on good place. Install the link wire into the gland and connect the cable to the modem as bellow. Socket MODEM ETHERNET 9 : GND 8 : Brown 7 : Brown/White 6 : Blue EI-A type connection...

  • Page 15: Rs485 Communication Port

    Programming TERE’O controller Page 15/28 2) RS485 Communication port To connect a TERE’O controller on the local BUS, you must configure the data of the RS485 communication port of the controller as well as the others with the same data. By using ...

  • Page 16: Programming Software "Tercom

    The “TerCom” Software allows you to perform maintenance and programming of TERE’O controllers by using local RS485 communication port. This software is free of charge and it can be downloaded from our website http://www.syclope.fr Programming data for the softwa Accessing keys to specific functions of the software Communication mode of the software Information about version of the connected controller.

  • Page 17: Programming Communication Port

    Programming software Page 17/28 2) Programming communication port Click on « Programming » button Local Port (Connecting by RS485 bus): - Select the Com Port used by the computer - Select the speed (Must be identical to the connected controller on the data bus) Select the parity (Must be identical to the connected controller on the data bus) Validate your configuration by pressing “Save”!

  • Page 18: General Programmation

    Programming software Page 18/28 5) General Programmation Click of the Programming button Allows to upload the configuration from the connected controller. Allows to program the connected controller with the present parameters. Allows to load a configuration file already recorded. Allows to save the present configuration file into the laptop. Calibration of the sensors is not possible with the software.

  • Page 19: Programming Internet Connection

    The other parameters to be programmed are the website address and the port number. By default, these parameters are written in the memory and must not be changed except a request of the technical service of SYCLOPE Electronique. Mode of internet remote connection must be selected with corresponding data in the windows.
  • Page 20 Programming software Page 20/28 Selecting WIFI mode: Select WIFI Modem If the Network use a DHCP … Select: “Get an IP address automatically” If the network use a static IP … Select: “Use the following IP address” … and enter: IP Address Subnet Mask Default Gateway...

  • Page 21: Maintenance

    Programming software Page 21/28 7) Maintenance “TerCom” software allows to access to the “Maintenance” module where all data are displayed in real time (If connected!). This button appears when the screen is opened. It allows to start the test of remote maintenance.

  • Page 22: Access To The Data Web Site Mysyclope.com

    Serial number of the TERE’O controller,  Name of your I.T. responsible,  Indicate his email. I.T. service of SYCLOPE registers the controller in the data base, activates your account and gives you the Username. Connect to the web site www.mysyclope.com with your browser.
  • Page 23 Site web Page 23/28 Click on « Systems » bar in the « Main menu » windows… Read the connected sites or connected controllers. Data from the controllers are now available for consulting. Communications instructions...

  • Page 24: Modbus Communication Registers

    ModBus communication registers Page 24/28 VIII. ModBus communication registers Name Register Format Size R/W Description 0: pH 0-14 1:Redox 2:Br 2ppm Type of channel E1 40013 uint 3:Br 10ppm 4:Cl 2ppm 5:Cl 10ppm Low alarm threshold E1 40014 float High alam threshold E1 40016 float 0: Stop...
  • Page 25 Certificat CE Page 25/28 Communications instructions...
  • Page 26 Notes Page 26/28 NOTES Communications instructions...
  • Page 27 Notes Page 27/28 Communications instructions...
  • Page 28 SYCLOPE Electronique S.A. Z.I. Aéropole Pyrénées 64 230 SAUVAGNON Tel : (33) 05 59 33 70 36 Fax : (33) 05 59 33 70 37 Email : service-technique@syclope.fr © 2013-2015 by SYCLOPE Electronique S.A. Sous réserve de modifications.
