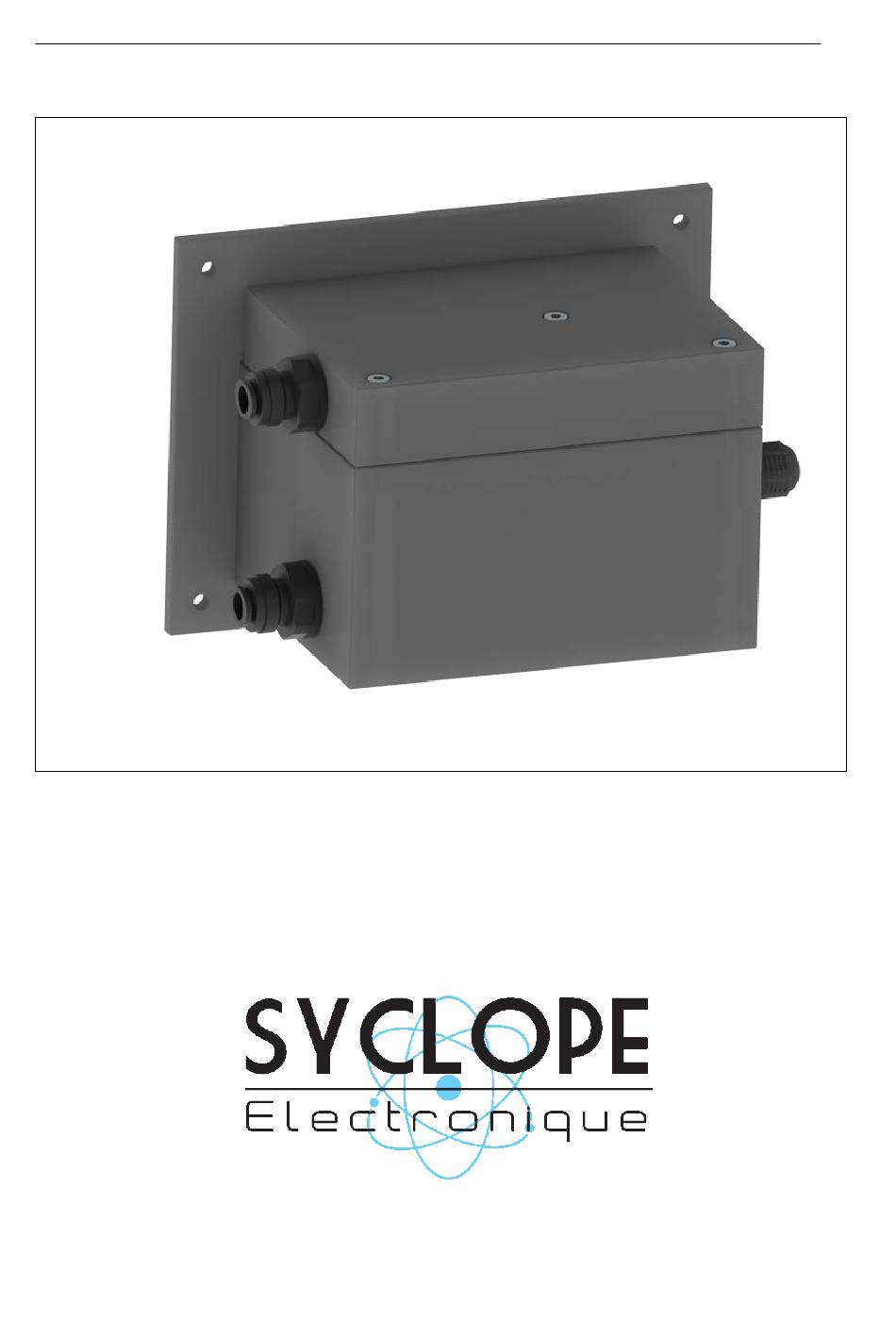

TUR BI P OOL P rim ary ” On line Turbidity probe for swimming-pools “ ® Installation, commissioning and maintenance instructions Reference : TUR 20x0 Rev :1.01...
Control of the end of the filter backwash cycle ..............14 Calibration procedure ......................15 VII. Maintenance procedure .....................15 Procedure for opening and closing the probe for maintenance operations ......15 Identification of error currents ..................19 Installation, commissioning and maintenance instructions SYCLOPE « TUR BI P OOL P rim ary ® »...
SYCLOPE Electronic S.A.S., either at the agency or office in your region, or the technical / quality services of our institutions. We will do everything necessary to help you and make you benefit from our advice and our know-how in the field of measurement and treatment of swimming pool water.
Informations given in this document should be scrupulously followed. SYCLOPE Electronique S.A.S cannot be held responsible for any failure to follow the instructions in this document.
Generalities Page 6/24 4) Storage and transport Storage and transportation of the SYCLOPE TURBIPOOL P rim ary ® turbidity probe must be carried out in its original packaging to prevent potential damage. The set should be stored in protected environment from moisture and protected from sun and chemical exposures.
Power supply range Limitation of dangerous substances Maximum current value CE compliant Protection class of the case Native country Manufacturer identification Manufacturer’s square code Nameplate Installation, commissioning and maintenance instructions SYCLOPE « TUR BI P OOL P rim ary ® »...
In accordance with the regulations in force, consumers in the European Union are required, from this date, to return their old equipment to the manufacturer who will take care of their disposal without any charge. According to the European Directive 2011/65/EU, this symbol indicates that the SYCLOPE TURBIPOOL P rim ary ®...
Internal measurement system fault (Factory return) 3,8 mA Low offset measurement out of limits 22,5 mA High value measurement out of range of probe Installation, commissioning and maintenance instructions SYCLOPE « TUR BI P OOL P rim ary ® »...
Installation and wiring Page 11/24 IV. Installation and wiring 1) Installation conditions To ensure the safety of the users and to ensure the correct operation of the SYCLOPE TURBIPOOL P rim ary ® turbidity probe, please observe the following installation instructions: ...
In all cases, the 8x5mm tubing diameter must not be changed! The sampling flow-rate must be constant and can be set by one of the SYCLOPE series housing chamber containing a micrometric adjustment device.
• An air intake in the filtration pump(s) circuit. The turbidity probe must be installed before the measuring probe-housing and before a pre- filter if it is present. « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
A solenoid valve solution can be implemented so that the control condition is made after a user-defined time to control the end of the backwash cycle. « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
If necessary, the offset and the slope of the probe must be externally adjusted using the associated SYCLOPE device. If it is impossible to use the calibration procedures, refer to the maintenance section of this manual.
Page 16
WARNING : Do not touch the circular surface of the borosilicate glass tub! Risks to deposit greasy particles from your fingers on the walls of the glass causing a drift of the probe’s zero point! « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
Page 17
Reassembling the bottom O-ring seal and the borosilicate glass tub Proceed reassembling the bottom O-ring seal and place it in its inner imprint using the 3mm screwdriver... « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
Page 18
If the zero value (small offset) is not automatically achieved, resume the maintenance procedure and try to understand the reasons of the malfunction! (Check the current error value to identify the origin of the fault ...) « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
Of course, an interpretation of the result must be performed by the user in order to diagnose the possible reasons of the malfunction. To perform this test, the probe must normally be connected to the SYCLOPE device and connected to the sampling circuit.
Page 20
Notes Page 20/24 « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
Page 21
Notes Page 21/24 NOTES « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
Page 22
Notes Page 22/24 « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
Page 23
Page 23/24 « TURBI P OOL P rim ary » Installation, commissioning and maintenance instructions SYCLOPE ®...
