6. Refer to Figure 3-2. Fasten the two support braces #16 onto the platform #17 at point "A" & onto the main frame #9
at point "B" with the 1/2 X 1" bolts and nuts. Platform stops #18 can be bolted to the end of the Platform #17 if
required. Tighten all bolts securely.

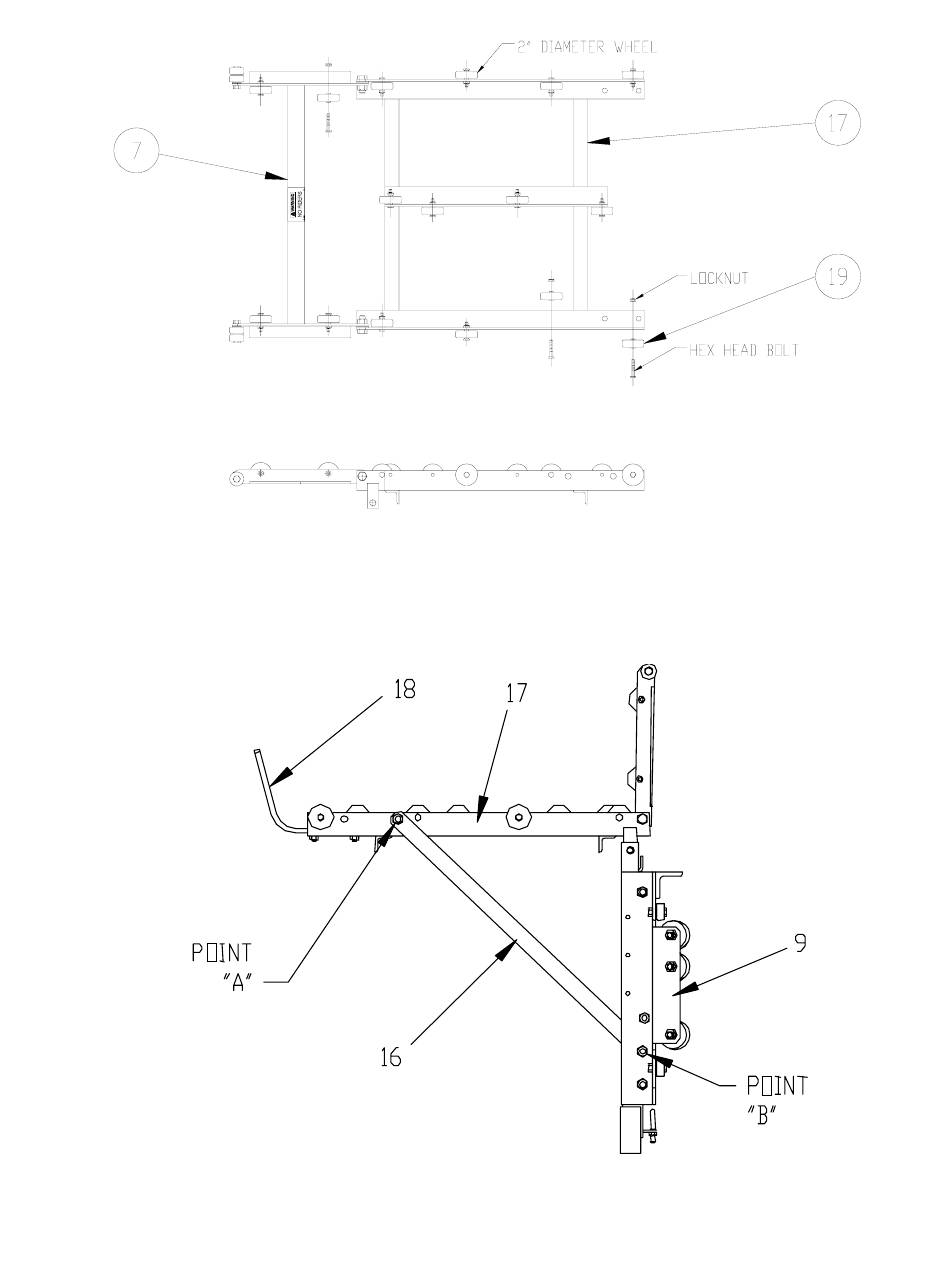

Figure 3-1.

Platform Wheel Placement Guide

Figure 3-2.

Platform Assembly
