3.8.3
Roller Angle Guide
Refer to Figure 3-7. The roller angle guide fits onto hooks provided on the #1 top bracket. It is equipped with conveyor
wheels to carry and store material away from the platform discharge on shallow inclines.

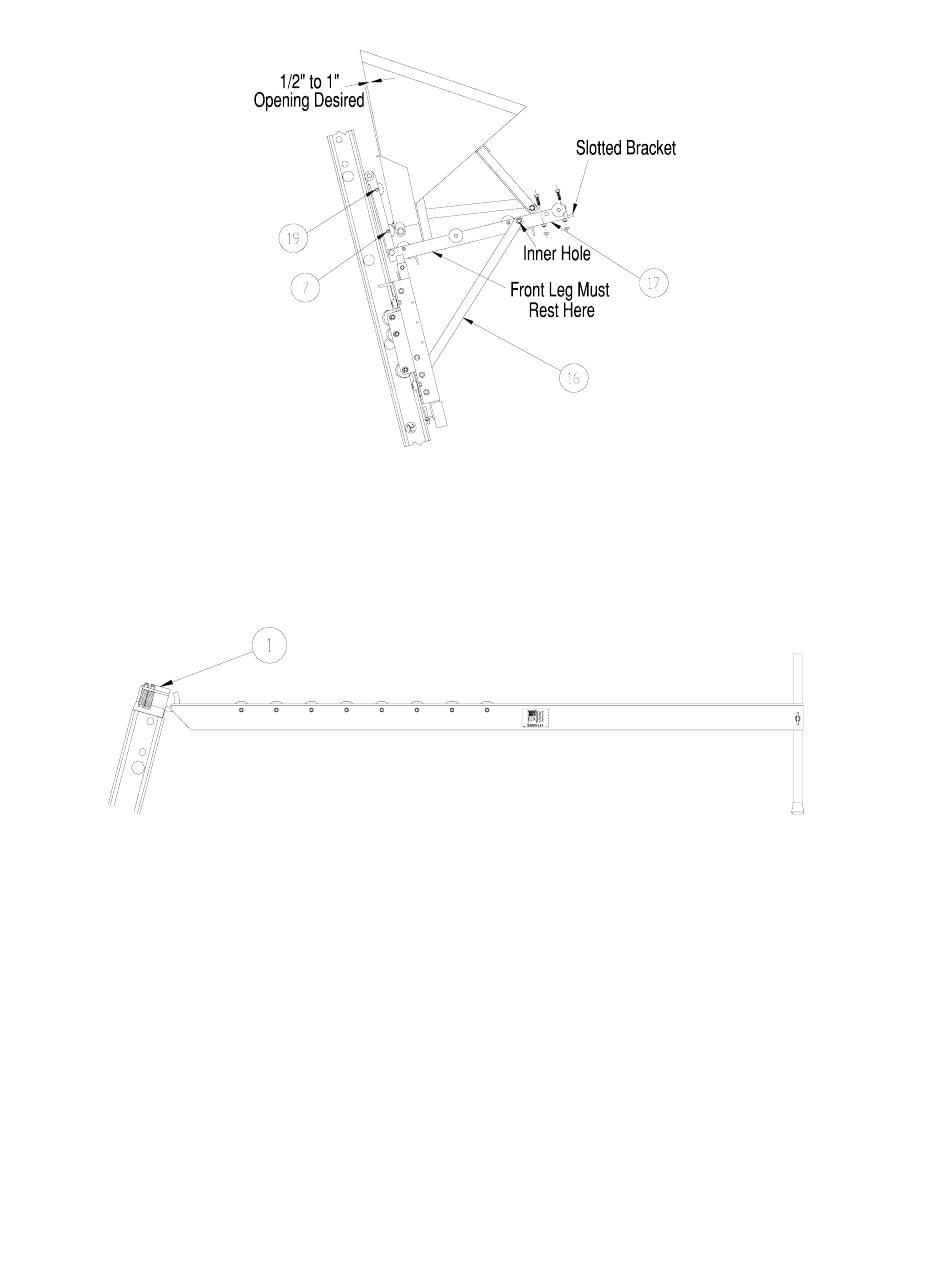

Figure 3-6.
Gravel Hopper Assembly
Figure 3-7.
Roller Angle Guide Assembly
