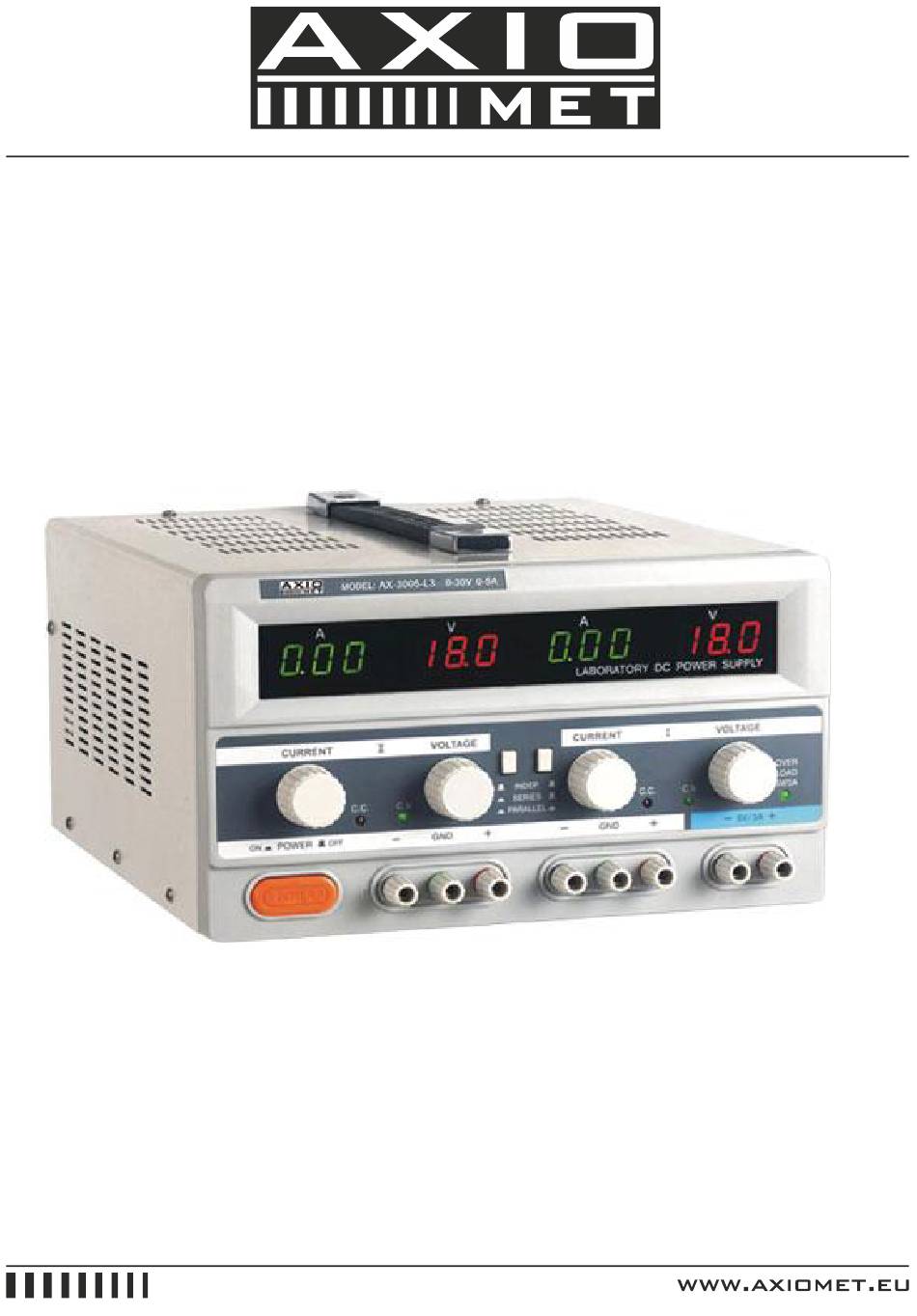

- Page 1 DC POWER SUPPLY AX-3003L-3 AX-3005L-3 Users manual...
-
Page 2: Technical Specification
This series includes two-way and three-way DC regulated power supply. Three-way have high accuracy output, of which two way are adjustable and one way is fixed. The two adjustable outputs can be selected for constant voltage (C.V.) or constant current (C.C.), designed in high stability and performance circuit. -
Page 3: Operation
1.4.2 Relative humidity: less than 90% 360mm×265mm×165mm 1.5 Size: 1.6 Operating time: 8 hours continuously 2. OPERATION 2.1 Controls and description of front-panel (1) Meter or LED: indicates master output voltage and current value. (4) Meter or LED: indicates slave output voltage and current value. (5) Slave constant voltage adjustment: adjust slave output voltage value. - Page 4 2.2 Operating procedure: 2.2.1 Independence use of two adjustable outputs. 2.2.1.1 Set the (13) and (14) switch to spring out position ( position). 2.2.1.2 When the adjustable output is used as C.V. output, first should rotate clockwise the C.C. adjustment (6) and (22) to Max, then turn on power switch (7), adjust C.V. adjustment (5) and (23) till slave &...
- Page 5 2.2.2.3 When the two outputs are in series, the output voltage is controlled by master output, but current adjustment of two outputs is still independent. Therefore, attention should be paid to the position of the C.C. adjustment (6). For example, knob (6) is at the position of counterclockwise to end or current of slave output excesses current-limiting protection point, at this time, the voltage of slave output will not track the voltage of master.
