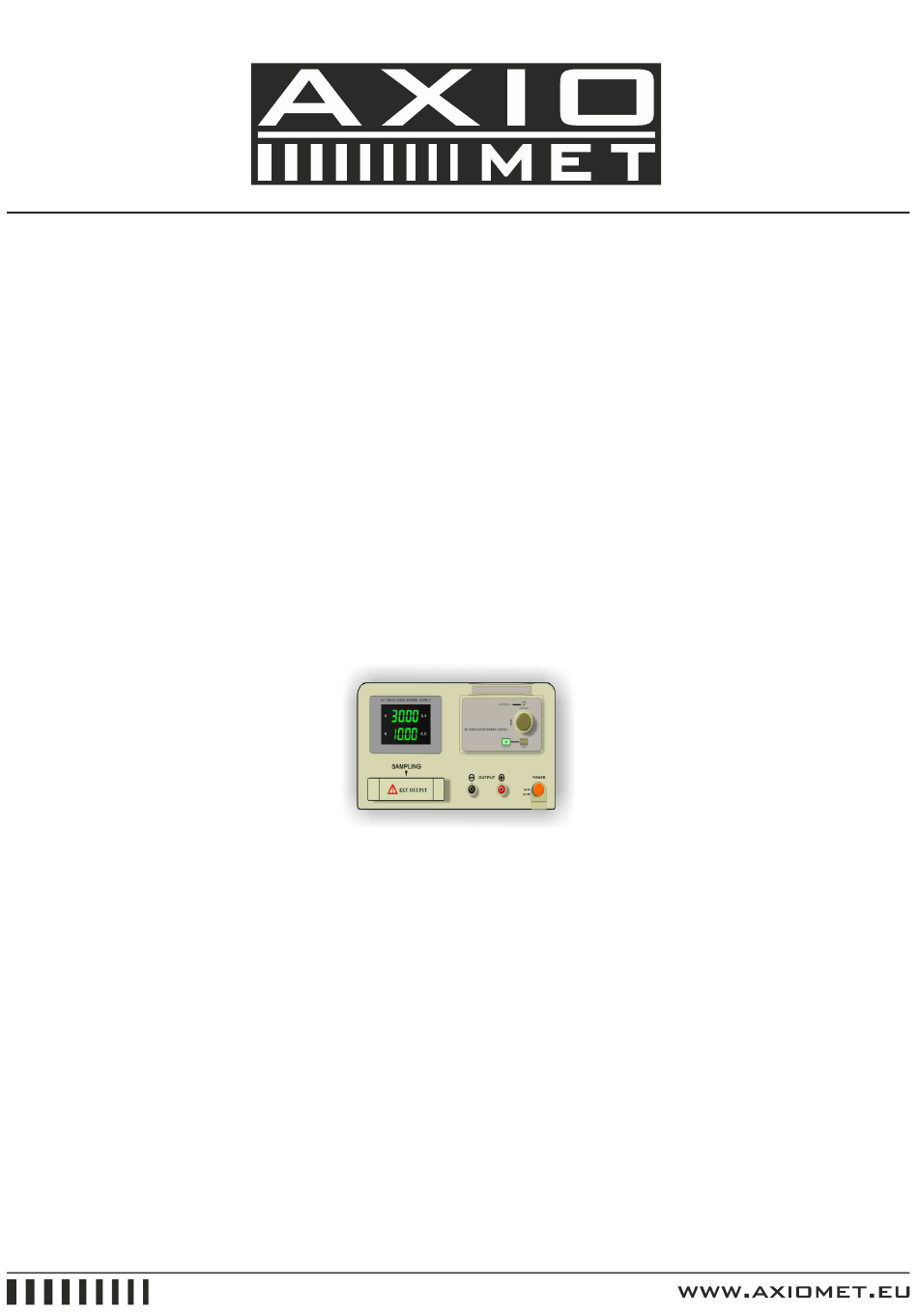

- Page 1 Single output DC bendh power supplies with large digital display AX-3020L Instruction Manual...
- Page 2 1. Specification Model AX-3020L AC 220V 50Hz INPUT PARAMETERS 0 ~ 30V OUTPUT VOLTAGE 0~20A CURRENT OUTPUT 10mV 10mA DISPLAY 1mV rms RIPPLE & NOISE 265 x 140 x 360mm DIMENSIONS 12kg ~ 20kg WEIGHT 2. Front panel details...
-
Page 3: Operating Instructions
Figure 1 Voltage indication Curretn indication +S outupt port –S output port – Output port + Output port – Output terminal + Output terminal Power switch 10. Output light 11. Output switch 12. Voltage adjustment knob 13. Current adjustment pot 14. - Page 4 The sampling terminals are not often used. Use them under the following conditions: If the load has a distance from the power supply, the sampling terminals may be used to compensate for the inherent when using voltage drop a longer power line. Sampling connection diagram: Figure 2 Attention: Disconnect the installed S- &...
