CONNECTIONS

Connections are made to the screw terminals under the lid of the PC-Logger
3150. Note that VO is unfused and should not be loaded more than the mains
adaptor is able to supply and never more than 500mA.

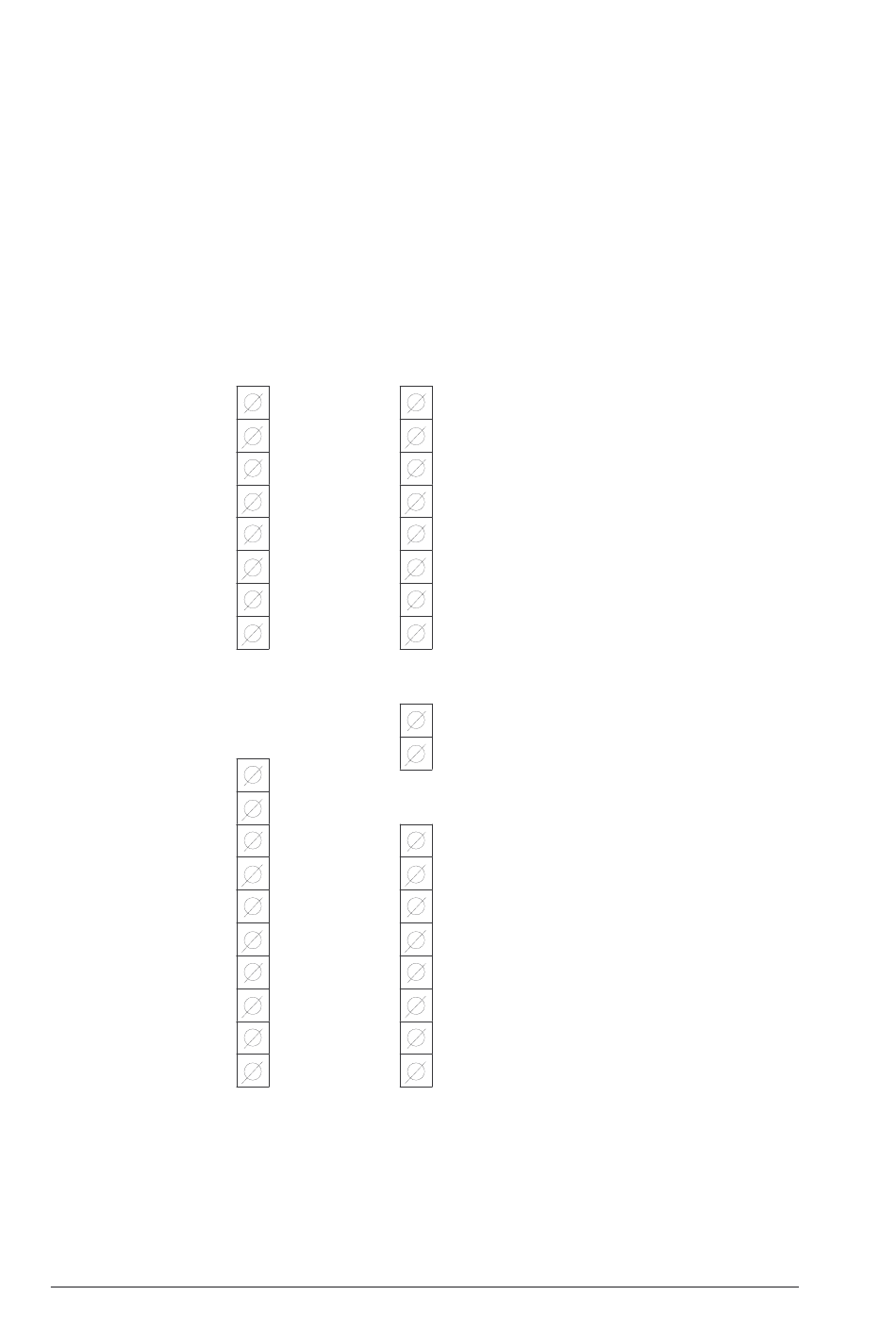

Terminal configuration is shown in the illustration below.
DO 4b
DO 4a
DO 3b
DO 3a
DO 2b
DO 2a
DO 1b
DO 1a
GND
GND
P6
P5
P4
P3
P2
P1
Vp
Vp
34
DI 8b
DI 8a
DI 7b
DI 7a
DI 6b
DI 6a
DI 5b
DI 5a
VO
GND
DI 4b
DI 4a
DI 3b
DI 3a
DI 2b
DI 2a
DI 1b
DI 1a
INTAB Interface-Teknik AB
DO = Digital Output
DI = Digital Input
P = Pulse Input
Vo = Auxiliary Power (for DI)
Vp = Auxiliary Power (for P)
