Page 1: Table Of Contents

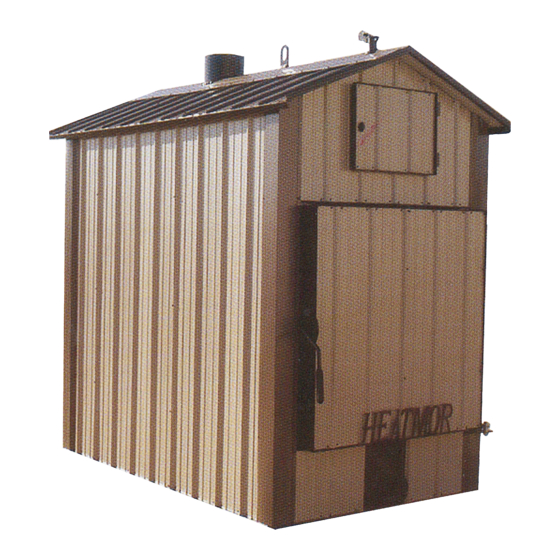

TABLE OF CONTENTS Page No. Specifications Bladder Fire Door Air Supply Anti-Rollout Device and Ash Auger Tube Supply Line and Return Line Threaded Connectors Low Water Cutoff Outer Door Site Preparation Specifications Pad Specifications Wiring Diagram Updated: 07/10/12... - Page 2 600 CSS STAinLESS STEEL OuTDOOR FuRnACE INSTALLATION SHOULD BE PERFORMED BY A QUALIFIED INSTALLER AND WILL COMPLY WITH ALL THE REQUIREMENTS OF THE AUTHORITY HAVING JURISDICTION OVER THE INSTALLATION. READ THROUGH THE ENTIRE OPERATORS AND MAINTENANCE MANUAL AND THIS SUPPLEMENT BEFORE OPERATING YOUR HEATMOR STAINLESS STEEL OUTDOOR FURNACE MODEL 600 CSS.
-
Page 3: Specifications
600 CSS FuRnACE SPECiFiCATiOnS Specifications Model 600 CSS Overall Width (inches) Base Width (inches) (Footprint) Overall Height (inches) (With chimney) Overall Length (inches) Base Length (inches)(Footprint) Total weight (lbs.) 2800 (Without Water) Water Capacity (uS. Gal.) 150 secondary Forced Draft (C.F.m.) - Page 4 600 CSS FuRnACE SPECiFiCATiOnS (COnTinuED) Warranty –Corrosion Limited LiFETimE Warranty (includes total unit) uL 2523 - 2009 Approvals Test Standards CSA-B366.1-11 Hookup Location Back Total Heat Extraction area sq.ft Type of Fuel WOOD OnLY Electrical Supply 115 Volts, 60HZ...
-
Page 5: Bladder
2) Filling the bladder with water 3) maintenance of the bladder The Model 600 CSS bladder should be approximately ¾ full at normal operating temperatures. Removal and Replacement of the Bladder Do not attempt replacement unless furnace water temperature is less than 100°F (38°C) 1) Turn off the bladder gate valve located behind the top front access door. -
Page 6: Fire Door
Fire Door Principles of the Fire Door The Model 600 CSS fire door is water cooled to prevent warping of the door. It also absorbs heat from the fire and transfers heat to the water, adding a heat-exchanging surface. Because it is water cooled, the outer surface will never be hotter than the water in the furnace. - Page 7 There are two major parts that make up the fire door of the Model 600 CSS, the door water jacket and the door-mounting frame. The water jacket is mounted to the door frame with three one inch threaded studs and held in place with two jamb nuts and two washers on each stud.
- Page 8 Fire Door Chain The fire door chain prevents the outer door of the Model 600 CSS from swinging open uncontrollably. It is recommended to install a post to the side of the furnace, to secure the outer door from opening or closing during loading and maintenance procedures.
-
Page 9: Air Supply
The air delivery of the model 600 CSS is different than the residential models because it supplies air to two areas of the fire. The primary air is supplied under the fire and is responsible for creating smoke and getting the temperature above 500°F. -
Page 10: Anti-Rollout Device And Ash Auger Tube
Secondary Air Box Operation The Secondary Airbox is located along the rear, interior, firebox wall. it is a means to direct air from the secondary combustion air blower to the upper area of the firebox. This is how smoke from the fire can be ignited. -
Page 11: Supply Line And Return Line Threaded Connectors
There are two 1.5” Supply line and two 1.5” Return line threaded connectors (female nPT) located at the back of the Model 600 CSS. A brass nipple should be used to connect any fittings to the threaded spuds. Refer to the “Supply Line and Return Line Threaded Connectors”... -
Page 12: Site Preparation Specifications
Site Preparation Specifications – model 600 Updated: 07/10/12... -
Page 13: Pad Specifications
Pad Specifications – model 600 Notes: 1. Pad sizes are shed base dimensions plus 3 inches in width and 2 inches in length. 2. Pad thickness must be at least 4 inches but not more than 12 inches. 3. All measurements are in inches. Updated: 07/10/12...
