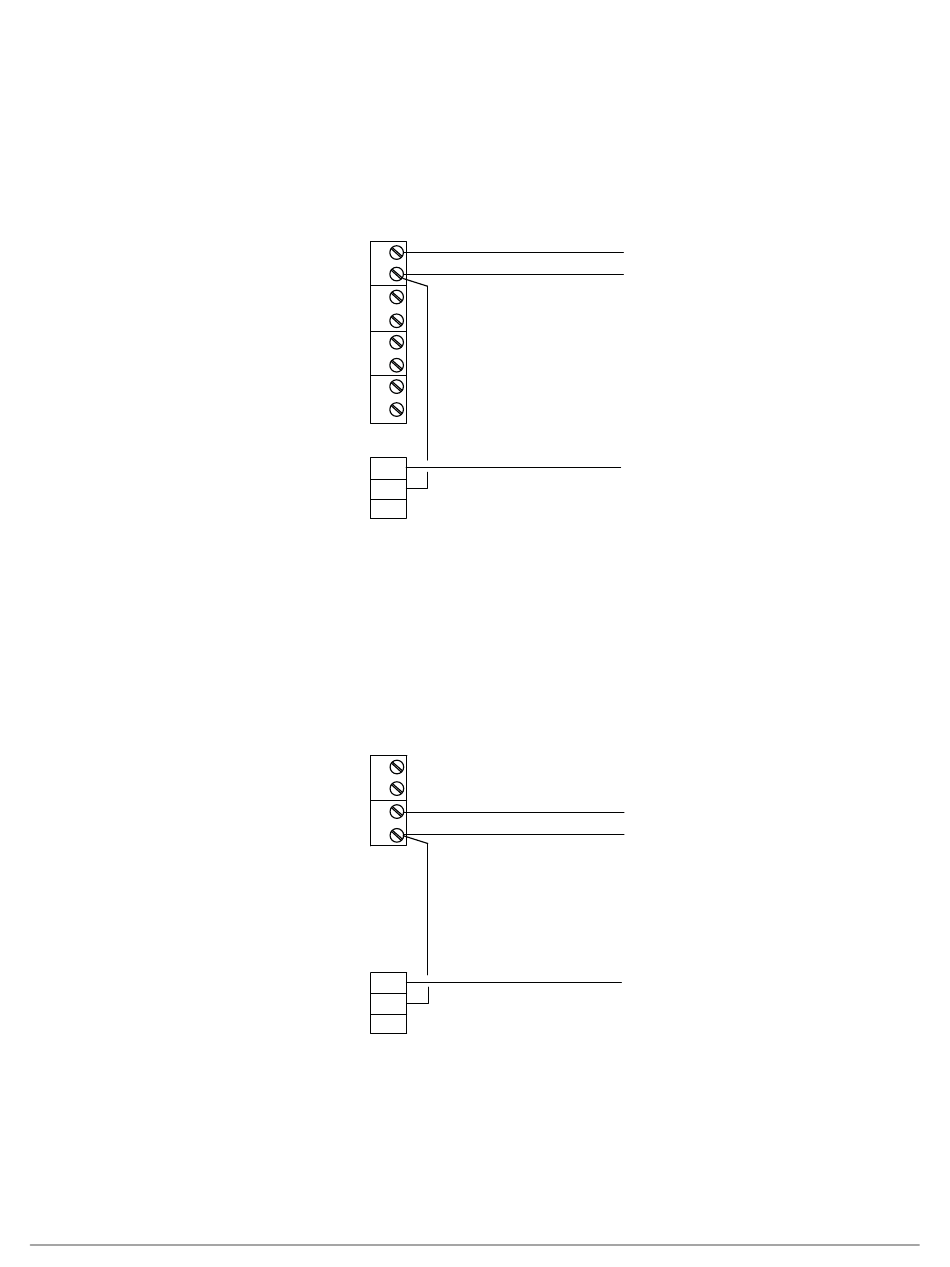

At the Celeris Pneumatic or Low-Speed Electric, or LON TP/SO Controller
• FSR power wire terminates on TB4, Terminal 1 (L1)
• FSR signal "+" wire terminates on TB1, Terminals 1, 3 or 5 (+)
• FSR circuit common wire terminates on TB1, Terminals 2, 4 or 6 (-)
A jumper wire must be added between the circuit common termination and TB4, Terminal 2 (L2)
NOTE:
Celeris pneumatic, or low-speed electric, or LON TP/SO: any available UI (1, 2 or 3)
At the LON TX controller
• FSR power wire terminates on TB4, Terminal 1 (L1)
• FSR signal "+" wire terminates on TB1, Terminals 1, 3 or 5 (+) or TB8, Terminals 1 or 3 (+)
• FSR circuit common wire terminates on TB1, Terminals 2, 4 or 6 (-) or TB8, Terminals 2 or 4 (-)
A jumper wire must be added between the circuit common termination and TB4, Terminal 2 (L2).
NOTE:
LON TX: any available UI (see LON TP/SO for 1, 2 or 3; see below for 4 or 5)
8
12—F
S
K
OF
AN
TATIC RESET
IT
TB1
WHITE (SIGNAL)
+ 1
UI1
BLACK (CIRCUIT COMMON)
- 2
+
3
UI2
- 4
+
5
JUMPER WIRE
UI3
- 6
+ 7
DI1
- 8
TB4
RED (POWER)
L1
L2
GND
TB1
+
UI4
-
WHITE (SIGNAL)
+
UI5
BLACK (CIRCUIT COMMON)
-
JUMPER WIRE
TB4
RED (POWER)
L1
L2
GND
MKT-0266
MPC-1480
©2010 Phoenix Controls Specifications subject to change without notice. Rev. 5/10
