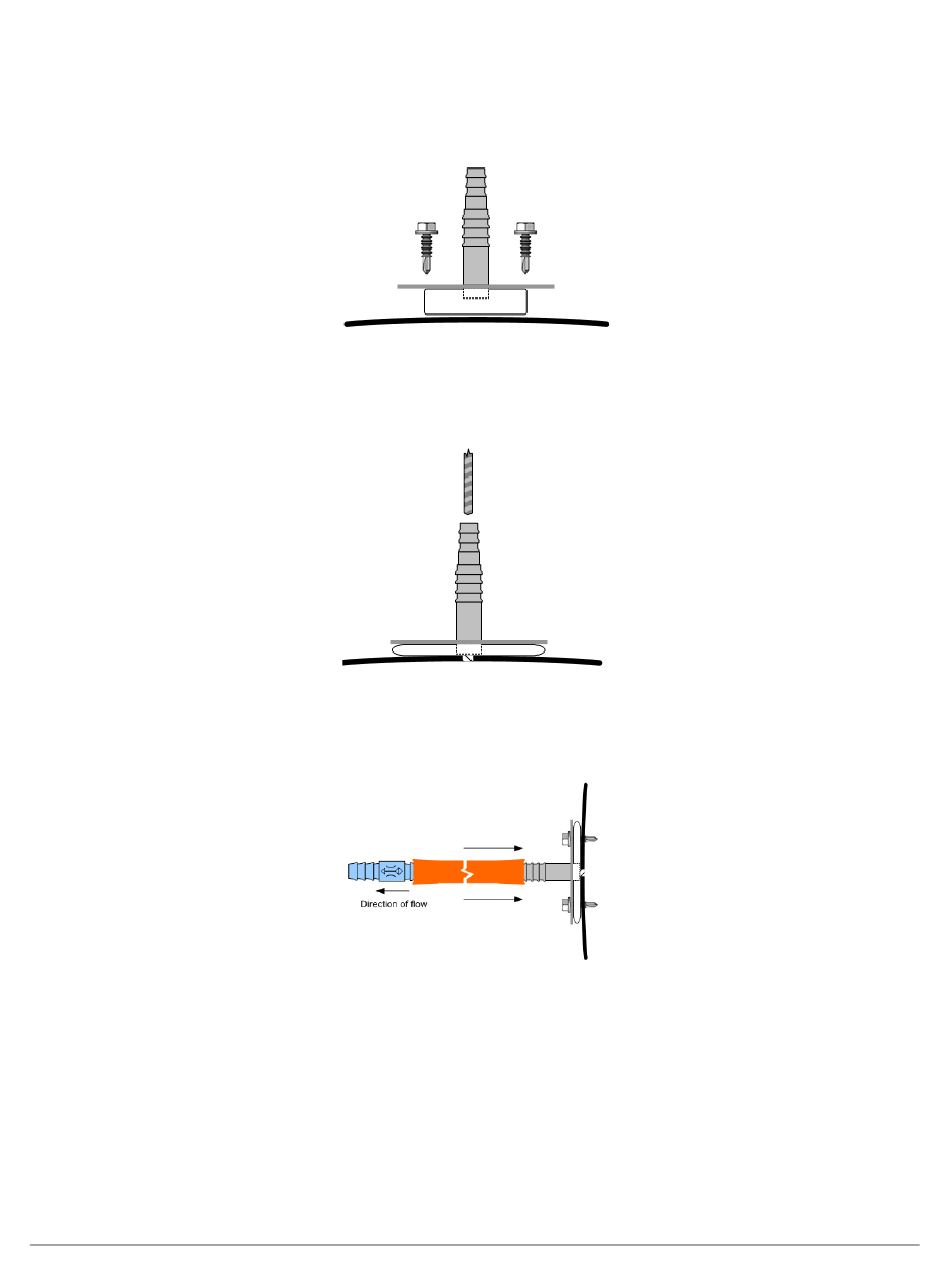

2. Using 4 of the Zip screws (included) attach first one, then the other pressure pickup to the duct compressing the gasket evenly
top and bottom.
Be careful not to over-tighten the screws and deform the plate or strip the mounting holes.
NOTE:
We recommend tightening to no more then 12 in.-lb. (1.35 Newton-meters).
3. Next, using the pressure pickup barb as a guide, drill a hole between 5/64" (.078"/1.98 mm) and 7/64" (.109"/2.77 mm) in
the duct wall.
Use care so as not to damage the barb with the drill bit.
WARNING:
4. Attach the short length of silicon tube containing the pressure damper, to the pressure pickup barb.
Make certain that the pressure damper is oriented in the proper direction (arrow pointing AWAY from the pickup) as
NOTE:
it is not bi-directional.
5. Connect one end of the longer piece of silicon tubing to the pressure damper.
