Summary of Contents for Trox Technik JS

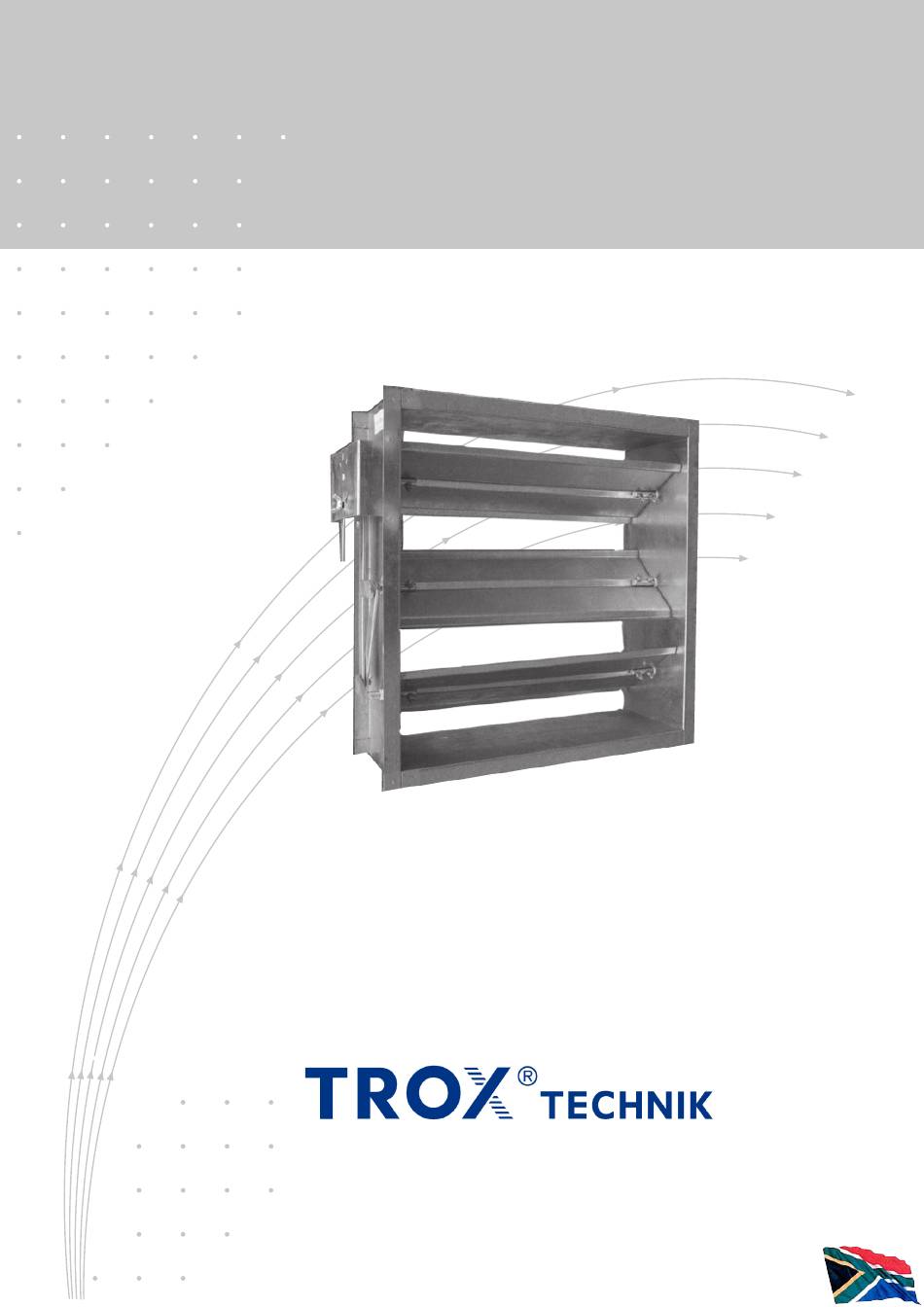

- Page 1 SA5/14/EN/1 Multi-Leaf Damper Type JS TROX (South Africa) (Pty) Ltd. Tel. +27 (0)33 398 1006 10 Wigford Road Fax. +27 (0)33 398 1100 Masons Mill email : pmb@troxsa.co.za Pietermaritzburg Website: www.troxsa.co.za...
- Page 2 Description Description Construction & Installation Order Details The Multi-leaf damper is used primarily for volume control. Drive arm is made from galvanised steel. (An extended spindle It consists of a formed channel section frame, containing can be supplied as an option for use by the client. However, linked single skin formed blades, which can be arranged for this is standard when the damper is supplied with an electric or either opposed or parallel operation.
- Page 3 Construction & Installation Where the B and H dimensions are greater than 1200, 2 damp- Configuration 1: The actuator can be fitted by others on site. ers will be supplied for installation side by side or one above the other. They may be installed either with or without a masonary Configuration 2: Acuator can be fitted by others on site, where subframe.
- Page 4 ? = actuator to be specified Operating Options: Q = Not Motorised E = Electric Actuator 0 = Motor Free Issue Right Hand Standard Order Example: Make: TROX Type : JS - B - E / R / LM230A / 400 X 600...
