Model Aero Polaris EX Manual page 12

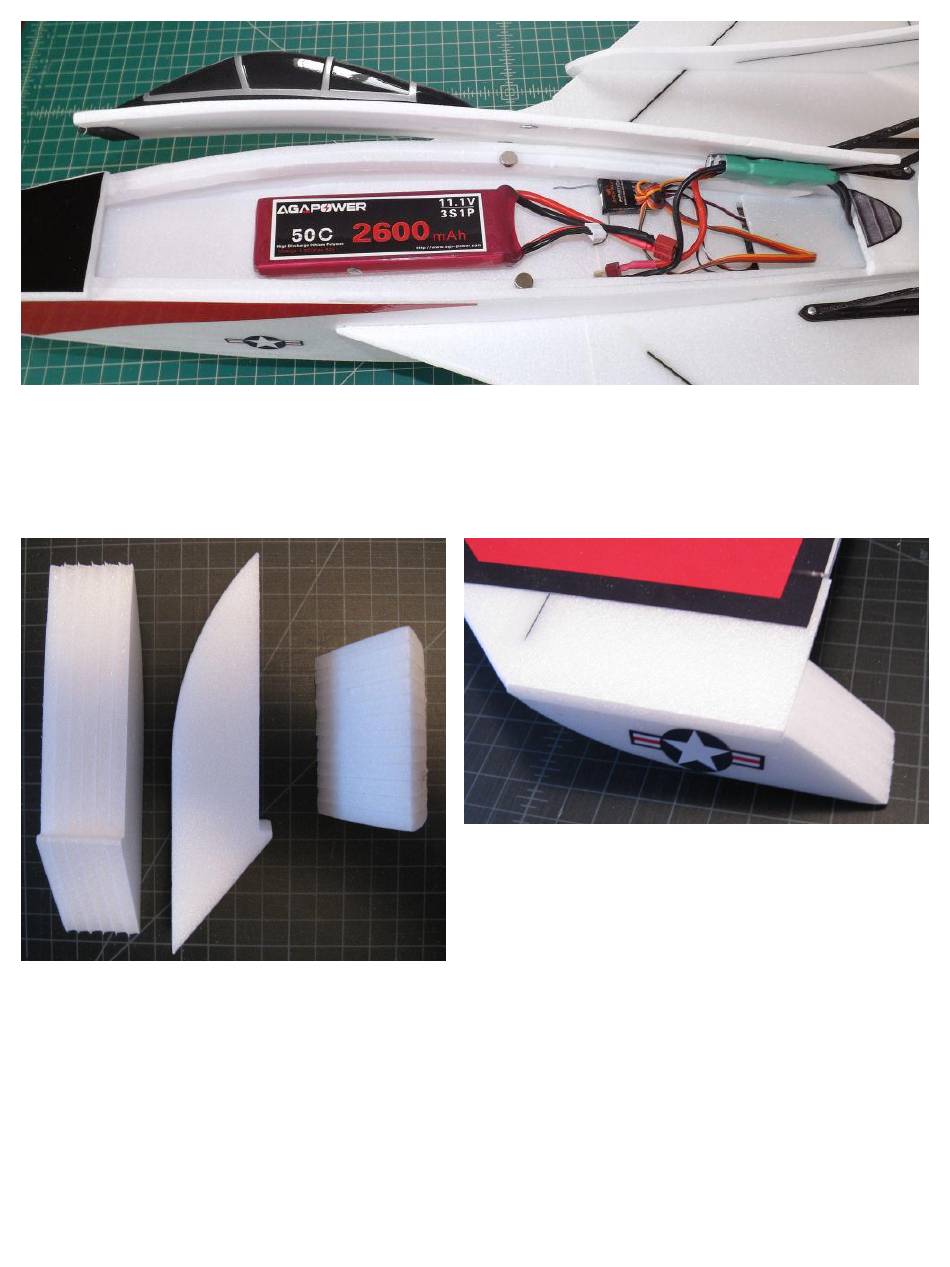

Note that we have attached the heat sink to the ESC and mounted the assembly to the top of the
fuselage. It is recommended that you seal up the ESC/heat sink with glue or silicone to prevent
water from entering. The battery location will vary depending on the battery size and power system
used. Adjust the battery location to achieve the correct CG.
Photo at left shows the tip floats and nose
pieces laminated using Foam Tac adhesive.
There are 5 pieces for each tip float and 10
pieces for the nose. Sand the tip floats smooth
and attach them flush with the wing tip.
