Model Aero Polaris EX Manual page 10

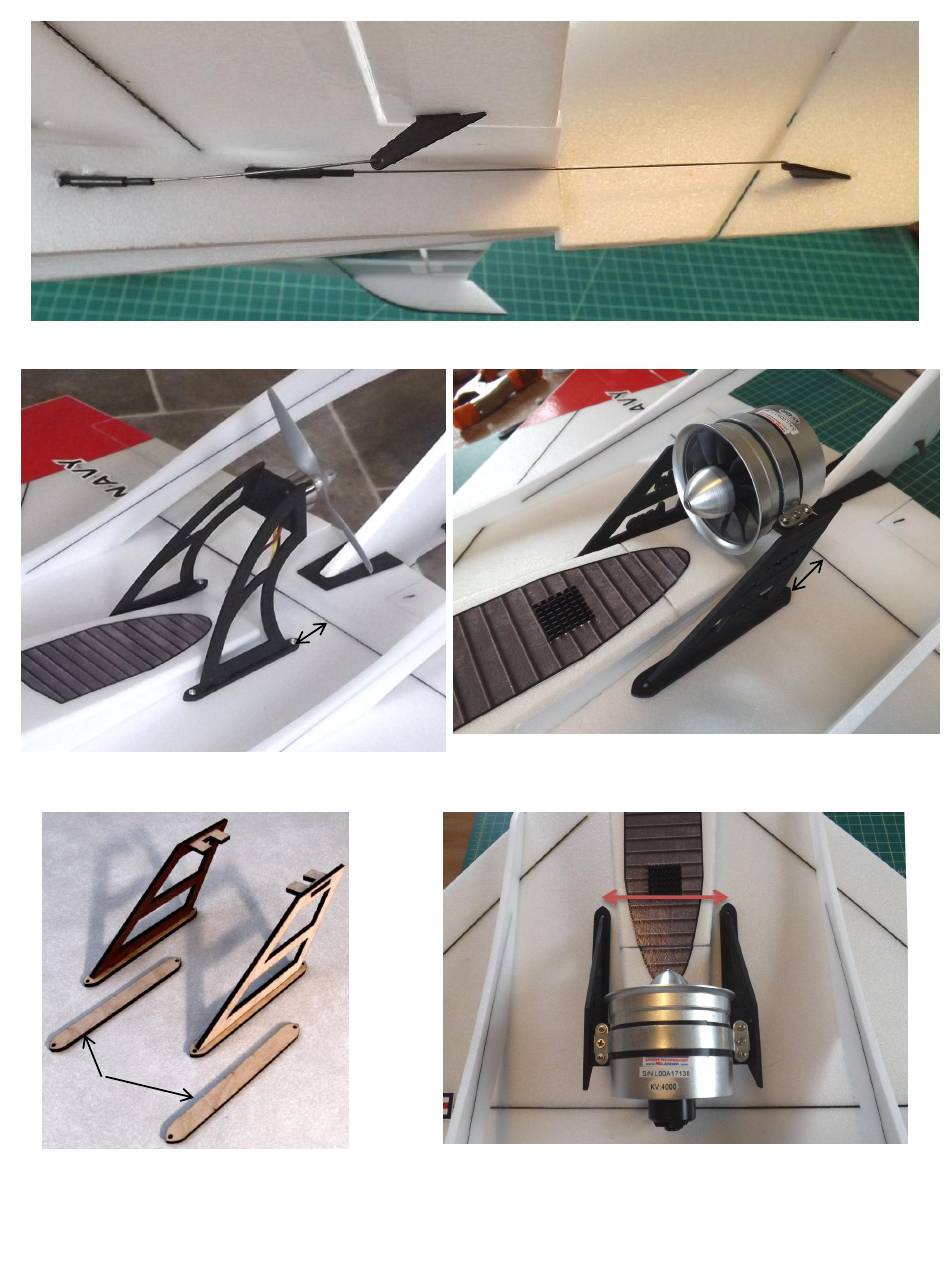

This photo shows the aileron and rudder push rods exiting the fuselage.
Photos above show the two power options, EDF or prop. The spacing and location of the wood
mounts are the same. Pay careful attention to the measurements.
Backer pieces
go under wing
We recommend epoxy for assembling the mounts. The wood strips are backer pieces that
go under the wing. Use the supplied screws to attach the mount to the wing. The mounts
should be 4" apart (on center) and 1.5" from the wing spar (see upper left photo). We use
servo mounting screws to attach the EDF or motor.
1.5" from spar
1.5" from spar
4"
