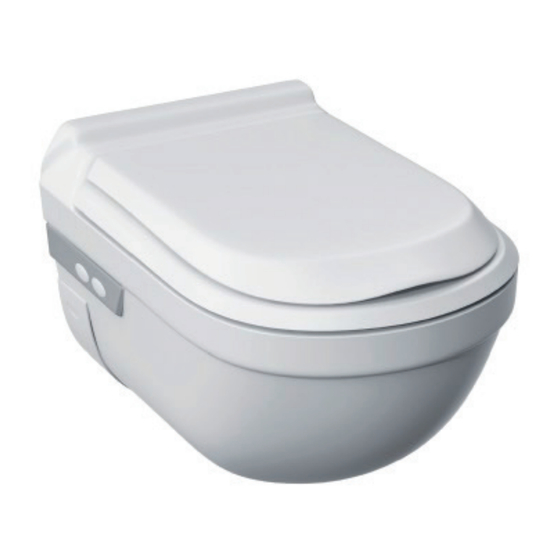

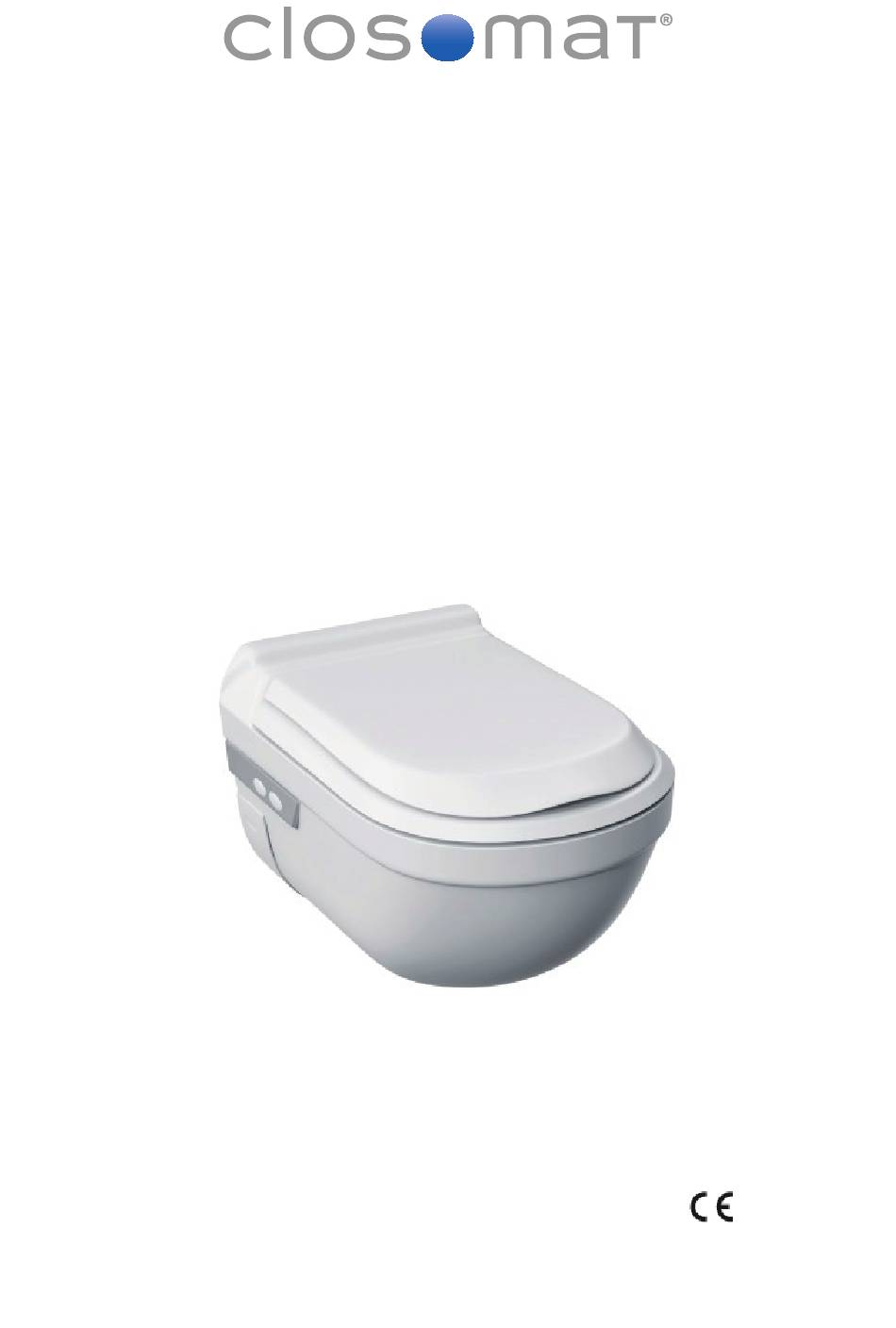

- Page 1 THE ORIGINAL SHOWER TOILET THE ORIGINAL SHOWER TOILET ® CLOSOMAT Asana OPERATING INSTRUCTIONS SWISS MADE...
- Page 3 DEAR CUSTOMER Thank you for deciding on the CLOSOMAT, the The different functions rely on an integrated original shower toilet since 1957. The Asana system of technical components which have model is the latest development by our been deliberately generously dimensioned in...
- Page 4 Gives you important information. Draws attention to a possible danger.
-
Page 5: Table Of Contents
CONTENTS DESCRIPTION OF ASANA SUMMARY OF OPERATING INSTRUCTIONS FOR STANDARD FUNCTIONS USE AS A NORMAL WC CLOSOMAT READY TO OPERATE ODOUR EXTRACTION SHOWER FUNCTION Bidet function 6.1.1 Boost bidet function jet Lady shower Wellness programme WARM AIR DRYING SOFT-CLOSE SEAT AND LID... -
Page 6: Description Of Asana
1. DESCRIPTION OF SHOWER TOILET... - Page 7 Raised front left-hand push-button * Seat lid (main button): “Bidet function” and “Stop shower/warm air” Seat Recessed back left-hand push-button *: Porcelain bowl “Lady shower” and “Stop shower/warm air” Bowl casing Raised front right-hand push-button *: Orientation/operating light “Boost jet” and “Stop odour extraction” Hinges Recessed back right-hand push-button *: “Reduce jet”...
- Page 8 NAME PLATE The name plate is located on the left-hand side of the unit below the porcelain rim. It gives the following details: THE ORIGINAL SHOWER TOILET Type: Asana No.: 15.00099.1506 AC 230V 50 Hz 1100 W 4.5 A 22 June, 2015 Boiler: 1.4 l...
-
Page 9: Summary Of Operating Instructions For Standard Functions
2. SUMMARY OF OPERATING INSTRUCTIONS FOR STANDARD FUNCTIONS Desired function Action Standard WC flush Press push-button in standing position Odour extraction Starts automatically when you sit down Stop odour extraction Touch the front push-button with your left hand Bidet function Touch the front push-button or keep it pressed in seated position Boost jet... -
Page 10: Use As A Normal Wc
(more than about 5 days), it is recommended that the unit is switched off. As soon as the unit is switched on, a short initialisation programme runs during which CLOSOMAT must not be used, and the orientation light (blue) and operating light (yellow) flash. -
Page 11: Shower Function
6. SHOWER FUNCTION 6.1. BIDET FUNCTION After a bowel movement, don’t reach for toilet paper, simply remain seated upright. After activating the bidet function push-button, the shower spray arm extends and the shower system is activated. When the shower spray arm has reached the right position, the shower process starts with a gentle shower jet. -
Page 12: Boost Bidet Function Jet
If you wish to change the pre-set showering time, this can be done as follows (setting range from 15 - 45 sec.): whilst the bidet function is on (hold push-button pressed in), press both push-buttons (front and rear) simultaneously with your left hand (Photo D) and keep them pressed in. -
Page 13: Lady Shower
6.2 LADY-SHOWER Please make sure that you are sitting far enough back. After activating the lady-shower push-button (Photo H), the shower spray arm extends and the shower system is activated. When the shower nozzle has reached the lady-shower position, the shower process starts with a gentle shower jet. - Page 14 The wellness functions are similarly not available for the lady-shower setting. • After surgery or if you have open wounds, the CLOSOMAT – shower should be avoided until healing is sufficiently well advanced. Where there are medical reasons for avoiding moisture, ensure that you are clean and dry, for instance by using toilet paper.
-
Page 15: Wellness Programme
If you wish to change the pre-set shower time, the process is as follows (setting range from 15 - 45 sec.): whilst the lady-shower is on (hold push-button pressed in), press both push-buttons (front and rear) simultaneously with your left hand (Photo M) and keep them pressed in. -
Page 16: Warm Air Drying
As the CLOSOMAT can be used to stimulate the bowels, to prevent soiling of the open warm air nozzle, the drying process should be stopped immediately in such circumstances! -
Page 17: Soft-Close Seat And Lid
(Photo Q). This tried and tested special maintenance-free design from CLOSOMAT provides end-position cushioning, but allows the seat and lid to be lifted and easily closed again absolutely without resistance. -
Page 18: Boiler Economy Setting
10. BOILER ECONOMY SETTING Normally CLOSOMAT keeps the shower water in the well-insulated boiler always available at the right temperature. If the economy setting is activated, the boiler only starts to heat up when you sit down. It then takes five minutes for water to reach body temperature and be available. -
Page 19: Wireless Remote Control (Optional)
12. WIRELESS REMOTE CONTROL (OPTIONAL) The Asana remote control makes use of 4 big buttons with the same functions as the push-buttons on the toilet. This means that you will quickly master its intuitive logic without having to read endless instructions. -
Page 20: Care And Cleaning
13. CARE AND CLEANING CLOSOMAT should be cleaned by hand like a conventional toilet. The WARNING bowl is made of high-quality sanitaryware porcelain and should be cleaned with products that contain no bleach. Similarly, for the stainless Wear gloves during cleaning work, steel heads of the shower and warm water nozzles. -
Page 21: Warm Air Jet
13.2 WARM AIR NOZZLE The inside of the warm air nozzle stays clean due to its enclosed storage WARNING position. Care must be taken to ensure that the warm air function is Under circumstances always switched off during normal use. If the air nozzle has to be activate flushing the WC when removed for cleaning purposes, please follow the instructions below: the warm air nozzle is open or... -
Page 22: Seat And Lid / Casing
13.3 SEAT AND LID / CASING (PHOTO W) The whole seat unit (seat, lid and hinges) can be easily removed with a single action. The seat and lid, made of CFC-free polyurethane foam, are covered with a high-quality dual-component enamel. These shiny surfaces, and the pan casing must be wiped only with soft damp cloths or sponges and cleaned with diluted general-purpose household cleaning agents. -
Page 23: Function Test/Demonstration
14. FUNCTION TEST / DEMONSTRATION A function test is recommended after the toilet has been out of use for some time, or after thorough cleaning. Switch the unit off at the main Check the storage position of the switch, and on again after 30 seconds. This will trigger a short shower nozzle (which is flush with initialisation programme, during which the WC must not be used. -
Page 24: Maintenance And Servicing
15. MAINTENANCE AND SERVICING First one basic rule: the more frequently and regularly the CLOSOMAT is used, the more reliably it will work. Long periods out of use can cause damage, as for all other household equipment operated with water. - Page 25 DeDicateD customer support line: 0800 374 076.
-
Page 26: Tips And Hints For Problem-Solving
16. TIPS AND HINTS FOR PROBLEM-SOLVING - Normal WC flushing is not working: call our - No odour extraction function: call our service department; 0800 374 076. service department; 0800 374 076. - Insufficient flushing water: check flush opening - No shower function: call our service department; below the flushing rim and if appropriate 0800 374 076. - Page 27 DeDicateD customer support line: 0800 374 076.
-
Page 28: Important Information
17. IMPORTANT INFORMATION It is essential to follow the instructions below to ensure the safe use of the CLOSOMAT Asana, as well as guaranteeing its long serviceable life: 17.1 IMPORTANT FOR SAFE USE - Ensure you are correctly seated for the shower... -
Page 29: Important For Care And Maintenance
- Check regularly whether the shower nozzle is - Apart from the inside of the bowl, the in the correct storage position – relative to the CLOSOMAT may not be cleaned with “running” connecting head it must neither project nor lie water. -
Page 30: Technical Data And Information
18. TECHNICAL DATA AND INFORMATION Electrical data Water system Nominal voltage: 230 V (50 Hz) The WC flushing and shower system are Rating: 10 A, earth and circuit-breaker, completely separate from one another. Cold Nominal power: 1100 W water connection only required. (Water heating: 700 W;... - Page 32 This factor, and the variety of equipment options available, may result in descriptions not corresponding to the current equipment version in all details. CLOSOMAT® has been the protected trademark of the world’s first shower-toilet since 1957.
