Quick Start Guide
VXP Series
VXP 15HP (-WH)
1600 Watt 15" PowerDual Powered Sound Reinforcement Loudspeaker with
Integrated LAB GRUPPEN IDEEA Class-D Amplifi cation
VXP 12 (-WH)/VXP 8 (-WH)/VXP 6 (-WH)
1600 Watt 12"/8"/6" Dual Concentric Powered Sound Reinforcement Loudspeaker with
Integrated LAB GRUPPEN IDEEA Class-D Amplifi cation
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tannoy VXP Series
Summary of Contents for Tannoy VXP Series

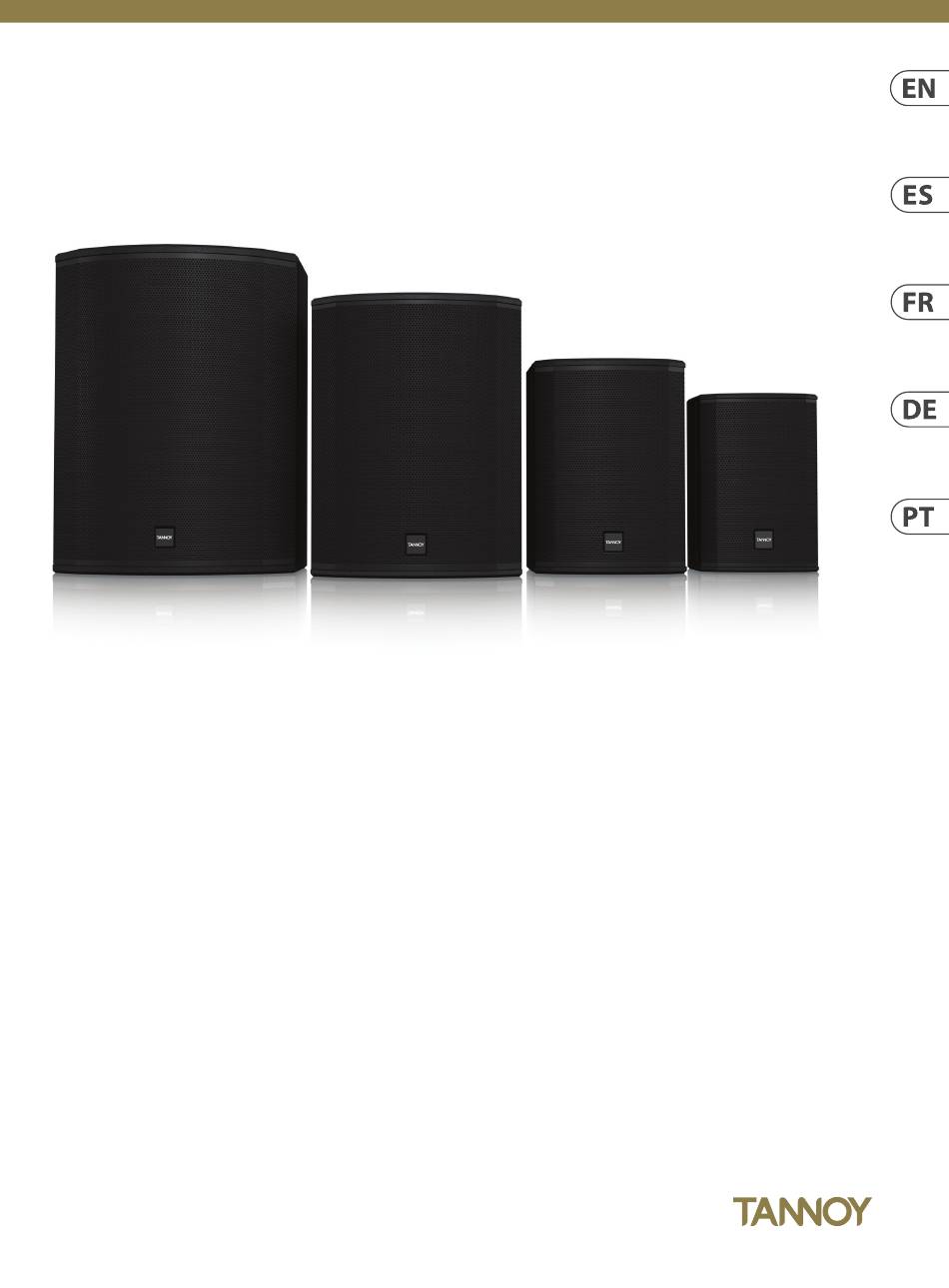

- Page 1 Quick Start Guide VXP Series VXP 15HP (-WH) 1600 Watt 15" PowerDual Powered Sound Reinforcement Loudspeaker with Integrated LAB GRUPPEN IDEEA Class-D Amplifi cation VXP 12 (-WH)/VXP 8 (-WH)/VXP 6 (-WH) 1600 Watt 12"/8"/6" Dual Concentric Powered Sound Reinforcement Loudspeaker with...
-
Page 2: Legal Disclaimer
únicamente or table specified by the por cualquier daño o pérdida que pudiera sufrir 11. Use únicamente los dispositivos o accesorios LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, por un técnico cualificado. manufacturer, or sold with cualquier persona por confiar total o parcialmente... -
Page 3: Garantie Limitée
électriques. informations peuvent faire l’ o bjet de modifications Um eine Gefährdung durch Stromschlag Standvorrichtungen, chariots, des diables, LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, sans notification. Toutes les marques appartiennent à auszuschließen, darf die Geräteabdeckung Attention Stative, Halter oder Tische, des présentoirs, des pieds... -
Page 4: Instruções De Segurança Importantes
MIDAS, KLARK TEKNIK, LAB GRUPPEN, equipamento. Por favor leia o manual de instruções. tripé, suporte, ou mesa LAKE, TANNOY, TURBOSOUND, TC ELECTRONIC, Atenção especificados pelo TC HELICON, BEHRINGER, BUGERA e COOLAUDIO fabricante ou vendidos De forma a diminuir o risco de choque são marcas ou marcas registradas do MUSIC Tribe... -
Page 5: Operation
(5) LEVEL control sets the output volume using a recessed potentiometer. The VXP Series gain structure is designed to allow a low-level source device to drive the loudspeaker to full output. Maximum specifi ed SPL will be achieved with a 4 dBu input signal. There is suffi cient headroom in the signal path to accommodate input levels of 10 or even 20 dBu, with high quality compression engaged as (6) LED INDICATORS display the power status, signal status, and the status of the built-in speaker protection limiter (see “LED Functions”... -
Page 6: Technical Specifications
Neutrik powerCON 20A† Neutrik powerCON 20A† Controls As shown in the above diagram, one of the VXP Series loudspeakers is inverted to achieve the optimum splay angle. The grille can be simply removed from this cabinet Level Recessed potentiometer Recessed potentiometer... - Page 7 MUSIC Tribe Authorized Fulfi ller for VTH pole mount 1 x Integrip carrying handles VTH pole mount your country listed under “Support” at tannoy.com. Should Blanking plate for optional your country not be listed, please check if your problem VTH pole mount can be dealt with by our “Online Support”...
-
Page 8: Federal Communications Commission Compliance Information
VXP Series Quick Start Guide FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION VXP 15HP (-WH)/VXP 12 (-WH)/ VXP 8 (-WH)/VXP 6 (-WH) Responsible Party Name: MUSIC Tribe Brands UK Ltd. Address: Klark Industrial Park, Walter Nash Road, Kidderminster, Worcestershire, DY11 7HJ United Kingdom...
