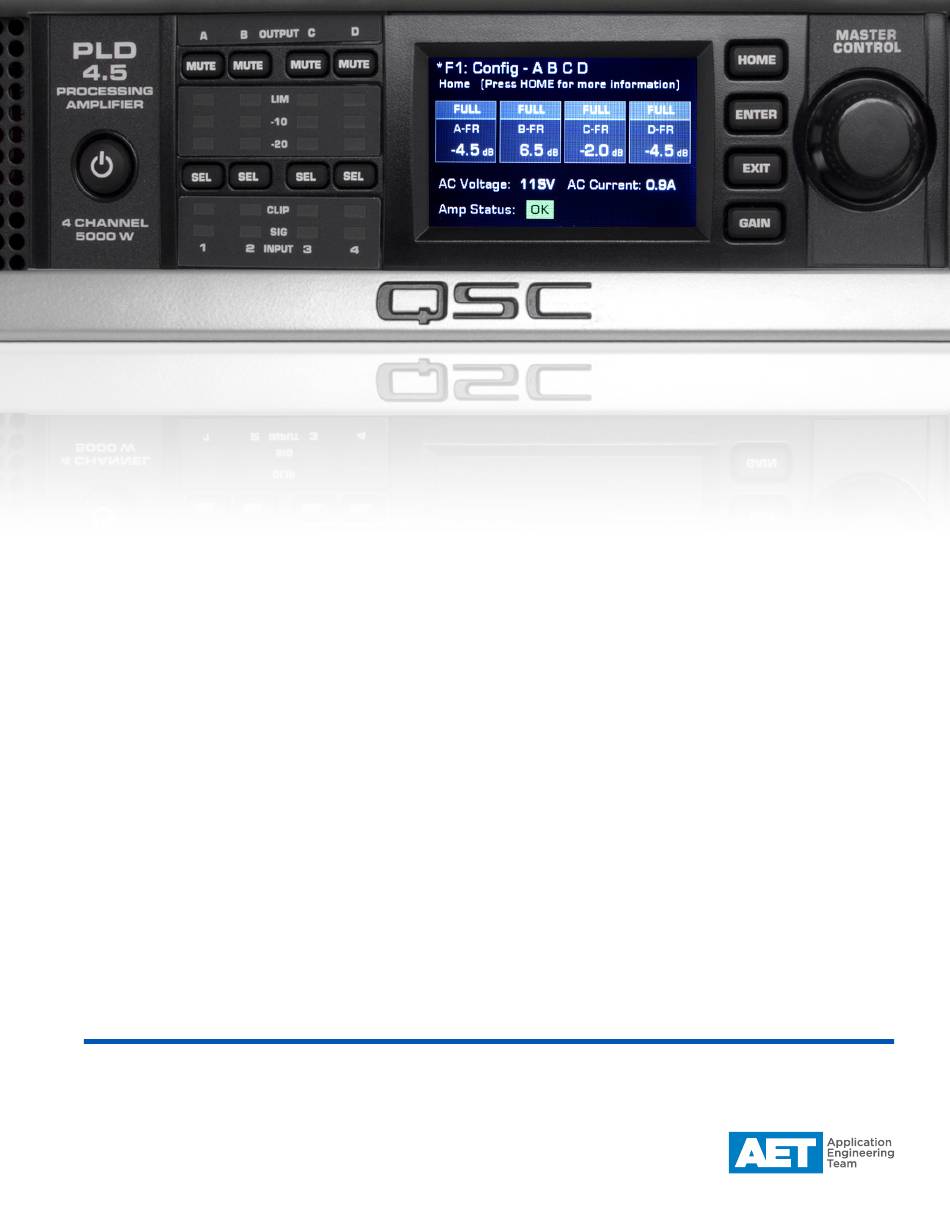

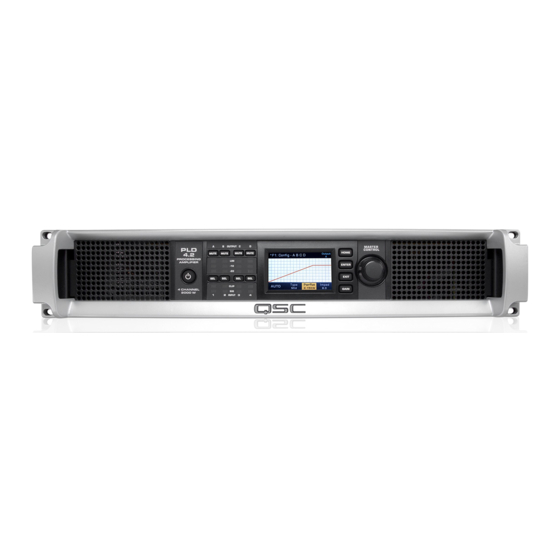

PLD Series Power Amplifier
Application Guide
for Portable PA
www.qsc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLD Series and is the answer not in the manual?

Questions and answers

Related Manuals for QSC PLD Series

Summary of Contents for QSC PLD Series

  • Page 1 PLD Series Power Amplifier Application Guide for Portable PA www.qsc.com...
  • Page 2 Address QSC Audio Products., LLC. 1675 MacArthur Boulevard Costa Mesa, CA 92626-1468 Main Switchboard Tel: (800) 854-4079 (US and Canada) Tel: +1 (714) 754-6175 Fax: +1 (714) 754-6174 E-Mail: info@qscaudio.com Application Engineering E-Mail: AET_team@qsc.com QSC Audio Products LLC Application Engineering Team...

  • Page 3: Table Of Contents

    Application: Stereo bi-amp mains ........................................36 Application: Stereo bi-amp tops and mono subs, with two monitors on one mix ........................37 Application: Stereo bi-amp tops and subs ......................................38 3. PLD Series Specifications ....................................39 PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...
  • Page 4 Copyright © 2015 by QSC Audio Products, LLC. Allrights reserved. QSC is a trademark of QSC Audio Products, LLC, registered in the U.S. and other countries. Felxible Amplifier Summing Technology, Intrinsic Correction, and Amplifier Navigator are trademarks of QSC Audio Prod- ucts, LLC.

  • Page 5: Introduction

    20 or 30 years ago. The PLD Series amplifiers from QSC take it all a few steps further while adding such versatile features as digital signal pro- cessing, Flexible Amplifier Summing Technology™ (FAST), and particularly high power and channel density.

  • Page 6: Pld: A New Paradigm

    3 RU or 4 RU models. But imagine, with PLD you could now have those same eight channels of ampli- fication—with up to 2000 watts each—in only four rack spaces, with a total weight of only 44 pounds. QSC Audio Products LLC Application Engineering Team...
  • Page 7 Built-in processing An ample amount of digital signal processing (DSP) is built into the PLD Series amplifiers. The DSP serves a dual purpose: first is to manage the operation of the amp—by controlling the functions of the power supply, the protection systems, the fan speed, signal routing and mixing—and the second is to execute the necessary loudspeaker and system processing that...
  • Page 8 Physical layout The PLD Series feature a neat, organized layout of the rear panel connectors and master power switch. The four XLR inputs feature male loop-through connectors to allow easy daisy-chaining of input signals. There are six NL4 Speakon con- nectors, including two that are exclusively used for bridged mono operation, that offer connections for all possible individu- al, parallel, or bridged arrangements of amp channels.

  • Page 9: Electrical Power

    AC mains or from portable power—i.e., a generator. Power amplifiers are by far the biggest consumers of electri- cal power in an audio system, and through the PLD Series’s significant advances in power factor, efficiency, and universal voltage capability, the constraints presented by available power just aren’t as limiting any more. With PLD, your system can produce more audio power for a given amount of available AC, in more places and in more applications, than before possible.
  • Page 10 This practically eliminates any significant harmonic currents and voltage waveform distortion, and reduces current peaks as well. In its class of professional power amplifiers, only the PLD Series from QSC offers power factor correction in any models. QSC Audio Products LLC...
  • Page 11 Efficiency PLD Series power amps are kind to the AC mains in another important way: electrical efficiency, or the ratio of output power to the power drawn from the AC mains. The dynamic nature of audio and its frequency range spanning some ten octaves has always made it very difficult to achive very good efficiency in power amps.

  • Page 12: Fast (Flexible Amplifier Summing Technology™)

    You just can’t do this with any other amp. You can’t do this without QSC’s FAST, which keeps paralleled amp channels matched and synchronized precisely so they do not blow each other up when they’re connected together.
  • Page 13 In PLD amplifiers, this technique can be used for driving extremely low load impedances of 1 to 2Ω. PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...
  • Page 14 Arranging four voltage sources in a combined series-parallel arrangement doubles both available voltage and current. In PLD amplifiers, this is suitable for harnessing the power of all four channels to drive high-power loads of 4 to 8Ω. QSC Audio Products LLC Application Engineering Team...

  • Page 15: Amplifier Navigator

    Amplifier Navigator™ QSC’s exclusive Amplifier Navigator™ software is a versatile utility for configuring, and managing PLD Series amplifiers. It connects to the amplifier via a USB cable (included with the amplifier); and with a USB hub, a single computer can connect to multiple (as many as 20) amplifiers at the same time.

  • Page 16: Presets

    Suitable for two high-power 4–8Ω (or higher) full-range loudspeak- er loads. Channels A and B bridged; channels Input 1 goes to the bridged channels A and B; Input 3 goes to the C and D bridged bridged channels C and D. QSC Audio Products LLC Application Engineering Team...
  • Page 17 Channel C’s signal is from input 1 and D’s is from input 2. These parameters are only a starting point; you can alter any of them and save the configuration into a user preset. PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...
  • Page 18 1.5 kHz. The signal source is Input 2. 2–4Ω HF These parameters are only a starting point; you can alter any of them and save the configuration into a user preset. QSC Audio Products LLC Application Engineering Team...
  • Page 19 2–4Ω worth low-pass filter at 80 Hz. subwoofer These parameters are only a starting point; you can alter any of them and save the configuration into a user preset. PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 20: Real-World Applications With Pld

    200 to 400 watts PLD4.2 single channel Medium power 4Ω 400 to 800 watts PLD4.3 single channel 8Ω 400 to 800 watts PLD4.3 single channel High power 4Ω 800 to 1600 watts PLD4.5 single channel QSC Audio Products LLC Application Engineering Team...

  • Page 21: Application: Stereo Passive Tops And Subs

    120 V / 230 V spaces Total watts Weight Old paradigm Two medium-power ~8 A / ~4 A 1200 ~80 lb two-channel amps New paradigm PLD4.2 4.6 A / 2.3 A 2000 18.5 lb PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 22: Application: Stereo Passive Mains With Two Monitor Mixes

    120 V / 230 V spaces Total watts Weight Old paradigm Two medium-power ~8 A / ~4 A 1200 ~80 lb two-channel amps New paradigm PLD4.2 4.6 A / 2.3A 2000 18.5 lb QSC Audio Products LLC Application Engineering Team...

  • Page 23: Application: Stereo Passive Tops And Subs With Two Monitor Mixes

    Total watts Weight Old paradigm Two medium-power ~11 A / ~5.5 A 1650 ~80 lb two-channel amps New paradigm Two PLD4.2 9.4 A / 4.7 A 5000 37 lb PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 24: Application: Mono Passive Tops And Subs With Two Monitors On One Mix

    Total watts Weight Old paradigm Two low-power two-chan- ~11 A / ~5.5 A 2800 ~140 lb nel amps + high-power two-channel amp New paradigm PLD4.2 4.7 A / 2.3 A 2600 18.5 lb QSC Audio Products LLC Application Engineering Team...

  • Page 25: Application: Stereo Full-Range Mains With Four Monitor Mixes

    Two low-power two-chan- ~12.5 A / ~6.2 A 7 3100 ~140 lb nel amps + high-power two-channel amp New paradigm Two PLD4.2 9.3 A / 4.6 A 5000 37 lb PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 26: Application: Stereo Passive Tops And Subs With Two Monitor Mixes

    Weight Old paradigm Two low-power two-chan- ~12.5 A / ~6.2 A 7 3100 ~140 lb nel amps + high-power two-channel amp New paradigm Two PLD4.2 9.3 A / 4.6 A 5000 37 lb QSC Audio Products LLC Application Engineering Team...

  • Page 27: Application: Stereo Passive Tops And Mono Sub

    Total watts Weight Old paradigm Medium-power two-channel ~19 A / ~9.5 A 4200 ~110 lb High-power two-channel amp (bridged) New paradigm PLD4.2 4.7 A / 2.3 A 2200 18.5 lb PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 28: Application: Stereo Passive Tops And Two Mono Subs

    120 V / 230 V spaces Total watts Weight Old paradigm Medium-power two-channel ~21 A / ~10.5 A 4650 ~110 lb High-power two-channel amp (bridged) New paradigm PLD4.3 5 A / 2.5 A 4800 21 lb QSC Audio Products LLC Application Engineering Team...

  • Page 29: Application: Stereo Bi-Amp Mains

    Total watts Weight Old paradigm Low-power two-channel amp ~13 A / ~6.5 A 2750 ~100 lb High-power two-channel amp New paradigm Two PLD4.2 4.7 A / 2.3 A 5200 37 lb PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 30: Application: Stereo Bi-Amp Mains With Two Monitor Mixes

    Total watts Weight Old paradigm Two low-power two-channel ~13 A / ~6.5 A 2100 ~135 lb amps High-power two-channel amp New paradigm Two PLD4.3 4.6 A / 2.3 A 9400 42 lb QSC Audio Products LLC Application Engineering Team...

  • Page 31: Application: Mono Bi-Amp Tops And Sub

    Old paradigm Low-power two-channel amp ~13 A / ~6.5 A 2750 ~100 lb High-power two-channel amp New paradigm PLD4.3 4.7 A / 2.3 A 5600 21 lb Alternative 4-pole connection PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 32: Application: Stereo Full-Range Mains

    120 V / 230 V spaces Total watts Weight Old paradigm High-power two-channel amp ~10 A / ~5 A 2400 ~65 lb New paradigm PLD4.3 4.4 A / 2.2 A 3600 21 lb QSC Audio Products LLC Application Engineering Team...

  • Page 33: Application: Stereo Passive Tops And Subs

    120 V / 230 V spaces Total watts Weight Old paradigm Two high-power two-channel ~13 A / ~6.5 A 2800 ~130 lb amps New paradigm PLD4.5 6.8 A / 3.4 A 4800 22 lb PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 34: Application: Stereo Passive Tops And Subs

    120 V / 230 V spaces Total watts Weight Old paradigm Two high-power two-channel ~13 A / ~6.5 A 2800 ~130 lb amps New paradigm Two PLD4.3 10.6 A / 5.3 A 8000 42 lb QSC Audio Products LLC Application Engineering Team...

  • Page 35: Application: Stereo Bi-Amp Mains

    Total watts Weight Old paradigm Two high-power two-channel ~13 A / ~6.5 A 2800 ~130 lb amps New paradigm PLD4.5 6.8 A / 3.4 A 4800 22 lb Alternative 4-pole connection PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 36: Application: Stereo Bi-Amp Mains

    120 V / 230 V spaces Total watts Weight Old paradigm Two high-power two-channel ~13 A / ~6.5 A 2800 ~130 lb amps New paradigm Two PLD4.3 4.8 A / 2.4 A 3100 42 lb QSC Audio Products LLC Application Engineering Team...

  • Page 37: Application: Stereo Bi-Amp Tops And Mono Subs, With Two Monitors On One Mix

    Low-power two-channel amp ~19.5 A / ~9.7 A 8 4150 ~165 lb Two high-power two-channel amps New paradigm Two PLD4.3 4.4 A / 2.2 A 7400 42 lb Alternative 4-pole connection PLD Series Amplifiers Application Guide—Portable PA Rev. E, Apr. 2015...

  • Page 38: Application: Stereo Bi-Amp Tops And Subs

    Weight Old paradigm Low-power two-channel amp ~23 A / ~11.5 A 5150 ~165 lb Two high-power two-channel amps New paradigm Two PLD4.5 13.6 A / 6.8 A 11200 44 lb Alternative 4-pole connection QSC Audio Products LLC Application Engineering Team...

  • Page 39: Pld Series Specifications

    3. PLD Series Specifications PLD4.2 PLD4.3 PLD4.5 Burst power Burst power Burst power Four channels separate 8Ω 500 watts 900 watts 1200 watts 4Ω 700 watts 1400 watts 2000 watts 2Ω 600 watts 1200 watts 1600 watts Two channels parallel (AB and/or CD) 8Ω...
