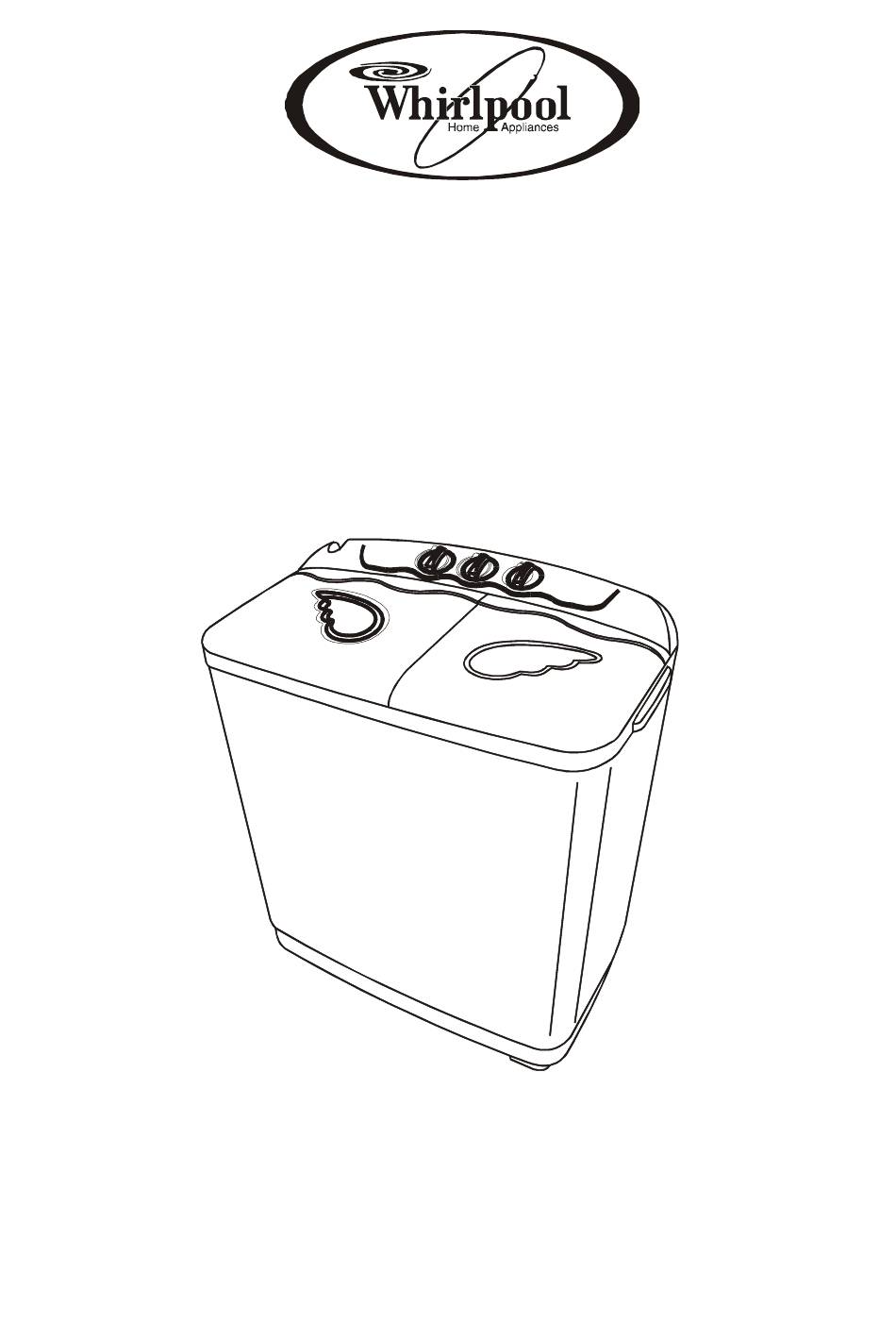

WASHING MACHINE
XWT-758

SERVICE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XWT-758 and is the answer not in the manual?

Questions and answers

Related Manuals for Whirlpool XWT-758

Summary of Contents for Whirlpool XWT-758

  • Page 1: Service Manual

    WASHING MACHINE XWT-758 SERVICE MANUAL...

  • Page 2: Name Of Parts

    Name of parts Water inlet port Spin timer selector Wash timer selector Selector Outer spin dryer lid Control Panel Inner spin dryer lid Inner spin dryer lid Washer tub Pulsator Power cord Lint filter Base Drain hose ACCESSORIES Note: The washing machine is to be connected to the water mains using new hose-sets supplied Inlet joint...

  • Page 3: Specifications

    GUIDE FOR SAFETY AND DURABILITY Do not expose the wash- Do not install the washing Do not splash water over ing machine to direct machine in a damp switches. sunlight or rain. environment. Let water drain away from When pulling out the power Do not let children play the drain hose thoroughly.

  • Page 4: Maintenance

    OPERATING INSTRUCTIONS Spin drying 1.Lift the outer spin dryer lid and open the inner spin dryer lid. 2.Place the rinsed clothing into the spinner tub. 3.IMPORTANT: To ensure correct balancing of the spinner unit, distribute clothing evenly in the tub before spinning (see n otes for spinning ).

  • Page 5: Installation

    INSTALLATION Installation Install your new washing machine on a flat level floor as near to a 2pin 220 volt AC socket outlet and water tap as possible. Keep the unit at least 5cm from walls or other fixtures to avoid accidental contact during operation. Connect the drain hose Please pull out the rubber stopple at the end of the drain hose before...

  • Page 6: Wiring Diagram

    WIRING DIAGRAM SPIN TIMER SAFETY SWITCH GREY GREY WHITE BROWN CHANGE OVER SWITCH DRAIN WHITE BLACK YELLOW WHITE BROWN BLACK YELLOW BROWN NORMAL WASH GENTLE WASH BROWN WASH TIMER YELLOW WHITE CAPACITOR CAPACITOR YELLOW WHITE WASH SPIN MOTOR MOTOR BLUE BLUE BLUE PLUG...
  • Page 7 OPERATING INSTRUCTIONS Washing 1. Turn the SELECTOR knob to select “ ” the HEAVY/NORMAL water flow according “ ” to the fabric type of the clothes. WASH ACTION NORMAL HEAVY Cotton Linen Synthetics Work clothes FABRIC TYPE fabrics Heavily stained clothes Wools SELECTOR 3~7min...

  • Page 8: Troubleshooting

    Troubleshooting Failure Reason Checking Step & Repairing Method The washing the power is abnormal to check the fuse, wire and socket for the machine washing machines, to sure whether it is doesn't wash well connected wash motor to check the capacitor firstly, then the capacitor breaks down wash motor, and make necessary...
  • Page 9 Failure Reason Checking Step & Repairing Method washing the sc rew to connect the spin to re-tight the screw machine shakes ift assembly and brake violently while eel is loosen spin the clothes is loaded on one re-load clothes side the spin tub accordingly in average washing machine...

  • Page 10: Exploded Views

    Exploded Views XWT-758-1...
  • Page 11 XWT-758-2...
  • Page 12 XWT-758-3...
  • Page 13 XWT-758-4...

  • Page 14: Parts List

    Parts List code name e-name 1-1 XPB758.1.2-2 wash transparent lid 洗衣透明盖 1-2 XPB758.1.2-1 wash lid 洗衣机盖 1-3 XPB758.1-3 spring of lid 机盖弹簧 1-4 XPB758.1-4 water guidance channel 引水板 1-5 GB9074.18-2000 自攻螺钉组合件 ST4.2×9.5 tapping screw assembly ST4.2X9.5 1-6 XPB758.0-3 screw cover 螺钉封盖...
  • Page 15 code name e-name 2-1 XPB758.0-6 衣物压片 spin cap 2-2 XPB758.2-3 溢水管 overflow pipe 2-3 XPB758.2.2-4 排水阀盖 cover of drain valve 2-4 XPB758.2.2-3 排水阀弹簧 spring of drain valve 2-5 XPB758.2.2-5 排水阀拉杆 pull-rod of drain valve 2-6 XPB758.2.2-7 排水阀胶套 rubber sleeve of drain valve 2-7 XPB758.2.2-1 排水阀体...
  • Page 16 code name e-name 3-1 XPB758.0-1 波轮盖 cover of impeller 3-2 XPB758.4-4 拳击棒 pop-up cover 3-3 XQB4298.18 波轮紧固螺钉组合件 set screw assembly for impeller 3-4 XPB758.4-1 波轮 impeller 3-5 XPB758.2.1-2 防水橡胶圈 water-proof rubber ring 3-6 XPB758.2.1.1 行星减速器 planet reductor 3-7 GB9074.18-2000 自攻螺钉组合件 ST4.8×25 tapping screw assembly ST4.8X25 3-8 XPB758.2.1-1 减速器皮带轮...
  • Page 17 code name e-name 4-1 XPB758.7.1 进水管 water inlet hose 4-2 XPB758.1.1.4 直形旋钮 I-shape knob 4-3 XPB756.1.1-2 756S 控制台 756S control panel 4-4 XPB758.1.1-3 定时器防水板 water proof plate for timer 4-5 GB9074.18-2000 自攻螺钉组合件 ST4.2×9.5 tapping screw assembly ST4.2X9.5 4-6 XPB758.1.1.1 洗衣定时器 wash timer 4-7 GB9074.18-2000 自攻螺钉组合件...
