iSMA -B-AAC20 User Manual
Advance control kit
Hide thumbs
Also See for iSMA-B-AAC20:
- User manual (49 pages) ,
- User manual (16 pages) ,
- User manual (55 pages)
Subscribe to Our Youtube Channel
Related Manuals for iSMA iSMA-B-AAC20
Summary of Contents for iSMA iSMA-B-AAC20

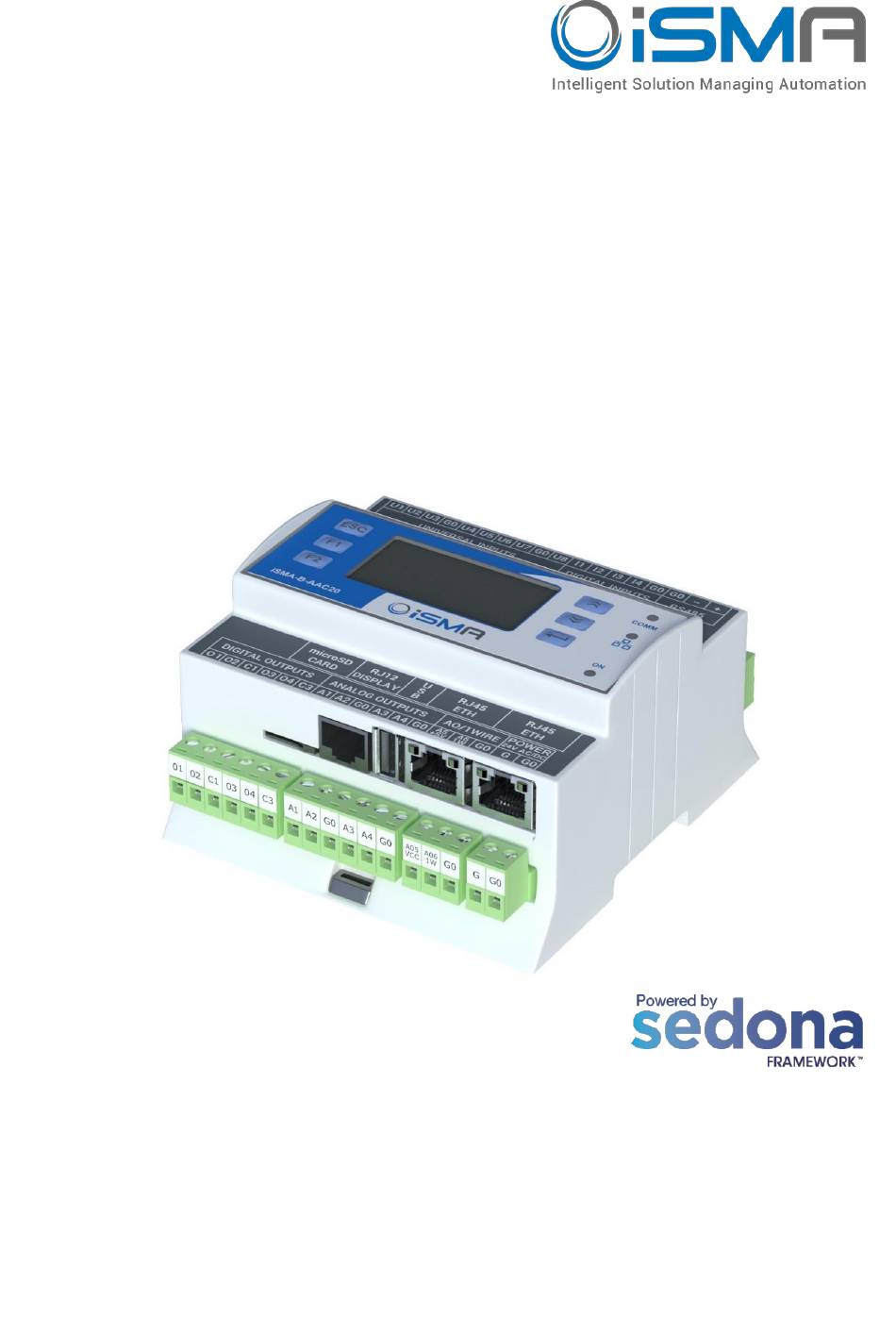

- Page 1 User Manual iSMA Advance Control kit Global Control 5 Sp. z o.o. Warsaw, Poland www.gc5.pl...
- Page 2 Control Kit Table of contents 1. Advance Control kit ......................... 3 Riser Lower component ..................3 Dimmer Switch ......................5 Action Trigger ......................6 Version 1.0 www.gc5.pl Page 2 / 7...
- Page 3 Control Kit 1. Advance Control kit This manual contains information about the Advance Control module of iSMA-B-AAC20 device. Advance Control kit has been developed in order to facilitate composing of user applications. With this kit components an advanced application can be built in a simple way. This kit...
- Page 4 Control Kit The component has the following actions: Adjust – Valve adjustment procedure recall (adjusts physical and virtual valve position) • The component has following slots: Function – Current function description (Lower_State, Static_State, Raise_State, • Adjustment_Opening, Adjustment_Closing) Virtual Position – Valve virtual position in % •...
- Page 5 Control Kit Dimmer Switch The component has been created to control light dimmer, with the use of single button (one digital input) or two buttons (two digital input). In Single Switch mode Switch 1 has defined function for short and long press. The short press is when the button is pressed for less than the time defined in slot Short In.
- Page 6 Control Kit Switch2 – Button input, not active for Single Switch mode, Off or decreasing output in • Double Switch mode Set On – Trigger for switch dimmer to On state (to max level) • Set Off – Trigger for switch dimmer to Off state •...
- Page 7 Control Kit The component has the following actions: Action – Manually recalls action from linked component • The component has following slots: Status – Component status, • In Boolean – Input slot to make link connection between components – Boolean type, •...
