- Page 1 User Manual Wireless Modbus RTU/ASCII www.ismacontrolli.com DMP263en | 1st Issue rev. 3 | 05/2022...
-
Page 2: Table Of Contents
User Manual Table of Contents Introduction ........................... 4 Revision History..........................5 Safety Rules..........................6 Technical Specification ......................7 Hardware Specification ....................... 9 Dimensions ............................ 9 Power Supply..........................9 4.2.1 DC Voltage..........................9 4.2.2 AC Voltage ..........................9 Front Panel...........................10 RS485 Communication......................10... - Page 3 User Manual 7.1.7 Modbus Protocol Type (40134)..................19 7.1.8 Modbus Address (40135) ....................19 7.1.9 Baud Rate (40136)........................ 19 7.1.10 Stop Bits (40137) ........................20 7.1.11 Data Bits (40138) ........................20 7.1.12 Parity Bit (40139) ........................20 7.1.13 Response Delay Time (40140) ................... 21 7.1.14...
-
Page 4: Introduction

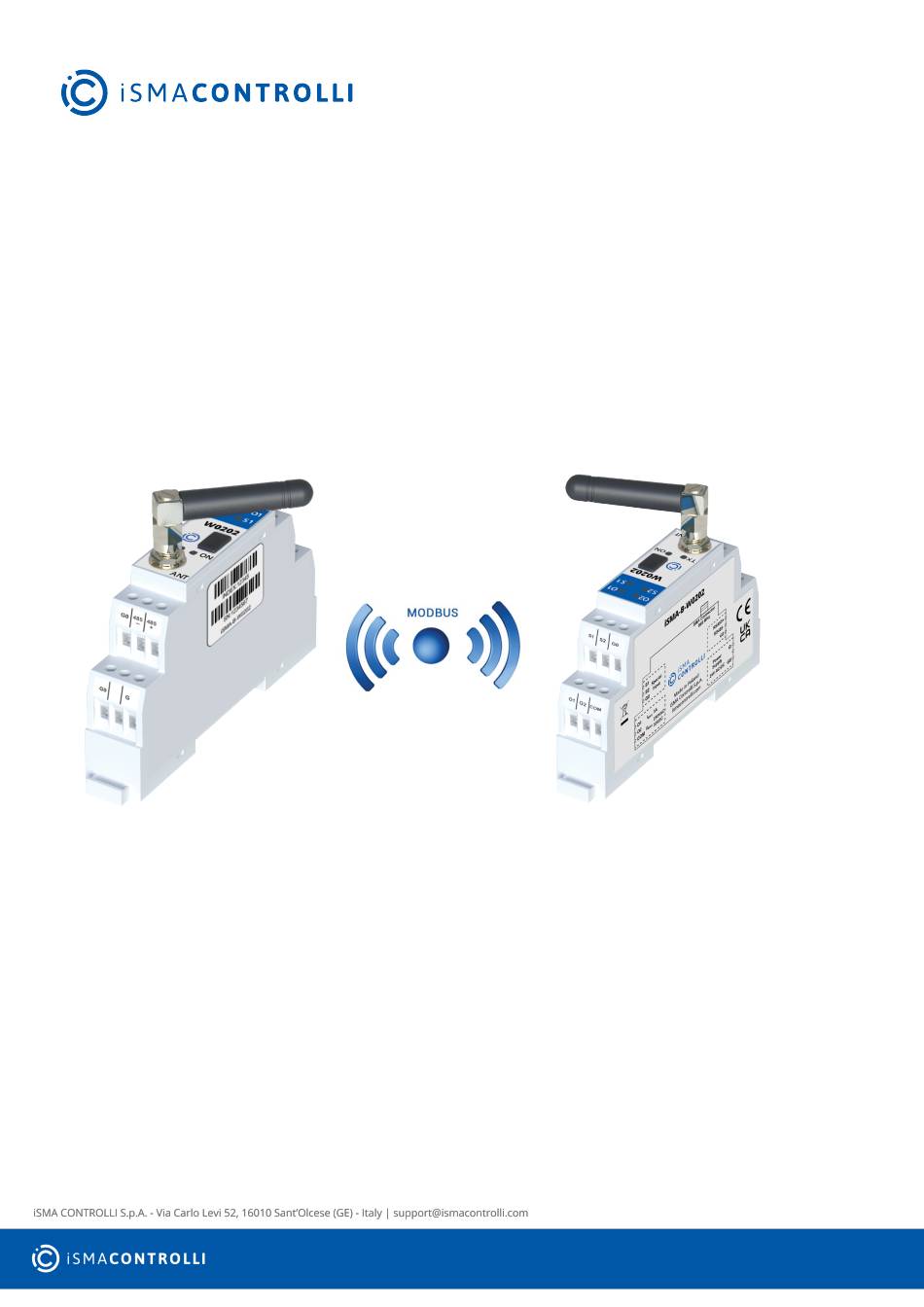

User Manual 1 Introduction The iSMA-B-W0202 has been built as an extension of Modbus serial bus by using wireless technology, wherever the use of network cable is impossible or unprofitable. Using two iSMA-B-W0202 modules allows to build a wireless 'bridge' for the RS485 by building wireless remote island (one or more) for devices, which communicate via Modbus RTU/ ASCII, e.g., iSMA-B-MIX18 or iSMA-B-MIX38. -
Page 5: Revision History
User Manual 1.1 Revision History Rev. Date Description 28 Apr 2015 First edition 29 Dec 2016 • New HVAC functions Heating and Cooling based on output thermostatic control with a setpoint and differential value setting; • Added new input mode Time Relay NC [ms], Time Relay NO and NC in seconds, Input Forwarding;... -
Page 6: Safety Rules
User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off. -
Page 7: Technical Specification
User Manual 3 Technical Specification Power Supply Voltage 24 V AC/DC ± 20% Power consumption 2 W at 24 V DC; 4.5 VA at 24 V AC Special Inputs Number of inputs Temperature input Measurement with attached RTDS Accuracy ±0.1˚C at 25˚C... - Page 8 User Manual External antenna SMA socket Ingress Protection IP40 Temperature Storage -40˚C to +85˚C Operating -10˚C to +50˚C Humidity Relative 5 to 95% Connectors Type Rising clamp Maximum cable size 2.5 mm Dimension Width 17 mm Length 56 mm...
-
Page 9: Hardware Specification
User Manual 4 Hardware Specification 4.1 Dimensions Figure 2. iSMA-B-W0202 dimensions 4.2 Power Supply 4.2.1 DC Voltage Figure 3. DC voltage 4.2.2 AC Voltage Figure 4. AC voltage www.ismacontrolli.com DMP263en | 1st Issue rev. 3 | 05/2022 page 9 of 41... -
Page 10: Front Panel
User Manual 4.3 Front Panel Figure 5. Front panel • The power LED (ON) is on (green) if the module is running properly; • The communication LED (TX) is on (orange) for 20 ms after sending each message. If the module receives/sends a lot of messages, the LED can be lit continuously;... -
Page 11: Network Termination
User Manual • proper wiring; • consideration of cable types and their cross sections; • and other. 4.4.2 Network Termination Transmission line effects often present problems for data communication networks. These problems include reflections and signal attenuation. To eliminate the presence of reflections of signal from the end of the cable, the cable must be terminated at both ends with a resistor across the line adequate to its characteristic impedance. -
Page 12: Inputs And Outputs
User Manual 5 Inputs and Outputs The iSMA-B-W0202 module is equipped with: • 2 special inputs; • 2 digital outputs. 5.1 Special Inputs 5.1.1 Voltage Measurement (0-10 V) Figure 7. A special input voltage connection 5.1.2 Temperature Measurement Figure 8. A special input temperature connection www.ismacontrolli.com... -
Page 13: Dry Contact
User Manual 5.1.3 Dry Contact Figure 9. A special input dry contact connection 5.2 Digital Outputs 5.2.1 Solenoid Valve Figure 10. A solenoid valve connection www.ismacontrolli.com DMP263en | 1st Issue rev. 3 | 05/2022 page 13 of 41... -
Page 14: Resistive Load
User Manual 5.2.2 Resistive Load Figure 11. A resistive load connection www.ismacontrolli.com DMP263en | 1st Issue rev. 3 | 05/2022 page 14 of 41... -
Page 15: Configuration
User Manual 6 Configuration The iSMA-B-W0202 can be configured using Modbus registers or directly by USB connection and iSMA Configurator software. The iSMA Configurator can be downloaded from ismacontrolli.com. If the module is connected, it appears in the hierarchy tree window (left part of the screen). -
Page 16: Digital Outputs
User Manual Figure 13. Special inputs configuration 6.3 Digital Outputs The screen below shows configuration options for digital outputs. Figure 14. Digital outputs configuration 6.4 Radio Settings The screen below shows configuration options for radio. www.ismacontrolli.com DMP263en | 1st Issue rev. 3 | 05/2022... -
Page 17: Radio Status
User Manual Figure 15. Radio settings 6.5 Radio Status The screen below shows radio status for all devices working in the same group. Figure 16. Radio status www.ismacontrolli.com DMP263en | 1st Issue rev. 3 | 05/2022 page 17 of 41... -
Page 18: Modbus Registers
User Manual 7 Modbus Registers This section outlines all Modbus registers available in the iSMA-B-W0202 wireless module. 7.1 Configuration Registers WARNING! Changing parameters concerning the transmission configuration will only take effect after restarting the module or reload settings–register (40001). -
Page 19: Device Actions (40001)
User Manual 7.1.6 Device Actions (40001) Setting the 40001 register according to the table below enables 1 of 3 available actions: reset module, reload settings, and set to default. Value Type of Action 0x01FF Reset of device 0x02FF Reload settings (RS485, Radio) -
Page 20: Stop Bits (40137)
User Manual Value Baud Rate 115200 (default) Table 6. Baud rate 7.1.10 Stop Bits (40137) The value of the register determines the number of stop bits in accordance with the following table: Value No. of Stop Bits 1 (default) Table 7. -
Page 21: Response Delay Time (40140)
User Manual Register Value Type of Parity Bit Even (number of all ones in a byte is even) Always 1 Always 0 Table 9. Parity bit 7.1.13 Response Delay Time (40140) The register contains the value determining the number of milliseconds to wait before the unit answers the question. -
Page 22: Radio Channel (40243)
User Manual Value Radio TX Power [dBm] Radio TX Power [mW] Table 10. Radio TX Power register 7.2.2 Radio Channel (40243) The register contains information about a radio channel. All modules, which work in the same group, require the same channel number. More than one wireless network can be used but each of them has to operate on a different channel. -
Page 23: Radio Aeskey (40249-40256)
User Manual Value Baud Rate 2400 4800 9600 19200 38400 57600 115200 200000 Table 12. Radio baud rate selection Higher baud rate value requires more bandwidth, which can occur on adjacent channels. The table below shows the dependencies between these parameters. -
Page 24: Radio Received Frames Counter (40257)
User Manual Register Device 40249 Radio AESKEY D1-D0 40250 Radio AESKEY D3-D2 40251 Radio AESKEY D5-D4 40252 Radio AESKEY D7-D6 40253 Radio AESKEY D9-D8 40254 Radio AESKEY D11-D10 40255 Radio AESKEY D13-D12 40256 Radio AESKEY D15-D14 Table 14. Radio AESKEY registers 7.2.5 Radio Received Frames Counter (40257) -
Page 25: Special Inputs Registers
User Manual Register Device 40266 WIRELESS DEVICE STATUS 4 ..40389 WIRELESS DEVICE STATUS 127 40390 WIRELESS DEVICE STATUS 128 Table 15. Wireless Device Status registers The particular register contains information about the signal strength in dBm and remote device status. -
Page 26: Special Input Temperature Measurement 1-2 (30072, 30074)
User Manual 7.3.3 Special Input Temperature Measurement 1-2 (30072, 30074) The registers contain results of measuring temperature for each special input. The result is expressed in Celsius degrees multiplied by 10. Special Input Register Number 30072 30074 Table 19. Speicla inputs temperature measurement 7.3.4 Special Input Resistance Measurement 1-2 (30103-30104,... -
Page 27: Special Input Configuration 1-2 (40151-40152)
User Manual No. of Register Bit Special Input Counter Table 22. Resetting counters values True value of the bit causes continuous resetting of the counter. Setting the bit to 0 restores normal operation. 7.3.7 Special Input Configuration 1-2 (40151-40152) -
Page 28: Digital Outputs Registers
Table 25. Default state of digital outputs register 7.5 Special Application Modes In the iSMA-B-W0202 module, simple applications are built-in, which can be used to control building devices. The applications provide logic between a signal from the special inputs and control digital output’s state. Relation between inputs and outputs is shown in the table below and it cannot be changed. -
Page 29: Operation Mode Registers (40176,40180)
User Manual Register Description 40178 Input S1 SETPOINT 40179 Input S1 DIFFERENTIAL 40180 Input S2 OPERATION MODE 40181 Input S2 TIME VALUE 40182 Input S2 SETPOINT 40183 Input S2 DIFFERENTIAL Table 27. List of registers dedicated for special application modes 7.5.1 Operation Mode Registers (40176,40180) - Page 30 User Manual Ordinary IO In this mode, the module works as a standard IO module, inputs and outputs are not related with each other. Monostable Relay In this mode, both rising and falling edge on the special input change the output state.
- Page 31 User Manual Time Relay NC [s] In this mode, if the output value is false, the falling edge on the special input sets the output to true. Every rising edge on the special input starts the counter from the beginning, which means that the output will stay true for a time defined in the Time Value register (expressed in seconds), counting from the last rising edge of the special input.
-
Page 32: Command Register (40020)
User Manual WARNING! In the case if the temperature sensor has failed (got disconnected or shortcut), then the heating mode does not work, and the output stays in the false state. Cooling Mode In this mode, the output is controlled as a typical thermostat, based on the Setpoint register and control value (input value) with differential parameter defined in the Differential register. -
Page 33: Block Inputs Register (40021)
User Manual the state of relevant bit (changing from false to true). All special application modes can be executed, except Input Forwarding, Heating and Cooling modes. No. of Bit in Register Command Input Number Table 29. The Comman register values 7.5.3 Block Inputs Register (40021) -
Page 34: List Of Modbus Registers
User Manual 8 List of Modbus Registers Modbus Decimal Register Name Access Description Address Address Address 30001 0x00 VERSION AND Read-only Firmware version and MODULE TYPE module type (30001) 30004 0x03 RS485 COUNTER OF Read-only Counter of received RECEIVED FRAMES... - Page 35 User Manual Modbus Decimal Register Name Access Description Address Address Address 40020 0x12 SPECIAL INPUTS Read&Write Special inputs command COMMAND register (40020) REGISTER 40021 0x14 SPECIAL INPUTS Read&Write Special inputs blocking BLOCKING (40021) By default set to 0 40022...
- Page 36 User Manual Modbus Decimal Register Name Access Description Address Address Address 30073 0x48 SPECIAL INPUT 2 Read-only VOLTAGE 30074 0x49 SPECIAL INPUT 2 Read-only TEMPERATURE 30087 0x56 SPECIAL INPUT 1 Read-only VOLTAGE 30088 0x57 SPECIAL INPUT 2 Read-only VOLTAGE...
- Page 37 User Manual Modbus Decimal Register Name Access Description Address Address Address 40139 0x8A RS485 PARITY BIT Read&Write Parity bit (40139) Memory The default value is 0 (no parity) Allowed values: Value Descript 0 (default) None Even Always 1 Always 0...
- Page 38 User Manual Modbus Decimal Register Name Access Description Address Address Address Description / Sensor Resistance measurement 10K3A1 NTC 10K4A1 NTC 10K NTC Carel 20K6A1 NTC 2,2K3A1 NTC B=3975K 3K3A1 NTC 30K6A1 NTC SIE1 TAC1 SAT1 Voltage measurement off and fast...
- Page 39 User Manual Modbus Decimal Register Name Access Description Address Address Address 40176 0xAF SPECIAL INPUT 1 Read&Write Valu Description CONFIGURATIO Memory MODE Ordinary IO Monostabile Relay Bistabile Relay Time Relay TIME VALUE [ms] 40177 0xB0 SPECIAL INPUT 1 Read&Write...
- Page 40 User Manual Modbus Decimal Register Name Access Description Address Address Address 40249 0xF8 RADIO AESKEY D1- Read&Write Radio transmission 128 bit encryption key Memory (40249-40256) Default values: 1111 2222 3333 4444 5555 6666 7777 8888 40250 0xF9 RADIO AESKEY D3- Read&Write...
- Page 41 User Manual Modbus Decimal Register Name Access Description Address Address Address 40263 - 262 - 389 0x0106 – WIRELESS DEVICE Read-only Bit 7: 0 - Int8 RX POWER 40390 0x0185 STATUS 1 ÷ 128 [dBm] Bit 8: 0 - Down; 1 - Ok Table 31.
