AIR SYSTEMS MULTI-PAK MP-2300ENB Operating Manual

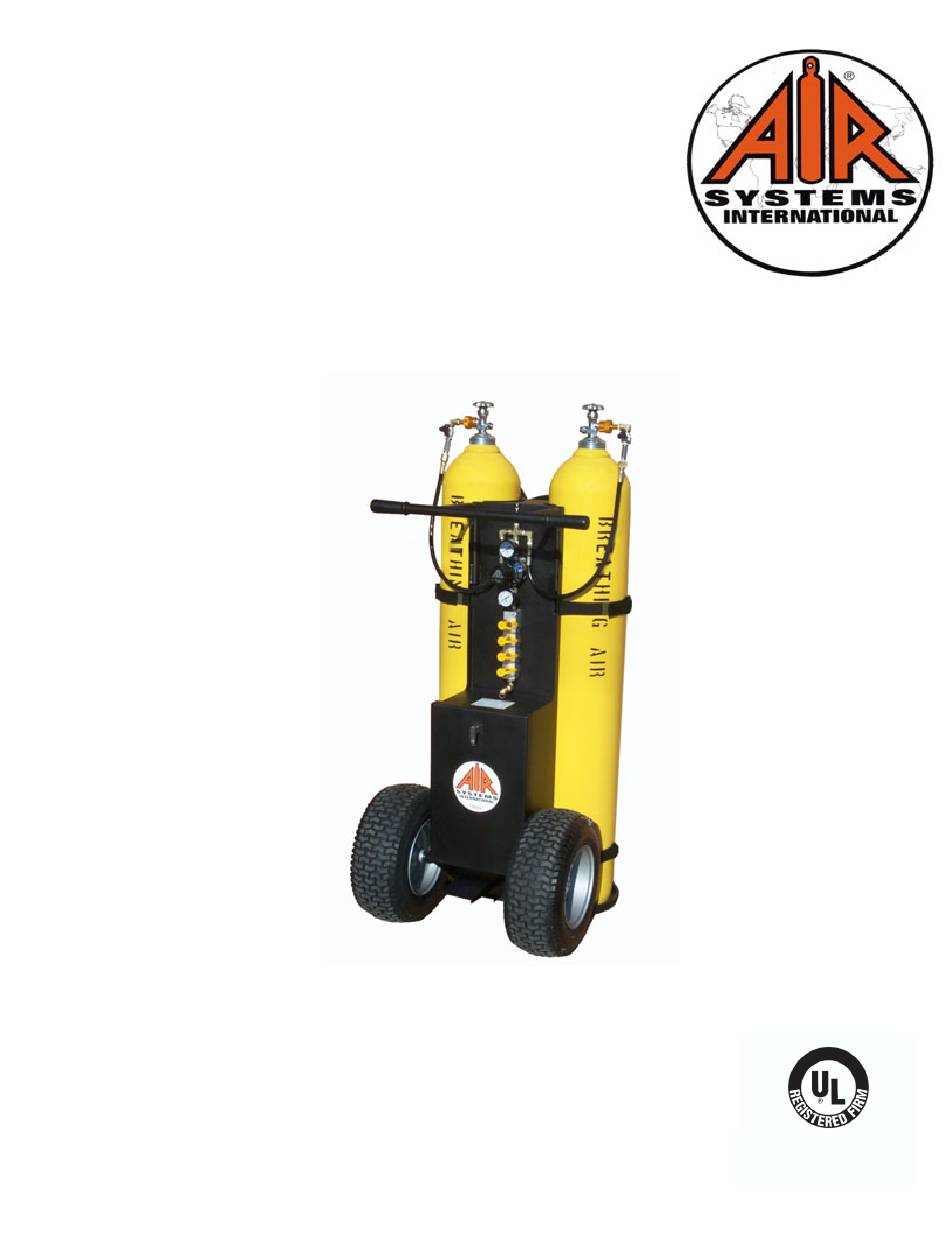

Bottled air cart with low pressure alarm whistle

Model MP-2300ENB

MULTI-PAK

BOTTLED AIR CART WITH

LOW PRESSURE ALARM WHISTLE

Manual No. PAK014

(Rev 1 September 2001)

Operating Manual

AIR SYSTEMS INTERNATIONAL, INC.

829 Juniper Crescent, Chesapeake, Va. , 23320

Telephone (757) 424-3967

Toll Free 1-800-866-8100

Fax No. (757) 424-5348

http://www.airsystems.cc

e-mail: sales@airsystems.cc

Air Systems International, Inc.

Registered to ISO 9001

Certificate No. A5033

Printed in U.S.A

Table of Contents

Need help?

Do you have a question about the MULTI-PAK MP-2300ENB and is the answer not in the manual?

Page 1 829 Juniper Crescent, Chesapeake, Va. , 23320 Telephone (757) 424-3967 Toll Free 1-800-866-8100 Fax No. (757) 424-5348 http://www.airsystems.cc e-mail: sales@airsystems.cc Air Systems International, Inc. Registered to ISO 9001 Certificate No. A5033 Printed in U.S.A ©Copyright Air Systems International, Inc. 2000. All Rights Reserved.
Page 2 SPECIFICATIONS AND PARTS IDENTIFICATION 48H x 25W x 31D Size w/o cylinders: Weight w/o cylinders 120 lbs. Frame: Steel (Powder coated) Four (4) adjustable Cylinder Straps: Whip Assemblies: 5000psi (345 bar) rated 4:1 safety factor Allows depressurization of hand tight nut Bleeder Valves Check Valves: Allows independent cylinder operation...
Page 3 SETUP PROCEDURE STEP 3) Open one cylinder. At this time the low pressure warning alarm will sound until it sets itself at approx. 1000psi (69 bar). Check reading on gauge to verify cylinder is full. Close the cylinder. STEP 2) STEP 4) LOW PRESSURE Install universal CGA-347 hand ALARM TEST...
Page 4 Air Systems’ manufactured equipment is warranted to the original user against defects in workmanship or materials under normal use for one year after date of purchase. Any part which is determined by Air Systems to be defective in material or workmanship will be, as the exclusive remedy, repaired or replaced at Air Systems’ option. This warranty does not apply to electrical systems or electronic components.
