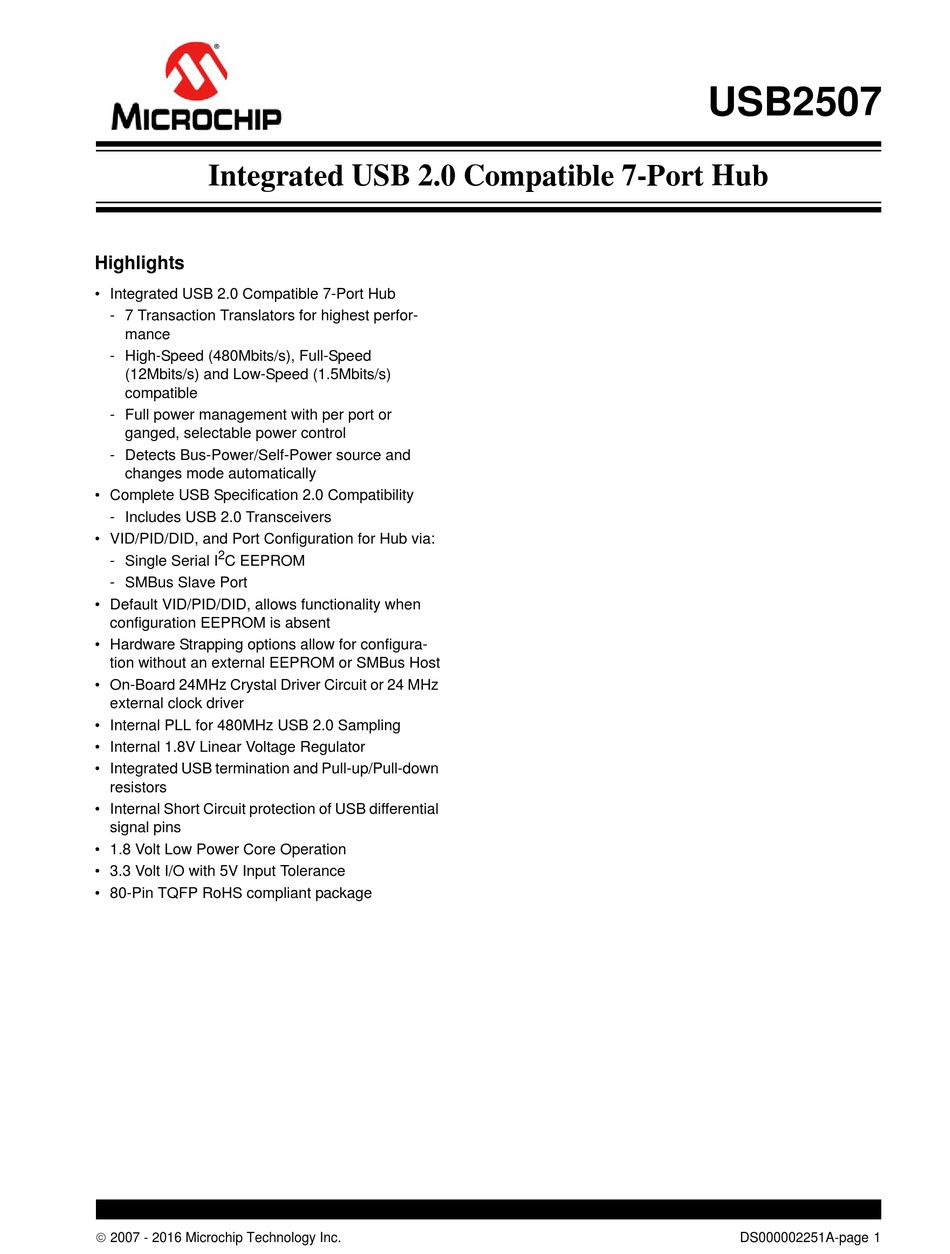

Integrated USB 2.0 Compatible 7-Port Hub
Highlights
• Integrated USB 2.0 Compatible 7-Port Hub
- 7 Transaction Translators for highest perfor-
mance
- High-Speed (480Mbits/s), Full-Speed
(12Mbits/s) and Low-Speed (1.5Mbits/s)
compatible
- Full power management with per port or
ganged, selectable power control
- Detects Bus-Power/Self-Power source and
changes mode automatically
• Complete USB Specification 2.0 Compatibility
- Includes USB 2.0 Transceivers
• VID/PID/DID, and Port Configuration for Hub via:
2
- Single Serial I
C EEPROM
- SMBus Slave Port
• Default VID/PID/DID, allows functionality when
configuration EEPROM is absent
• Hardware Strapping options allow for configura-
tion without an external EEPROM or SMBus Host
• On-Board 24MHz Crystal Driver Circuit or 24 MHz
external clock driver
• Internal PLL for 480MHz USB 2.0 Sampling
• Internal 1.8V Linear Voltage Regulator
• Integrated USB termination and Pull-up/Pull-down
resistors
• Internal Short Circuit protection of USB differential
signal pins
• 1.8 Volt Low Power Core Operation
• 3.3 Volt I/O with 5V Input Tolerance
• 80-Pin TQFP RoHS compliant package
 2007 - 2016 Microchip Technology Inc.
USB2507
DS000002251A-page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB2507 and is the answer not in the manual?

Questions and answers

Summary of Contents for Microchip Technology USB2507

  • Page 1 • Internal Short Circuit protection of USB differential signal pins • 1.8 Volt Low Power Core Operation • 3.3 Volt I/O with 5V Input Tolerance • 80-Pin TQFP RoHS compliant package  2007 - 2016 Microchip Technology Inc. DS000002251A-page 1...
  • Page 2 When contacting a sales office, please specify which device, revision of silicon and data sheet (include -literature number) you are using. Customer Notification System Register on our web site at www.microchip.com to receive the most current information on all of our products.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 2...
  • Page 3: Table Of Contents

    9.0 Package Outline .................................... 36 Appendix A: Data Sheet Revision History ............................37 The Microchip Web Site ..................................38 Customer Change Notification Service ............................... 38 Customer Support ....................................38 Product Identification System ................................40  2007 - 2016 Microchip Technology Inc. DS000002251A-page 3...
  • Page 4: Introduction

    OEM Selectable Features A default configuration is available in the USB2507 following a reset. This configuration may be sufficient for some appli- cations. Strapping option pins make it possible to modify a limited sub-set of the configuration options.
  • Page 5: Pin Table 7-Port

    OCS4_N OCS5_N OCS6_N OCS7_N PRTPWR_POL RBIAS SERIAL PORT INTERFACE (3 PINS) SDA/SMBDATA SCL/SMBCLK/ CFG_SEL1 CFG_SEL0 MISC (8 PINS) XTAL1/CLKIN XTAL2 RESET_N SELF_PWR ATEST/ CLKIN_EN TEST1 TEST0 REG_EN POWER, GROUND (22 PINS)  2007 - 2016 Microchip Technology Inc. DS000002251A-page 5...
  • Page 6: Pin Configuration 7-Port Hub

    7-PORT 80-PIN TQFP VDDA33 PRTPWR1 USBDP0 USBDN0 USBDN1 USBDP1 VDDA33 USBDP2 VDD18 USBDN2 USB2507 VDD33 GR4/PRT_DIS1 VDD18 AM4/LED_EN GR3/PRT_DIS0 XTAL2 XTAL1/CLKIN GR2/NON_REM1 VDDA18PLL AM2/MTT_EN VDDA33PLL GR1/NON_REM0 ATEST/REG_EN AM1/GANG_EN RBIAS SDA/SMBDATA SCL/SMBCLK/CFG_SEL0  2007 - 2016 Microchip Technology Inc. DS000002251A-page 6...
  • Page 7: 7-Port Hub Block Diagram

    (Use of a weak pull-down resistor is recommended.) For self-powered applications with a permanently attached host, this pin must be pulled-up to either 3.3V or 5.0V (typically VDD33).  2007 - 2016 Microchip Technology Inc. DS000002251A-page 7...
  • Page 8 NON_REM[1:0] = ‘11’, Ports 1, 2, & 3 are non-removable, GR2 is active low, GR1 is active low. Ports [7:5] Amber AM[7:5] I/O12 Amber indicator LED’s for ports [7:5], LED is active low.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 8...
  • Page 9 Input from external current monitor indicating an over-current condition. {Note: Contains internal pull-up to 3.3V supply} Sense USB Transceiver RBIAS A 12.0k (resistor is attached from ground to this pin to set the transceiver’s internal bias settings. Bias  2007 - 2016 Microchip Technology Inc. DS000002251A-page 9...
  • Page 10 PHY is in test mode, the internal regulator is disabled and the ATEST pin functions as a test pin.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 10...
  • Page 11 Defined in USB Specification. Note: Meets USB 1.1 requirements when operating as a 1.1-compliant device and meets USB 2.0 requirements when operating as a 2.0- compliant device. Analog Input/output. Per PHY test requirements.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 11...
  • Page 12: Functional Block Description

    Allows an OEM to force the Hub to configure as a Full-Speed device only (i.e. High-Speed not available). This field is set by the OEM using either the SMBus or EEPROM interface options.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 12...
  • Page 13 (and from Bus-Powered to Self-Powered if the local power source is restored). {Note: If the local power source is available, the 7-port Hub will always switch to Self-Powered operation.}  2007 - 2016 Microchip Technology Inc. DS000002251A-page 13...
  • Page 14 The Internal state-machine will, (when configured for EEPROM support) read the external EEPROM for configuration data. The hub will then “attach” to the upstream USB host. Please see Table 5-1 User-Defined Descriptor Data for a list of data fields available.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 14...
  • Page 15 Selects the ports that will be permanently Bus-Powered disabled Max Power Max Current for this configuration (expressed Self-Powered in 2mA units). Max Power Max Current for this configuration (expressed Bus-Powered in 2mA units).  2007 - 2016 Microchip Technology Inc. DS000002251A-page 15...
  • Page 16 High Speed Disable: Disables the capability to attach as either a High/Full- speed device, and forces attachment as Full-speed only i.e. (no High-Speed support). 0 = High-/Full-Speed. (Default) 1 = Full-Speed-Only (High-Speed disabled!)  2007 - 2016 Microchip Technology Inc. DS000002251A-page 16...
  • Page 17 Bit 4= 1; Port 4 non-removable. Bit 3= 1; Port 3 non-removable. Bit 2= 1; Port 2 non-removable. Bit 1= 1; Port 1 non removable. Bit 0 is Reserved, always = ‘0’.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 17...
  • Page 18 0mA in its descriptors. A value of 50 (decimal) indicates 100mA.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 18...
  • Page 19 The register data field is the data that the host is attempting to write to the register or the contents of the register that the host is attempting to read.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 19...
  • Page 20 25ms (T ). Devices that have detected this condition must reset TIMEOUT, MIN their communication and be able to receive a new START condition no later than 35ms (T TIMEOUT, MAX  2007 - 2016 Microchip Technology Inc. DS000002251A-page 20...
  • Page 21 Non-Removable Devices Port Disable (Self) Port Disable (Bus) Max Power (Self) MAXPS Max Power (Bus) MAXPB Hub Controller Max HCMCS Current (Self) Hub Controller Max HCMCB Current (bus) Power-on Time PWRT  2007 - 2016 Microchip Technology Inc. DS000002251A-page 21...
  • Page 22 Description PID_MSB Most Significant Byte of the Product ID. 5.3.9.6 Register 05h: Device ID (LSB) (Reset = 0x00) Bit Number Bit Name Description DID_LSB Least Significant Byte of the Device ID.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 22...
  • Page 23 Powered operation if the local power source is removed (can revert back to Self-Power if local power source is restored). 0 = No Dynamic auto-switching. 1 = Dynamic Auto-switching capable. Reserved Reserved  2007 - 2016 Microchip Technology Inc. DS000002251A-page 23...
  • Page 24 Bit 4= 1; Port 4 is disabled. Bit 3= 1; Port 3 is disabled. Bit 2= 1; Port 2 is disabled. Bit 1= 1; Port 1 is disabled. Bit 0 is Reserved, always = ‘0’  2007 - 2016 Microchip Technology Inc. DS000002251A-page 24...
  • Page 25 Power On Time: The length of time that it takes (in 2 ms intervals) from the time the host initiated power-on sequence begins on a port until power is good on that port.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 25...
  • Page 26 PAD will “sink” the current from the external supply. When a pin is configured with a “Strap Low” configuration, the LED functions with active high signaling, and the PAD will “source” the current to the external LED. FIGURE 5-1: LED STRAPPING OPTION Strap High Strap Low  2007 - 2016 Microchip Technology Inc. DS000002251A-page 26...
  • Page 27 RESET_N TIMING FOR DEFAULT/STRAP OPTION MODE Name Description Units sec RESET_N Asserted. Strap Setup Time 16.7 nsec Strap Hold Time. 16.7 1400 nsec sec hub outputs driven to inactive logic states  2007 - 2016 Microchip Technology Inc. DS000002251A-page 27...
  • Page 28 USB power source during t4+t5+t6+t7. 2: All Power Supplies must have reached the operating levels mandated in Section 7.0, "DC Parameters", prior to (or coincident with) the assertion of RESET_N.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 28...
  • Page 29 Complies with Section 11.10 of the USB 2.0 Specification for behavior after completion of the reset sequence. The Host then configures the Hub and the Hub’s downstream port devices in accordance with the USB Specification.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 29...
  • Page 30: Xnor Test

    RBIAS, TEST1, Power, and Ground). This functionality is enabled by driving TEST1 and CFG_SEL[1] high, driving SCLK low and transition RESET_N from low to high. The output from the XNOR chain is driven to GR2. For each pin tested for continuity GR2 should toggle.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 30...
  • Page 31: Dc Parameters

    3 . 0 V, t h e n t h e M A X becomes: (3.3V supply voltage + 0.5) Voltage on XTAL1 -0.3 DDA33 Voltage on XTAL2 -0.3 DD18  2007 - 2016 Microchip Technology Inc. DS000002251A-page 31...
  • Page 32 Output Leakage = 0 to V DD33 (Note 1) OD12 Type Buffer Low Output Level = 12mA @ V = 3.3V DD33 Output Leakage µA = 0 to V DD33 (Note 1)  2007 - 2016 Microchip Technology Inc. DS000002251A-page 32...
  • Page 33 Note 1: Output leakage is measured with the current pins in high impedance. 2: See USB 2.0 Specification for USB DC electrical characteristics. 3: RBIAS is a 3.3V tolerant analog pin.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 33...
  • Page 34 AC ground) Input Capacitance Output Capacitance Power Sequencing There are no power supply sequence restrictions for the Hub. The order in which power supplies power-up and power- down is implementation dependent.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 34...
  • Page 35: Ac Specifications

    USB 2.0 The Hub conforms to all voltage, power, and timing characteristics and specifications as set forth in the USB 2.0 Spec- ification. Please refer to the USB Specification for more information.  2007 - 2016 Microchip Technology Inc. DS000002251A-page 35...
  • Page 36: Package Outline

     'LPHQVLRQV ' DQG ( GR QRW LQFOXGH PROG IODVK RU SURWUXVLRQV 0ROG IODVK RU SURWUXVLRQV VKDOO QRW H[FHHG  PP SHU VLGH  'LPHQVLRQLQJ DQG WROHUDQFLQJ SHU $60( <0 %6& %DVLF 'LPHQVLRQ 7KHRUHWLFDOO\ H[DFW YDOXH VKRZQ ZLWKRXW WROHUDQFHV 5() 5HIHUHQFH 'LPHQVLRQ XVXDOO\ ZLWKRXW WROHUDQFH IRU LQIRUPDWLRQ SXUSRVHV RQO\ 0LFURFKLS 7HFKQRORJ\ 'UDZLQJ &%  2007 - 2016 Microchip Technology Inc. DS000002251A-page 36...
  • Page 37: Appendix A: Data Sheet Revision History

    USB2507 APPENDIX A: DATA SHEET REVISION HISTORY TABLE A-1: REVISION HISTORY Revision Section/Figure/Entry Correction DS000002251A (07-29-16) Replaces previous SMSC version Rev. 2.3 (08-27-07).  2007 - 2016 Microchip Technology Inc. DS000002251A-page 37...
  • Page 38: The Microchip Web Site

    A listing of sales offices and locations is included in the back of this docu- ment. Technical support is available through the web site at: http://www.microchip.com/support  2007 - 2016 Microchip Technology Inc. DS000002251A-page 38...
  • Page 39 USB2507  2007 - 2016 Microchip Technology Inc. DS000002251A-page 39...
  • Page 40: Product Identification System

    To order or obtain information, e.g., on pricing or delivery, refer to the factory or the listed sales office PART NO. Example: Device Package USB2507-ADT = 80-Pin TQFP RoHS Compliant Package, Tray Device: USB2507 Package: 80-Pin TQFP  2007 - 2016 Microchip Technology Inc. DS000002251A-page 40...
  • Page 41 SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. Silicon Storage Technology is a registered trademark of Microchip Technology Inc. in other countries. GestIC is a registered trademarks of Microchip Technology Germany II GmbH & Co. KG, a subsidiary of Microchip Technology Inc., in other countries.
  • Page 42 Fax: 86-27-5980-5118 Fax: 886-2-2508-0102 San Jose, CA China - Xian Thailand - Bangkok Tel: 408-735-9110 Tel: 86-29-8833-7252 Tel: 66-2-694-1351 Canada - Toronto Fax: 86-29-8833-7256 Fax: 66-2-694-1350 Tel: 905-695-1980 Fax: 905-695-2078 06/23/16  2007 - 2016 Microchip Technology Inc. DS000002251A-page 42...
