3 Set-up and installation
Set-up:
• Remove the packaging and dispose of it in an environmentally sound manner.
• Install the ROTEX ESU at the installation site.
• Lay the connection lines in such a way that the protective cover can be removed (see Figure 3-2).
3.3
Dimensions
Fig. 3-1
12

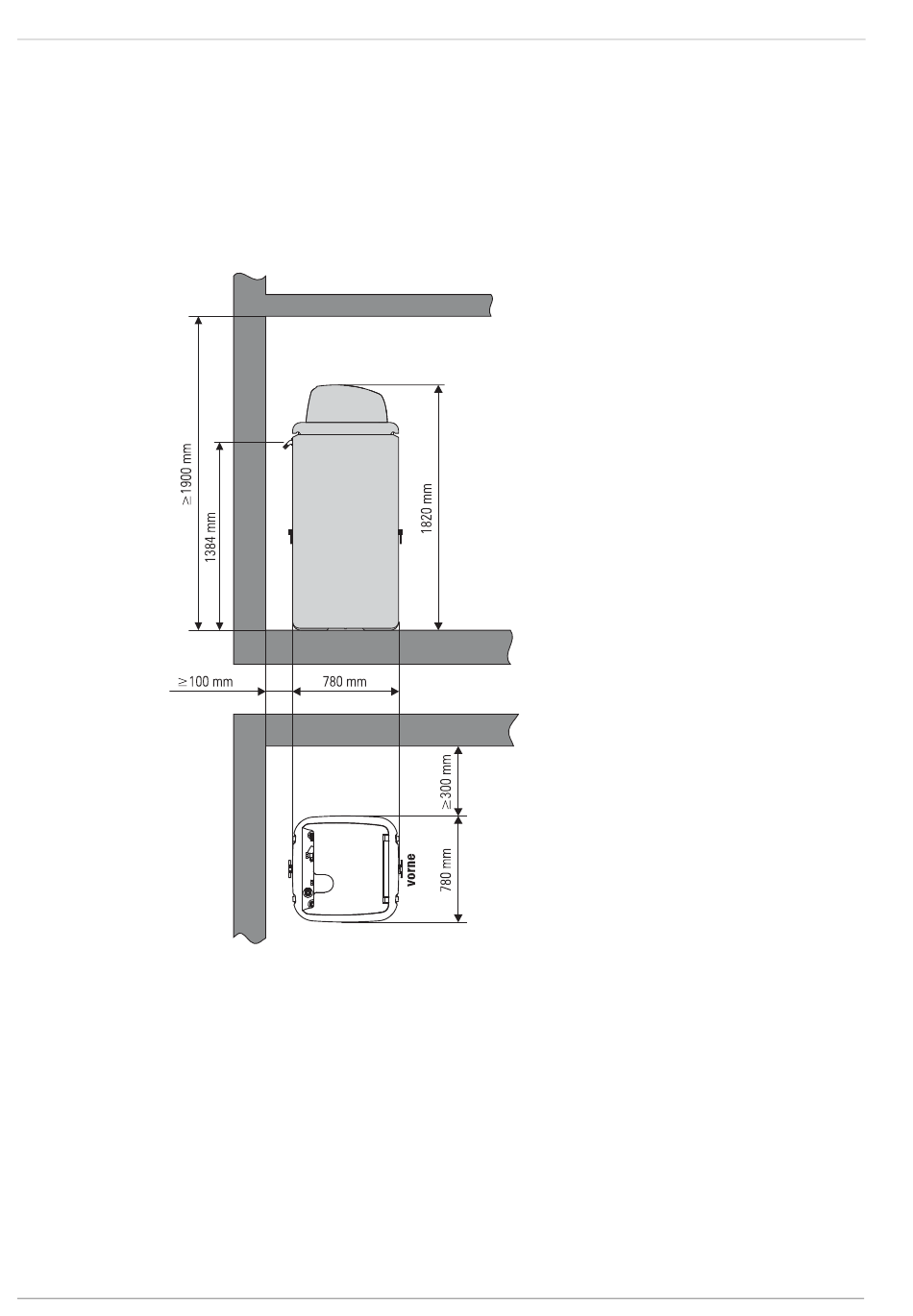

Mounting dimensions of the ROTEX ESU
FA ROTEX ESU - 07/2008
