Honeywell SiX Series Installation Manual

SiXC2W
Convert to Wireless / Convert to Wireless
Quick Installation Guide

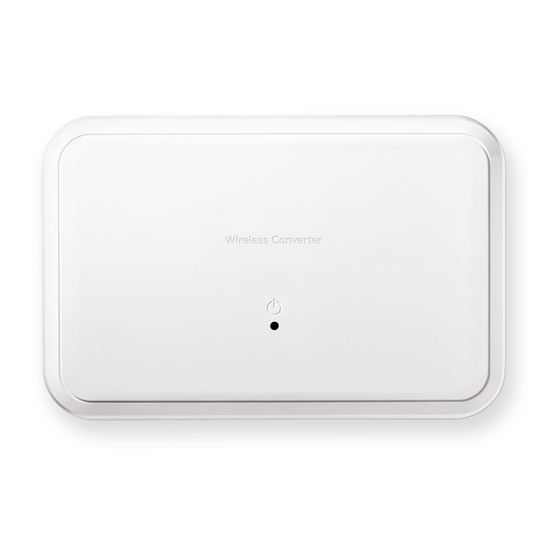

The Honeywell SiXC2W is an eight zone hardwire to wireless converter used with
controllers that support Honeywell's SiX™ series devices. It is useful in retrofit 12-
volt security system applications where existing contact wiring was used. It uses
those existing wired contacts and converts them to wireless.
FEATURES
•
Provides 12-volts for devices such as motion detectors, glass breaks, etc.
NOTE: Only two devices may be powered using the auxiliary output on the
SiXC2W.
•
Provides 24-hour battery backup (4-hour if external devices are connected).
NOTE: It immediately sends a power loss signal to the controller in the event
the power is lost.
• When no battery is connected, low battery message will send to control
panel.
When battery is connected, and if battery voltage drops below 3.6VDC, a low
battery message sends to the control panel.
When only the battery is connected, and if the battery voltage 3.4 V, system
will shut down.
•
Support one button calibration
•
Automatic zone configuration
•
Easy setup in three steps
• Cover tamper protection
IMPORTANT!
Not to be used for fire, heat, or carbon monoxide detectors.
CALIBRATING
The calibration process enables the SiXC2W to learn
what zones are to be active and what value EOL resistors
are used.
IMPORTANT!
Unused zones that are open ARE NOT
recognized and reported.
1. Ensure all zones are connected and not faulted.
2. On the SiXC2W, press and release the top middle
button.
3. Indicator LED #2 will flash Red for 1/2 second; then
LED #3 turns steady Green.
4. Calibration is in process
5. DONE. The SiXC2W is calibrated and ready to enroll
in the control panel.
NOTES:
• If the SiXC2W loses both AC and battery backup
power, the zone calibration data is retained.
• If there is an existing resistor, it MUST have a value
between 1K and 10K.The unit comes with eight (8)
2.2K resistors for zones that don't have one.
IMPORTANT!
Once the SiXC2W is calibrate, any change in
the zone resistance the module must be
re-calibrated.
ENROLLING / ENROLLING
Lyric Control
Lyric Controller Enrollment Process, See Controller's installation instructions for its
proper programming process.
For Lyric Gateway
Use AlarmNet 360™ to enroll and program this sensor.
For Other Controls
For other controls that support SiX series devices, see the controller's installation app for
details
NOTE: Once enrolled in a system, the SiXC2W cannot be used with another controller
until it is removed from the current controller. See the Controller's instructions
for details.
Guide d'installation rapide
The Honeywell SiXC2W is an eight zone hardwire to wireless converter used with
controllers that support Honeywell's SiX™ series devices. It is useful in retrofit 12-volt
security system applications where existing contact wiring was used. It uses those
existing wired contacts and converts them to wireless
CARACTÉRISTIQUES
•
Provides 12-volts for devices such as motion detectors, glass breaks, etc.
NOTE: Only two devices may be powered using the auxiliary output on the SiXC2W.
•
Provides 24-hour battery backup. (4-hour if external devices are connected). NOTE:
It immediately sends a power loss signal to the controller in the event the power is
lost.
•
When no battery is connected, low battery
When battery is connected, and if battery voltage drops below 3.6VDC, a low battery
message sends to the control panel.
When only the battery is connected, and if the battery voltage 3.4 V, system will shut
down.
• Support one button calibration
•
Automatic zone configuration
•
Easy setup in three steps
•
Cover tamper protection
IMPORTANT!
Not to be used for fire, heat, or carbon monoxide detectors.
Lyric Control
Lyric Controller Enrollment Process, See Controller's installation instructions for it's
proper programming process.
For Lyric Gateway
Use AlarmNet 360™ to enroll and program this sensor.
For Other Controls
For other controls that support SiX series devices, see the controller's installation app for
details
NOTE: Once enrolled in a system, the SiXC2W cannot be used with another controller
until it is removed from the current controller. See the Controller's instructions
for details.
message will send to control panel.
CALIBRATING
The calibration process enables the SiXC2W to learn
what zones are to be active and what value EOL
resistors are used.
IMPORTANT!
Unused zones that are open ARE NOT
recognized and reported
1. Ensure all zones are connected and not faulted.
2. On the SiXC2W, press and release the top middle
button.
3. Indicator LED #2 will flash Red for 1/2 second;
then LED #3 turns steady Green.
4. Calibration is in process
5. DONE. The SiXC2W is calibrated and ready to
enroll in the control panel.
NOTES:
• If the SiXC2W loses both AC and battery backup
power, the zone calibration data is retained.
• If there is an existing resistor, it MUST have a value
between 1K and 10K.The unit comes with eight (8)
2.2K resistors for zones that don't have one.
IMPORTANT!
Once the SiXC2W is calibrate, any change in the
zone resistance the module must be
re-calibrated.
