Panasonic TX-32LXD500 Service Manual

Specifications
Power Source
Power Consumption
LCD
Visible screen Size
Sound
Speaker
Audio Output
Headphones
Scanning format
PC signals
AC 220 - 240 V, 50 / 60 Hz
Average use : 138 W (0.8 A) (TX-26LXD500)
Average use : 172 W (1.0 A) (TX-32LXD500)
Standby condition :
0.4 W (Without DVB Timer programmes)
18 W (With DVB Timer programmes)
Average use : 131 W (TX-26LX500F/P)
Average use : 165 W (TX-32LX500F/P)
Standby condition : 0.4 W
Wide XGA (1,366 × 768 pixels)
16 : 9 aspect ratio LCD panel
66.1 cmV, 564.8 mm (W) × 317.6 mm (H) (TX-26LXD500, TX-26LX500F/P)
80.0 cmV, 697.3 mm (W) × 392.0 mm (H) (TX-32LXD500,TX-32LX500F/P)
Woofer Ø80 mm × 2 pcs, Tweeter 16 mm × 73 mm ×4 pcs
20 W (5 W + 5 W, 5 W + 5 W )
M3 (3.5 mm) Jack × 1
480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(50Hz), 720p(60Hz), 1080i(50Hz),
1080i(60Hz)
XGA display
VGA, SVGA, XGA
SXGA...... (compressed)
Horizontal scanning frequency 31 - 69 kHz
Vertical scanning frequency 59 - 86 Hz
TX-32LXD500
TX-26LXD500
TX-32LX500F
TX-32LX500P
TX-26LX500F
TX-26LX500P
LH41 Chassis
© 2005 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
ORDER NO. PCZ0505058C2

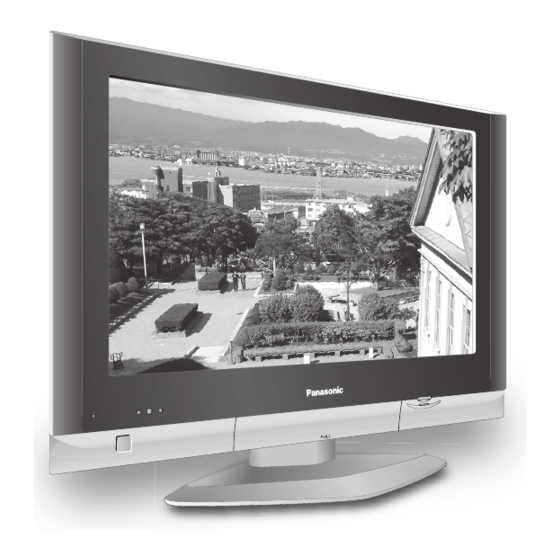

Wide LCD TV
Unauthorized copying and
