Viptela vEdge 100m Quick Start

Install the vEdge 100m Router

Once you have prepared your site for router installation, unpack the vEdge 100m router and install the SIM card and the

antennas before you mount the router on the wall.

A vEdge 100m router is shipped in a cardboard carton and is secured firmly in place with foam packing material. The

carton contains a

packing list

are ready to install it.

To unpack the router:

1. Open the top flaps of the carton.

2. Gradually remove the packing foam holding the router and the accessories in place. See Figure 1.

3. Take out the router and each accessory.

4. Verify the router components against the packing list included in the box (see packing list below).

Note: It is recommended that you not discard the shipping carton and packing material when you unpack the router.

Flatten and store the box in case you need to move or return the router in the future. See

https://sdwan-docs.cisco.com/Product_Documentation/vEdge_Routers/vEdge_100m_Router/03Planning_and_Installation/02Install_the_v

Created on: Thu, 16 May 2019 03:05:43 GMT

Generated by: Anonymous

and

Quick Start

instructions. It is recommended that you not unpack the router until you

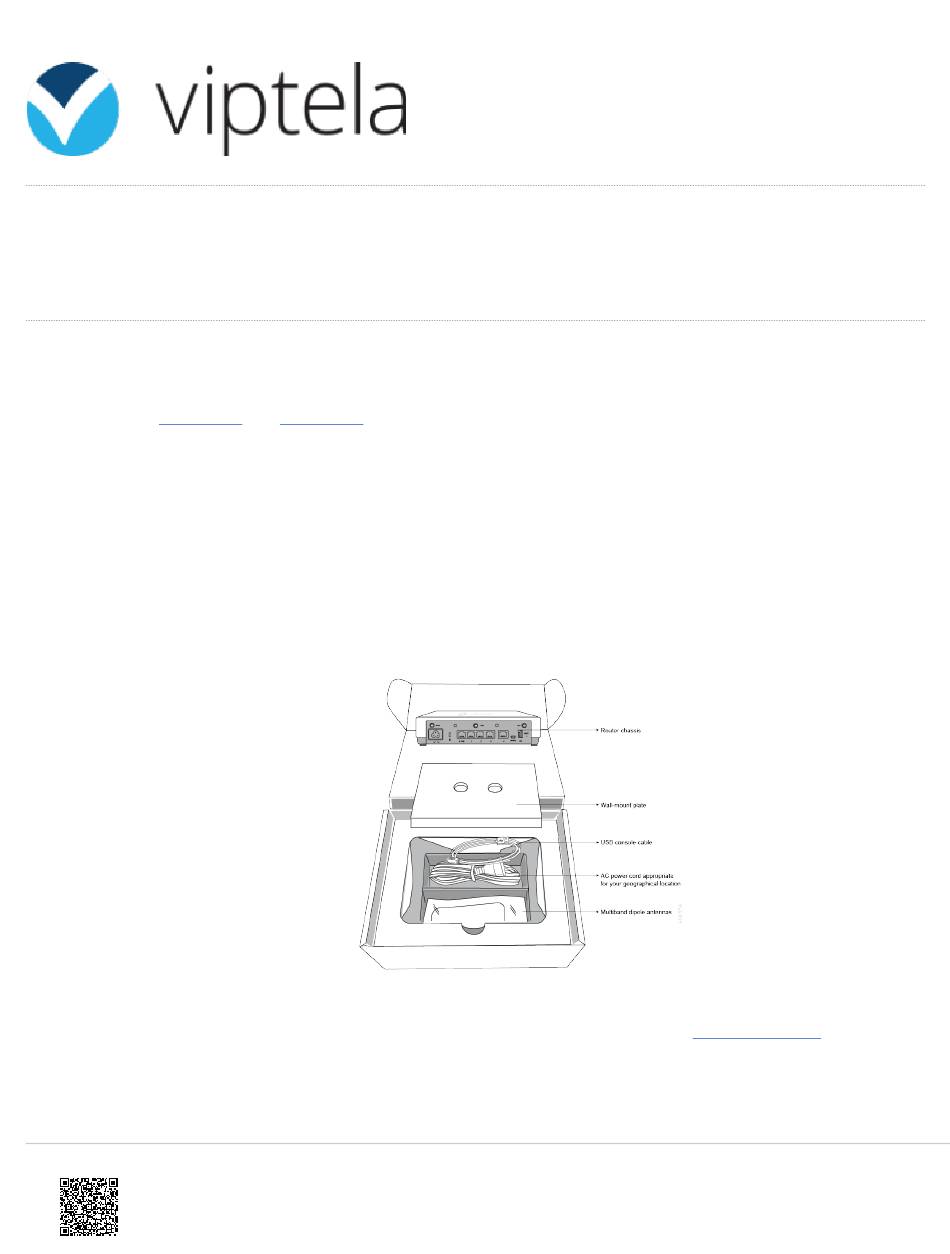

Figure 1: Unpacking the vEdge 100m Router

Return

Hardware.

Table of Contents

Do you have a question about the vEdge 100m and is the answer not in the manual?

Page 1 Install the vEdge 100m Router Once you have prepared your site for router installation, unpack the vEdge 100m router and install the SIM card and the antennas before you mount the router on the wall. Unpack the vEdge 100m Router A vEdge 100m router is shipped in a cardboard carton and is secured firmly in place with foam packing material.
Page 2 Install the SIM Card Into the vEdge 100m Router Before you connect power to the vEdge 100m router, you must install the SIM card that you received from your carrier. The SIM card socket is located on the bottom of the vEdge 100m chassis. See Figure 2.
Page 3 To install the SIM card into the socket: 1. Unscrew the socket cover and open it. Figure 3: Opening the Socket Cover 2. Slide the SIM card holder cover towards the socket cover hinge and open it. Figure 4: Opening the SIM Card Holder Cover 3.
Page 4 Attach the Antennas to the vEdge 100m Router The rear panel of the vEdge 100m router has two antenna terminals. To attach the multiband antennas to the router: 1. Screw one antenna into the terminal marked MAIN, and screw the other antenna into the terminal marked DIV.
Page 5: Additional Information
Then gently slide the router chassis down onto the notches. Figure 10: Mounting the vEdge 100m Router on the Mounting Plate 3. Secure the router with a Kensington security lock using the slot in the rear of the chassis.
