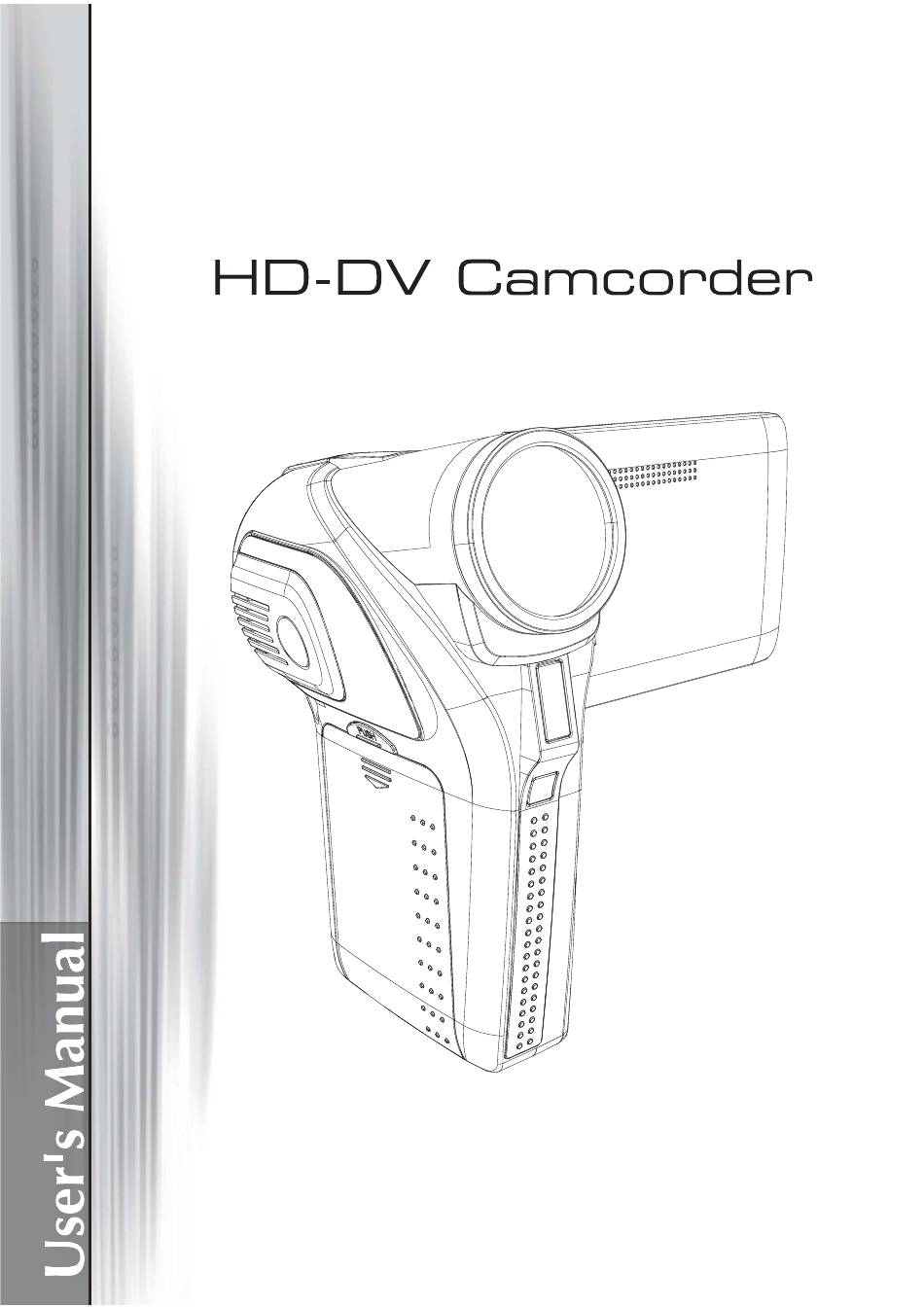

AIPTEK AHD Z700 User Manual

Hd-dv
Hide thumbs Also See for AHD Z700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AHD Z700 and is the answer not in the manual?

Questions and answers

Related Manuals for AIPTEK AHD Z700

Summary of Contents for AIPTEK AHD Z700

  • Page 2 Welcome: Dear user, thanks for purchasing this product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. Safety Notice: 1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided. 2.
  • Page 3 Umweltschutz Geben Sie das Gerät am Ende der Lebensdauer nicht in den normalen Haus- Weise helfen Sie die Umwelt zu schonen. Environnement Ambiente portalo presso uno dei punti di raccolta autorizzati. In questo modo contribuirai a preservare l’ambiente. Medio ambiente Cuando vaya a deshacerse de este aparato, no lo tire con la basura normal del contribuirá...
  • Page 4 Sicherheitshinweise: 1. Lassen Sie die Kamera nicht fallen und beschädigen und zerlegen Sie die Kamera nicht, andernfalls erlischt die Gewährleistung. ab, bevor Sie es verwenden. 3. Setzen Sie die Kamera keinen hohen Temperaturen aus und lassen Sie das Gerät nicht in direkter Sonneneinstrahlung liegen.
  • Page 5 Aviso de seguridad: 1. No deje caer, perfore ni desmonte la cámara; si lo hace, la garantía quedará invalidada. 3. No exponga la cámara a altas temperaturas ni la deje donde incida sobre ella la luz directa del sol. Si lo hace, la cámara puede resultar dañada. 5.
  • Page 6 kamery. uszkodzenie.

  • Page 7: Table Of Contents

    Getting Started..............1 Knowing your camcorder parts ............. 1 Installing the battery................2 Charging the battery ................2 Inserting a memory card (optional) ............2 Turning on/off your camcorder.............. 2 Setting language................... 3 Reading LCD indicators................ 3 Basic Operations ............4 Recording a video clip ................

  • Page 8: Getting Started

    Getting Started Knowing your camcorder parts Microphone Speaker Microphone Flash strobe Battery cover SD/MMC card slot OK key/ Joystick 5-way AV connector/ Zoom (in/out) button Shutter button Strap hook Delete button Macro mode switch Flash switch AF lock switch...

  • Page 9: Installing The Battery

    1. Press the 2. Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment. 3. After the battery is properly installed, replace the battery cover. Charging the battery 1.

  • Page 10: Setting Language

    Setting language 1. Power on the camcorder. 2. Press the key to enter the menu. 3. Use the Joystick switch to select the Setting mode and press OK to enter the menu screen. 4. Use the Joystick to select the item, and then Press OK 5.

  • Page 11: Basic Operations

    Basic Operations 1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close- up pictures, you can push the Up button to switch to Macro mode ( 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen. 3.

  • Page 12: Taking A Still Picture

    1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close- up pictures, you can push the Up button to switch to Macro mode ( 2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen.

  • Page 13: Playing Back Your Recordings

    1. Press the button and use the Joystick to switch to “My Works” mode. Or press the button ( ) on the left side of the LCD monitor. 2. There are three folders below My works: OK key to enter the index mode. 3.

  • Page 14: Playing Back Your Recordings On Pc

    Please notice that the recorded videos are .mov format. So you need some special QuickTime 7.0 (or above) player on your PC. If not, please download the QuickTime player from the website. Please install the software on the bundled CD. After the software is properly installed on your PC, please follow the procedures listed below.
  • Page 15 Please follow the below instructions to connect your camcorder and and family. HD high resolution quality while connected. HD TV (green) Component Video in (blue) (red) (red) (white) Component Audio in (yellow) <AV cable> HD OUT (Do not plug in Yellow Cable) <Component Video cable>...
  • Page 16 AV mode Video Audio AV cable 3. Power on the camcorder.

  • Page 17: Advanced Operations

    Advanced Operations Menu operation The following table gives details on menu operations. How to... Action Bring up the menu Press the button. Move the highlight bar Use the Joystick to move up or down. Press the OK key. Exit menu/Go back to upper menu Press the button (when in sub-menu).

  • Page 18: Menu Items In Playback Mode

    Menu items in Camera mode (continued) Option Description Continuous Shot On/Off Enable/Disable continuous shot function. (at video resolution) Auto The camera automatically adjusts white balance. Sunny This setting is suitable for outdoor recording in sunny weather. This setting is suitable for recording in cloudy weather or shady Cloudy White environments.

  • Page 19: Menu Items In Setting Mode

    Menu items in Setting mode Setting ( the OK button. Option Description Clock Set date and time. Language Let you select the language used for OSD. Disable beep sound. Beep Enable beep sound. Shutter On Disable beep sound, but keep Shutter sound. Start Movie On/Off Enable/Disable start movie function.

  • Page 20: Battery Life Indicator

    Menu items in Setting mode (continued) * Flicker settings table: England Germany France Italy Spain Netherlands Russia Setting 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz 50Hz Portugal America Taiwan China Korea Thailand Setting 50Hz 60Hz 60Hz 50Hz 50/60Hz 60Hz 50Hz Description Full battery life Moderate battery life Low battery life...

  • Page 21: Storage Capacity

    Storage Capacity Still picture Memory HD 1080P 30f / HD 720P 30f / HD 720P 60f SD card (256MB) SD card (512MB) SD card (1GB) SD card (2GB) 1160 1840 SD card (4GB) 1540 2320 3680 Note: The actual value of capacity may vary (up to ± 30%) depending on the color saturation and complexity of your subject and surroundings.
  • Page 22 Description Model 5 Mega-pixel camera Image sensor 5 Mega (2592x1944 pixels) Still image: 3M(2048x1536); 5M(2592x1944); 8M(3200x2400) 1440x1080 (HD 1080P) Resolution 1280x720 (HD 60f) 1280x720 (HD 30f) Lens Optical zoom lens Digital zoom File format 1440x1080, up to 30fps (HD 1080P) 1280x720, up to 60fps (HD 60f) 1280x720, up to 30fps (HD 30f) Internal memory...
