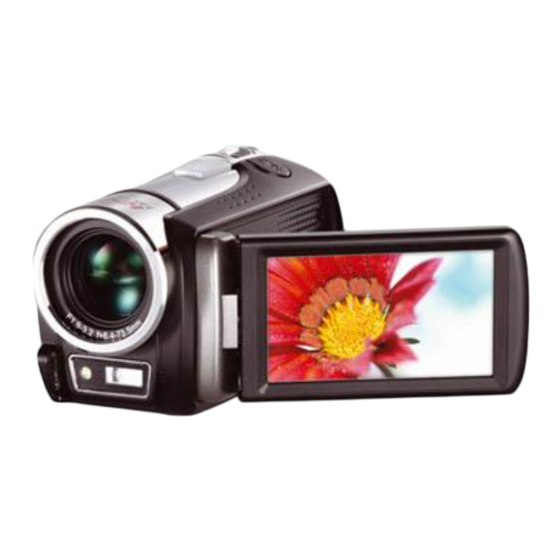

AIPTEK AHD-H12 Manual

5 mega-pixel camera
Hide thumbs Also See for AHD-H12:
Table of Contents
  • Deutsch

    • Erste Schritte

      • Die Komponenten des Camcorders
      • Die Tasten
      • Einlegen des Akkus
      • Einstecken einer Speicherkarte (Optional)
      • Ein-/Ausschalten des Camcorders
      • Einstellen der Sprache
      • Ablesen der LCD-Anzeigen
    • Grundfunktionen

      • Aufzeichnen eines Videoclips
      • Aufzeichnen eines Audioclips
      • Aufnehmen eines Fotos
      • Wiedergeben der Aufzeichnungen
      • Wiedergeben der Aufnahmen auf dem PC
      • Installieren der Software
      • Verbinden des Camcorders mit einem Fernsehgerät
    • Erweiterte Funktionen

      • Menüelemente IM Kameramodus
      • Menüelemente IM Einstellungsmodus
      • Akkuladestandanzeige
      • Akkulaufzeit
      • Speicherkapazität
      • Systemvoraussetzungen
  • Français

    • Pour Commencer

      • Connaitre Les Fonctions de Votre Caméscope
      • Présentation des Boutons
      • Installer la Batterie
      • Chargement de la Batterie
      • Insertion D'une Carte Mémoire (Facultatif)
      • Allumer/Éteindre Votre Caméscope
      • Réglage de la Langue
      • Lire Les Indicateurs LCD
    • Fonctionnnements de Base

      • Enregistrer un Clip VIDéo
      • Enregistrement D'un Clip Audio
      • Prendre Une Photo Statique
      • Réécouter Vos Enregistrements
      • Relire Vos Enregistrements Sur PC
      • Installation du Logiciel
      • Relier Le Caméscope À un Téléviseur
    • Options Avancées

      • Les Éléments du Menu du Mode Caméra
      • Les Éléments du Menu du Mode Réglage
      • Indicateur D'autonomie de la Batterie
      • Autonomie de la Batterie
      • Capacité de Stockage
  • Italiano

    • Preparazione

      • Conoscere la Parti Della Videocamera
      • Introduzione Ai Tasti
      • Inserimento Della Batteria
      • Caricamento Della Batteria
      • Inserimento DI una Scheda Memoria (Optional)
      • Accendere E Spegnere la Videocamera
      • Impostazione Della Lingua
      • Lettura Degli Indicatori del Display LCD
    • Operazioni DI Base

      • Registrazione DI una Sequenza Video
      • Registrazione DI una Sequenza Audio
      • Fotografare
      • Riproduzione Delle Registrazioni
      • Riproduzione Delle Registrazioni Sul PC
      • Installazione del Software
      • Collegamento Della Videocamera al Televisore
    • Operazioni Avanzate

      • Voci del Menu in Modalità Fotocamera
      • Voci del Menu in Modalità Impostazione
      • Indicatore DI Carica Della Batteria
      • Durata Della Batteria
      • Capacità D'archiviazione
      • Requisiti del Sistema
  • Dutch

    • Aan de Slag

      • Kennismaken Met de Onderdelen Van Uw Camcorder
      • Inleiding Tot de Knoppen
      • De Batterij Plaatsen
      • De Batterij Opladen
      • Een Geheugenkaart Plaatsen (Optioneel)
      • Uw Camera In-/Uitschakelen
      • De Taal Instellen
    • Basisbewerkingen

      • Een Videoclip Opnemen
      • Een Spraakopname Maken
      • Een Foto Maken
      • Uw Opnamen Afspelen
      • Uw Opnamen Afspelen Op Een Pc
      • De Software Installeren
      • De Camcorder Aansluiten Op Een Tv
    • Geavanceerde Bewerkingen

      • Menu-Items in de Cameramodus
      • Menu-Items in de Instellingsstand
      • Indicator Levensduur Batterij
      • Levensduur Batterij
      • Opslagcapaciteit
      • Systeemvereisten
      • Aviso de Seguridad
  • Español

    • Procedimientos Iniciales

      • Introducción a las Partes de la Videocámara
      • Introducción a Los Botonesn
      • Instalar la Batería
      • Cargar la Batería
      • Insertar una Tarjeta de Memoria (Opcional)
      • Encender y Apagar la Videocámara
      • Establecer el Idioma
      • Leer Los Indicadores LCD
    • Funcionamiento Básico

      • Grabar un Clip de Vídeo
      • Grabar un Clip de Voz
      • Capturar una Imagen Estática
      • Reproducir las Grabaciones
      • Reproducir las Grabaciones en PC
      • Instalar el Software
      • Conectar la Videocámara a un Televisor
    • Funcionamiento Avanzado

      • Elementos de Menú en el Modo Cámara
      • Indicador de Carga de la Batería
      • Duración de la Batería
      • Capacidad de Almacenamiento
      • Requisitos del Sistema
  • Português

    • Como Começar

      • Introdução de Botões
      • Instalação da Bateria
      • Carregar a Bateria
      • Introdução de um Cartão de Memória (Opcional)
    • Operações Básicas

      • Gravação de um Clip de Vídeo
      • Gravação de um Clip de Voz
    • Operações Avançadas

      • Primeiros Passos
        • Introdução para os Botões
        • Instalação da Bateria
        • Carregando a Bateria
        • Inserindo um Cartão de Memória (Opcional)
        • Leitura Dos Indicadores LCD
      • Operações Básicas
        • Gravação de um Videoclipe
        • Gravando um Clipe de Voz
        • Como Tirar Uma Foto Estática
        • Reproduzindo Suas Gravações
        • Reproduzindo Suas Gravações no PC
      • Operações Avançadas
        • Itens Do Menu no Modo Câmera
        • Indicador de Carga da Bateria
        • Vida Útil da Bateria
        • Capacidade de Armazenamento
        • Requisitos Do Sistema
  • Svenska

    • Komma Igång

      • Känna Till Videokamerans Delar
      • Introduktion Till Knapparna
      • Sätta I Batteriet
      • Ladda Batteriet
      • Sätta in Ett Minneskort (Tillval)
      • Sätta På/Stänga Av Projektorn
      • Ställa in Språk
      • Avläsa Indikatorlampor
    • Grundläggande Funktioner

      • Spela in Ett Videoklipp
      • Spela in Ett Ljudklipp
      • Ta en Stillbild
      • Spela Upp Inspelningarna
      • Spela Upp Inspelningar På en Dator
      • Ansluta Videokameran Till en TV
    • Avancerade Funktioner

      • Menyposter I Läget Kamera
      • Menyposter I Läget Inställning
      • Batteriindikator
      • Batteritid
      • Lagringskapacitet
      • Systemkrav
