Anti-Scalp Wheel (41" Deck) - Snapper Lawn Mower Accessory Parts Manual

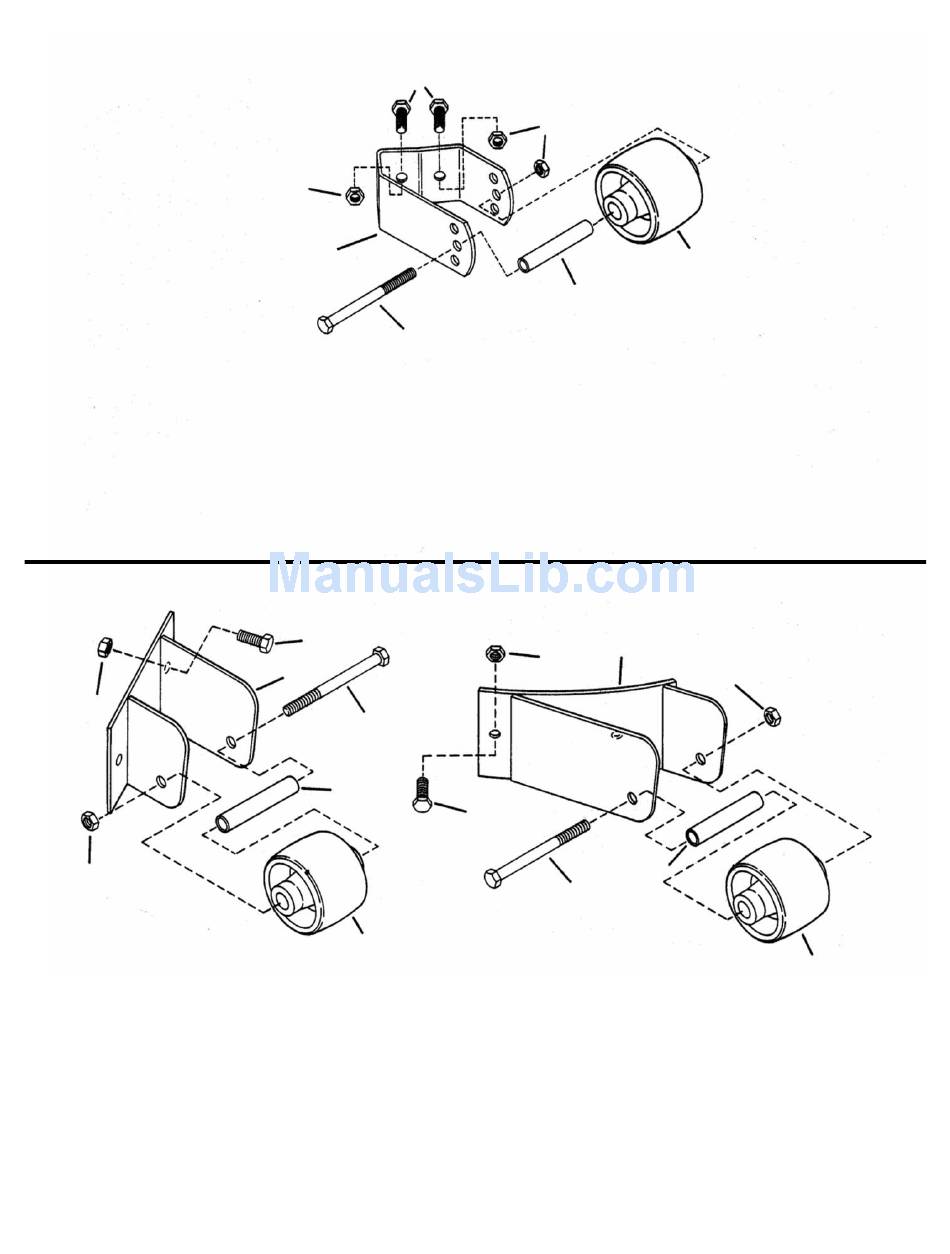

ACCESSORY, ANTI-SCALP 6-0737
ITEM
--
1
2
3
4
5
6
ACCESSORY, ANTI-SCALP 6-0794
6
6
ITEM
--
1
2
3
4
5
6
7
MANUAL No. 06613
6
5
1
4
PART NO. DESCRIPTION
6-0737 KIT, Anti-Scalp Wheel (33" Decks) (Includes items 1 thru 6)
3-2478 BRACKET, Wheel (2)
1-9190 WHEEL (2)
1-5272 SPACER (2)
9-0859 SCREW, 3/8-24 x 3-3/4" Hex Head Cap, Grade 5 (2)
9-0289 NUT, 3/8-24 Hex Center Lock (6)
9-0292 SCREW, 3/8-24 x 3/4" Hex Head Cap, Grade 2 (4)
7
1
5
4
3
PART NO. DESCRIPTION
6-0794 KIT, Anti-Scalp Wheel (41" Decks) (Includes items 1 thru 7)
4-7913 BRACKET, R.H.
4-7914 BRACKET, L.H.
1-9190 WHEEL (2)
1-5272 SPACER
9-0859 SCREW, 3/8-24 x 3-3/4" Hex Head Cap, Grade 5 (2)
9-0289 NUT, 3/8-24 Hex Lock Center Lock (6)
9-0292 SCREW, 3/8-24 x 3/4" Hex Head Cap, Grade 2 (4)
5
3
2
6
7
5
10
2
6
4
3
LT SERIES (Small Frame)
