4. OPERATION continued
9. Place a funnel in stopper hole at the top of the Cathode Solution Cell (G) and pour entire
contents of KAM
®
Remove funnel and place the glass Stopper (H) in place.
NOTE: Generator Solution C ampule is glass. To open, hold the ampule in a paper or cloth towel,
and apply pressure to the top of the ampule just above the small dot. Top should cleanly snap off
the base of the ampule.

BASE ASSEMBLY

NOTE: Before assembling the base unit and glassware, ensure that the unit has been turned off.
1. Turn the swivel clamp toward back of KF unit and place the entire Generator Solution Cell
assembly into the Titration Cell Sleeve. Turn Swivel Clamp over the top of the cell and secure by
hand tightening the screw on top of the clamp. Do not over tighten.
Plug the free end of the Cathode Solution Cell Wire into the black colored jack on the side
2.
panel of the base unit, and the free end of the Detector Electrode Wire into the red colored jack.
3.
If using a portable unit, remove the power cord from packing or storage compartment and plug
into the power jack on the back of the base. Plug unit into power source and press power but-
ton.
The power button should glow blue. If you are using a portable unit, the light will blink when the
4.
battery is charging. The LCD display should show the Main Menu.
KFMANUAL 0317
Generator Solution C (5 ml) ampoule into the Cathode Solution Cell (G).

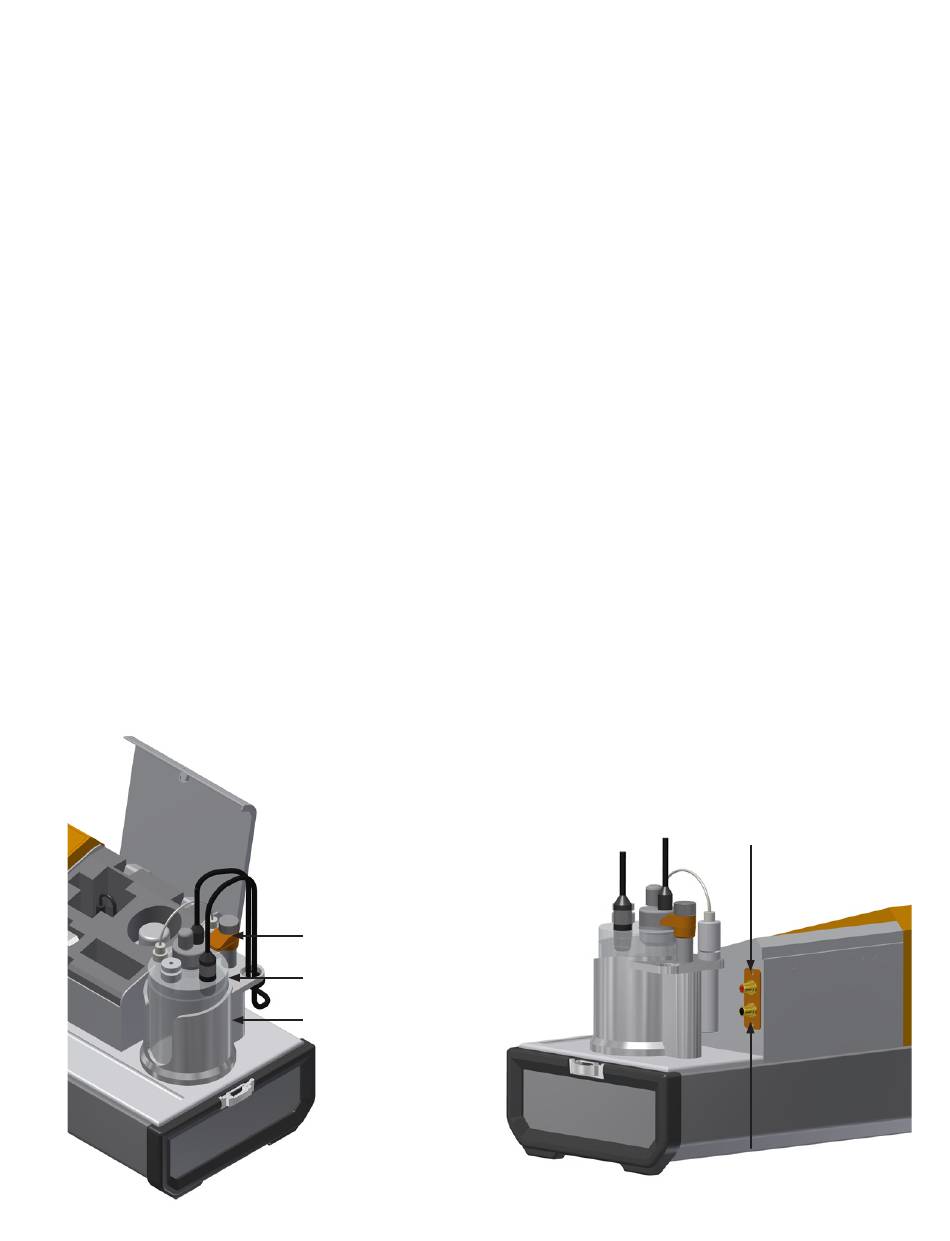

Swivel Clamp
Titration Cell Assembly
Titration Cell Sleeve
8
Detector Electrode
Jack (red)
Cathode Solution
Cell Jack (black)
