I N S TA L L AT I O N
PRIOR TO INSTALLATION
Remove all the protective packaging materials , and ensure that the CHA™ sensor was not damaged
during transit.
INSTALLATION DOs and DONTs
Do not install the CHA in direct sunlight
Ensure there is no entrained air in the line or excessive levels
of organic compounds such as rouge.
CHA should be installed after a minimum of 4 pipe diameters
of straight run to reduce flow turbulence. Fig. 3-1
The CHA should be installed on a vertical line. If the unit
must be intalled on a horizontal line, it should be at 3 or 9
o'clock position. Fig. 3-2
The KAM CHA probe must be oriented so that the flow
indicator is parallel to the flow direction of the pipe to
enable flow through the measurement window. Fig. 3-3
FIG. 3-2 HORIZONTAL INSTALLATION
9 O'clock
NOTE: Installation at the 12 O'clock or 6 O'clock position
could result in the accumulation of fluid contaminents
(dirt, etc.) on the lenses, causing measurement malfunc-
tion.
CHAMANUAL 0917

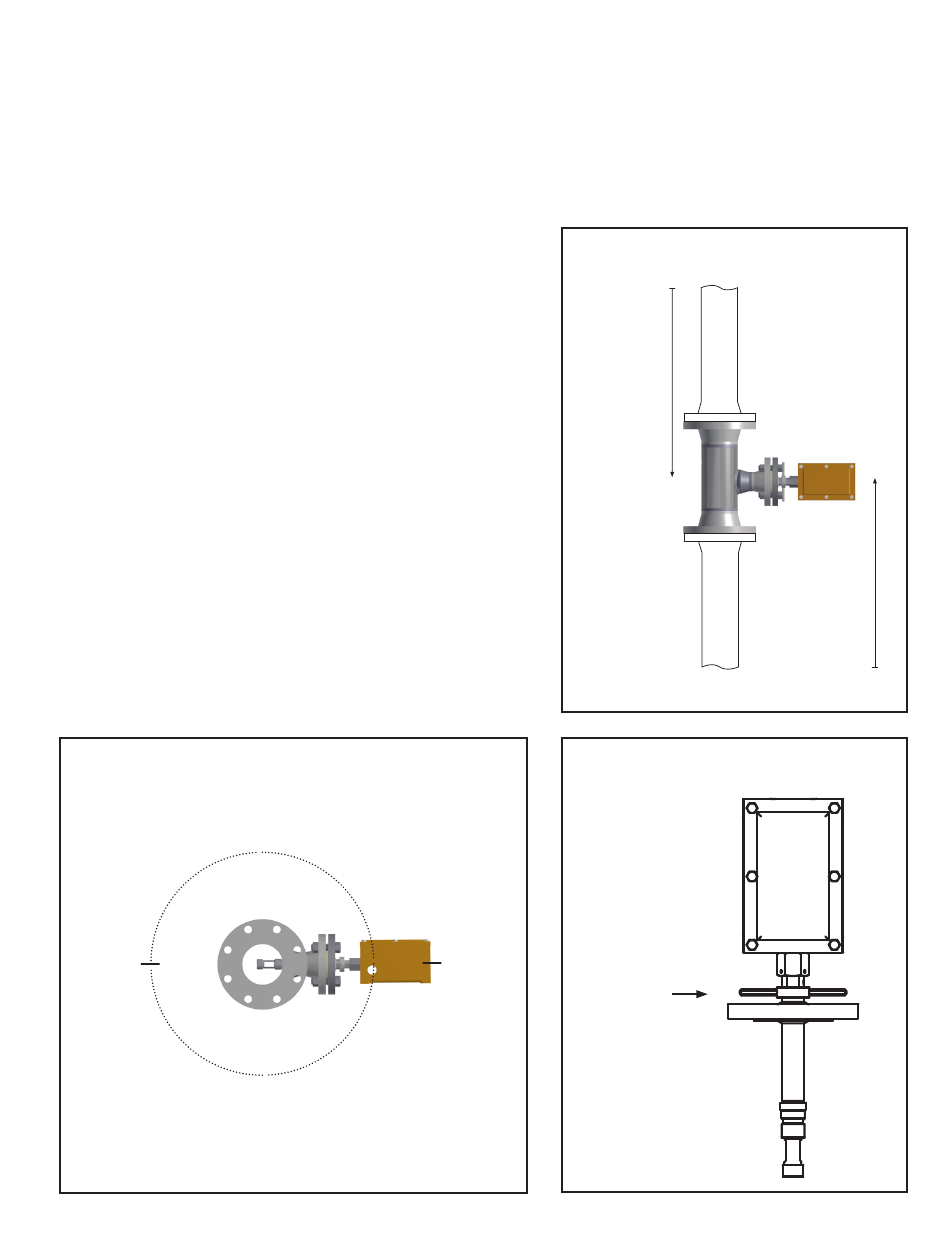

FIG. 3-1 VERTICAL INSTALLATION
MINIMUM 4 PIPE
DIAMETERS BEFORE
FIG. 3-3
3 O'clock
Flow
indicator
7
METER
MINIMUM 4 PIPE
DIAMETERS BEFORE
