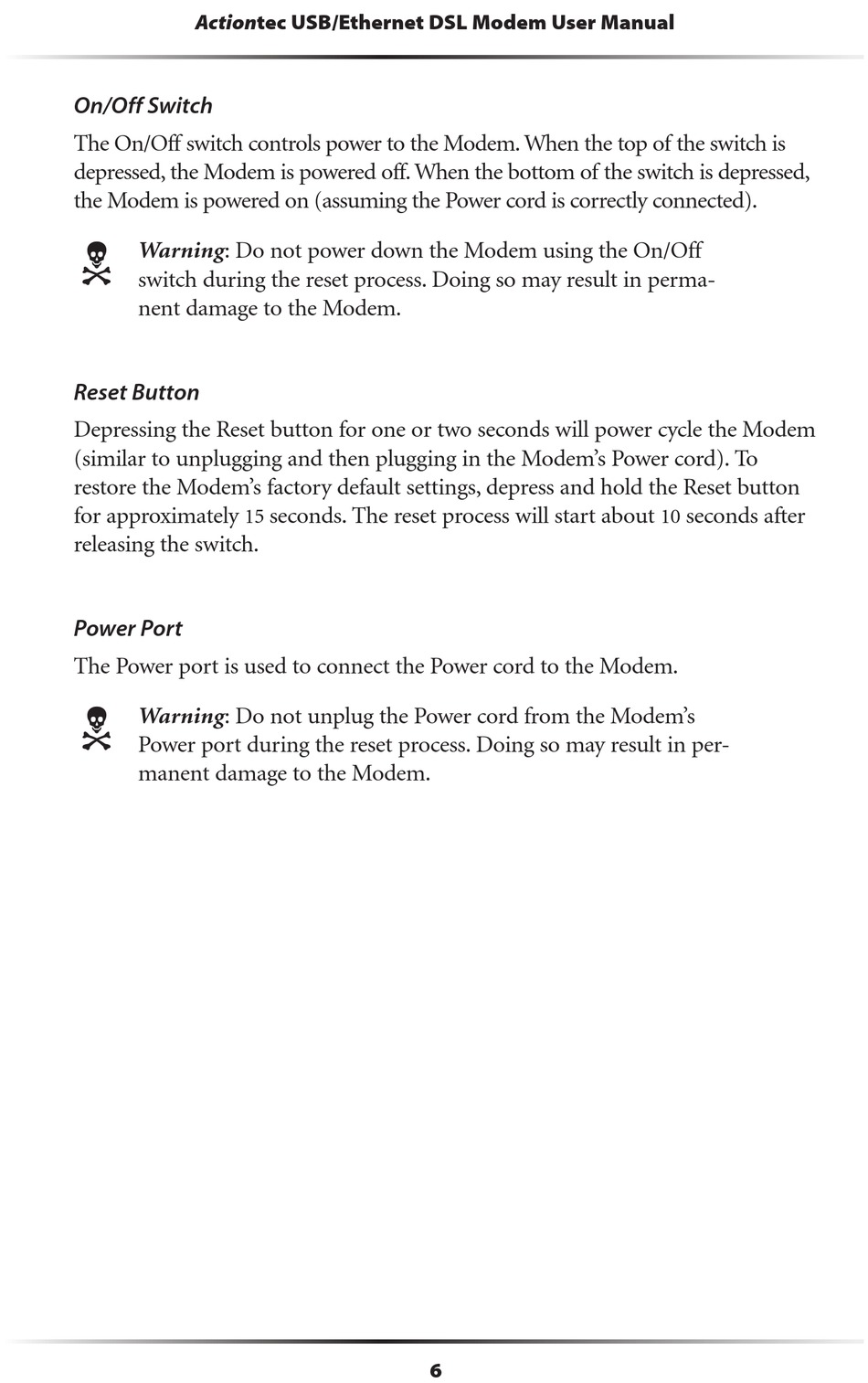

Actiontec USB/Ethernet DSL Modem User Manual
On/Off Switch
The On/Off switch controls power to the Modem. When the top of the switch is
depressed, the Modem is powered off. When the bottom of the switch is depressed,
the Modem is powered on (assuming the Power cord is correctly connected).
N
Warning: Do not power down the Modem using the On/Off
switch during the reset process. Doing so may result in perma-
nent damage to the Modem.
Reset Button
Depressing the Reset button for one or two seconds will power cycle the Modem
(similar to unplugging and then plugging in the Modem's Power cord). To
restore the Modem's factory default settings, depress and hold the Reset button
for approximately
releasing the switch.
Power Port
The Power port is used to connect the Power cord to the Modem.
N
Warning: Do not unplug the Power cord from the Modem's
Power port during the reset process. Doing so may result in per-
manent damage to the Modem.
seconds. The reset process will start about
15
6
seconds after
10
