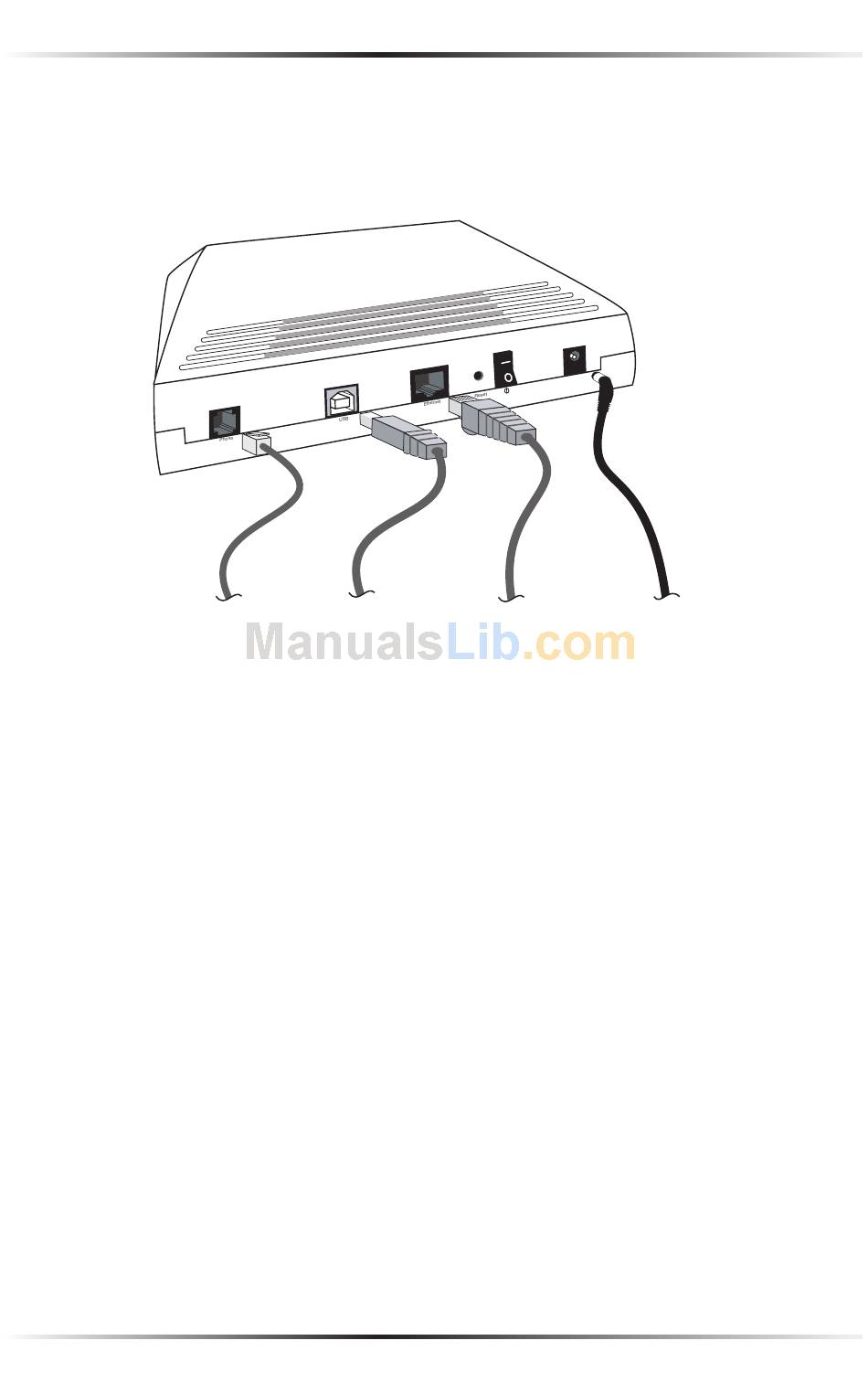

Rear Panel

The rear panel of the Modem contains four ports (Phone, USB, Ethernet, and
Power), as well as an On/Off switch and Reset button.
Gray DSL Cable
(from gray Phone
port to Phone Jack)

Phone Port

The Phone port is used to connect the Modem to a phone jack.
USB Port
The port is used to connect a computer to the Modem via
USB

Ethernet Port

The Ethernet port is used to connect a computer to the Modem via Ethernet
cable. The Ethernet port is a
through or crossover Ethernet cable can be used when connecting to the port.

Chapter 1 Introduction

Yellow Ethernet Cable
Blue USB Cable
(from blue USB (from yellow Ethernet
port to Computer) port to Computer)
Mbps auto-sensing port, and either a straight-
10/100
5
r
P o w e
Black Power Cord
(from black Power
port to Power Outlet)
cable.
USB
