Summary of Contents for Jaclyn Smith Avondale High Bistro
Page 1

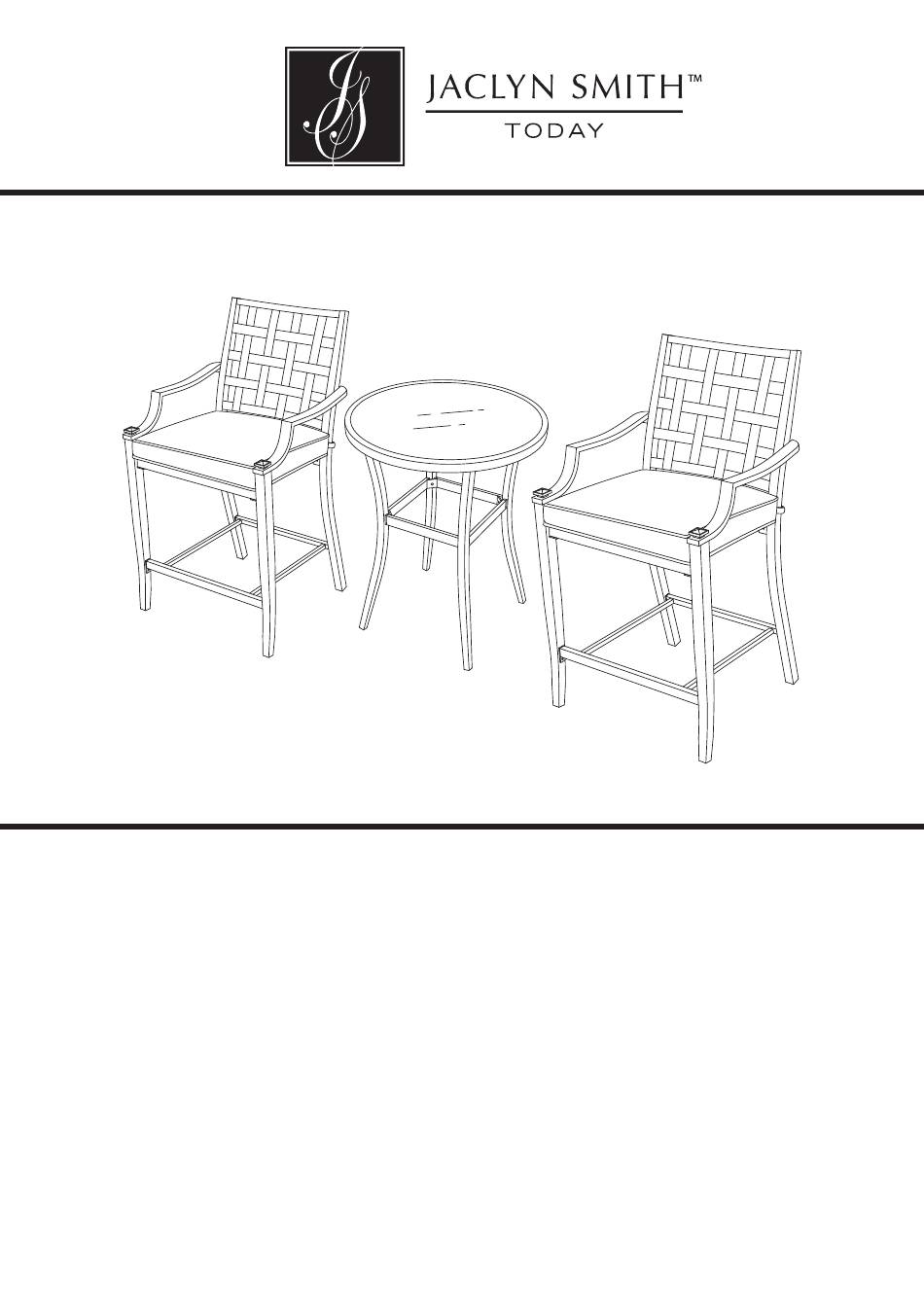

OWNER’S MANUAL AVONDALE HIGH BISTRO Product code: 0-02639993-1 UPC code: 095457142786 Date of purchase: _____/ _____/ _____...
Page 2
High Bar Table Item# S47A81 Assembly Instructions Part List Item No. Description Table Top Leg Support Screw 16mm Bolt BEFORE YOU START: Washer Check package for completeness using the parts list. Carefully remove all packing material and place items on a clean, non-abrasive surface. Allen Driver For best results, use a power drill to tighten all bolts.
Page 3
REPLACEMENT PARTS LIST For customer service, please call toll free 1-800-585-9969, 9:00 am - 5:00 pm (Pacific Time), Monday through Friday. Part Description TABLE TOP LEG SUPPORT SCREW 16MM BOLT WASHER ALLEN DRIVER ADJUSTABLE FOOT...
Page 4
Part List High Bar Chair Item No. Description Item# S13A26 Chair Back Assembly Instructions Chair Arm Chair Seat Chair Support Seat Cushion 13mm Bolt 16mm Bolt 30mm Bolt BEFORE YOU START: Check package for completeness using the parts list. Carefully remove all Washer packing material and place items on a clean, non-abrasive surface.
Page 5
REPLACEMENT PARTS LIST For customer service, please call toll free 1-800-585-9969, 9:00 am - 5:00 pm (Pacific Time), Monday through Friday. Part Description CHAIR BACK CHAIR RIGHT ARM CHAIR LEFT ARM CHAIR SEAT CHAIR SUPPORT SEAT CUSHION 13MM BOLT 16MM BOLT 30MM BOLT WASHER ALLEN DRIVER...
Page 6
Please refer to part numbers when reordering For questions or comments about product: Call toll-free: 1-800-585-9969 Monday-Friday 9AM-5PM (Pacific Time) Made in / Hecho en CHINA for Kmart Corporation, Hoffman Estates, IL 60179 See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
