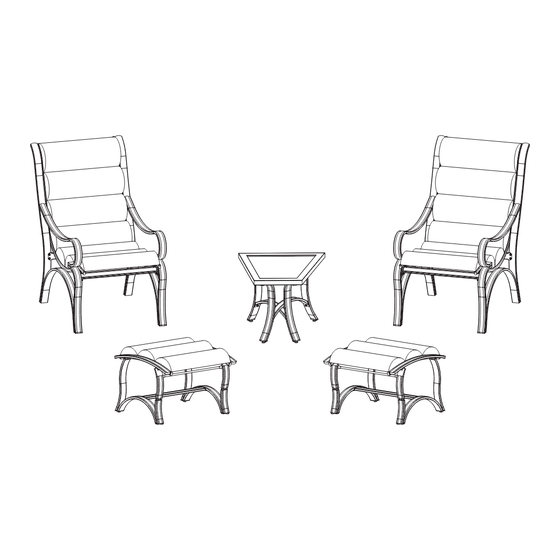

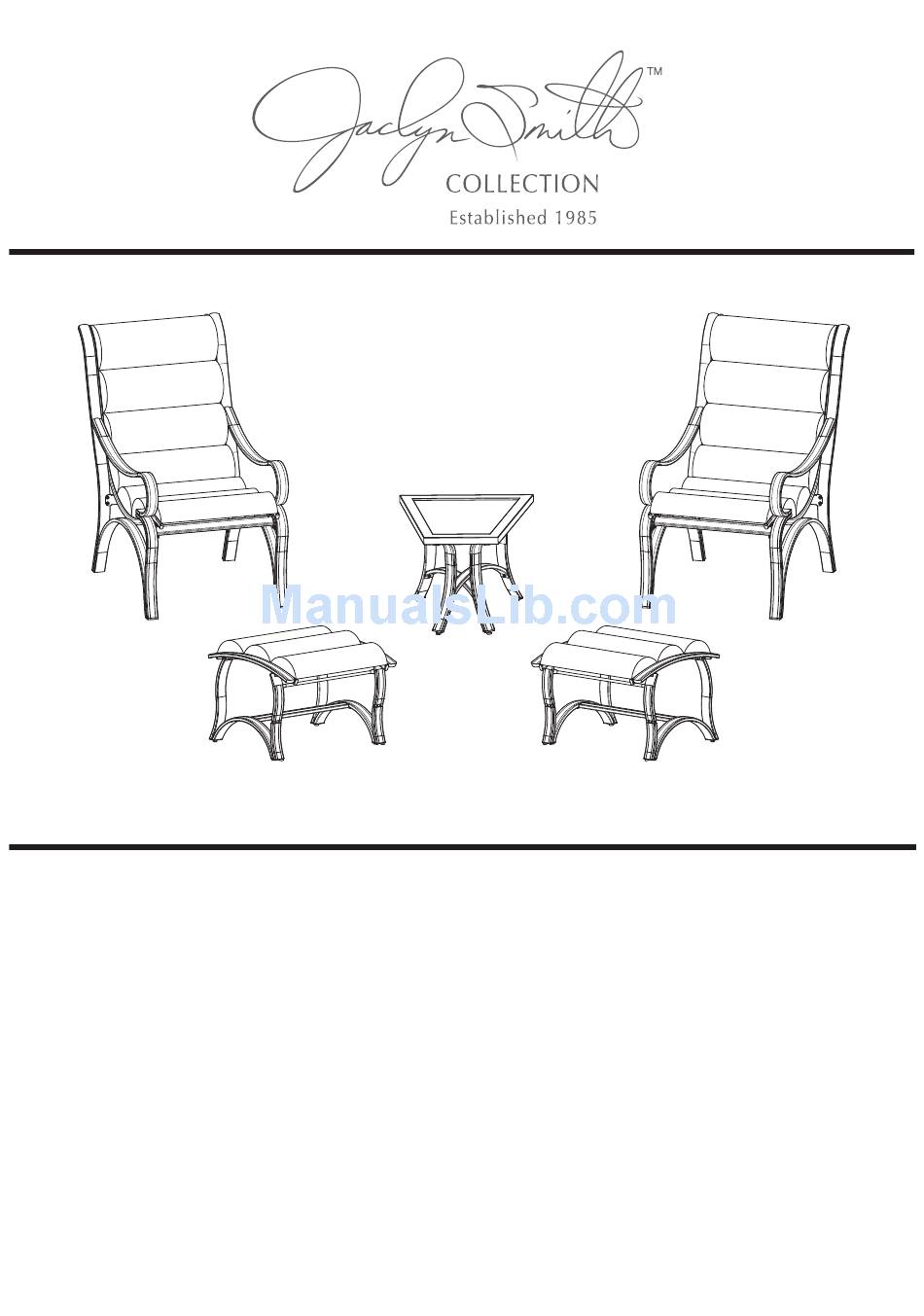

- Page 1 USE AND CARE GUIDE Marion 5pc Seating Set Product code: 0-07566275-9 UPC code: 769455 770004 Vendor Item: SC-K-637/5 Date of purchase: _____/ _____/ _____...
-
Page 2: Table Of Contents
Thank you for your purchase Thank you for your purchase We are pleased that you have chosen Kmart for your outdoor furniture purchase. We hope that you enjoy the unmatched quality, comfort, and style of your new patio set. Every piece is meticulously considered all the way down to the smallest details, exclusively for you, by our world class design team. -
Page 3: Safety Information
Safety Information SET UP YOUR FURNITURE PROPERLY Ensure that all parts are assembled properly and fully tightened as per the instructions. When placing in the desired location, ensure that all legs are resting on the same surface. You may adjust the legs levelers as required to ensure that the item stands in a rigid position. -
Page 4: Care And Maintenance
Care and Maintenance Though its powder-coated finish is rust-resistant, steel is prone to rust over time with exposure to the elements. In case of rust or scratches, lightly sand the affected area and apply touch-up paint. To maintain the finish periodically apply wax with a soft cloth. Wash frames and cushions with a mild solution of soap and water;... -
Page 5: Assembly Instructions
Assembly Instructions Package Contents ITEM DESCRIPTION QUANTITY Left Arm Right Arm Seat and Back Chair Connect Bar Attaching the chair connect bar to the arms Ia x 4 Short Bolt Id x 4 Metal Washer Repeat procedure for the other side. - Page 6 Assembly Instructions Attaching the sling seat and back to the arms Ib x 4 Medium Bolt Id x 8 Metal Washer Ie x 4 Repeat procedure for the other side. Attaching the seat and back to the arms Ic x 4 Long Bolt Id x 4 Metal Washer...
-
Page 7: Table
Assembly Instructions Turning the chair over Securely tighten all bolts and nuts. Repeat procedure for the other chair. Package Contents ITEM DESCRIPTION QUANTITY TableTop Rim (8 Bolts and 8 Metal Washers attached) Table Leg (1 Bolt and 1 Metal Washer attached for each) Table Leg Connect Bar (1 Bolt and 1 Metal Washer attached) Table Leg Connect Bar Glass... - Page 8 Assembly Instructions Attaching the table connect bar to another table connect bar Ic x 1 Long Bolt (remove from the table connect bar G1) Id x 1 Metal Washer (remove from the table connect bar G1) Attaching the leg to the tabletop rim Ia x 8 Short Bolt (remove from the table rim)
- Page 9 Assembly Instructions Attaching one table leg connect bar(G1) to the table legs and then attaching one table leg connect bar(G2) to the table legs Ia x 4 Short Bolt (remove from the table leg) Id x 4 Metal Washer (remove from the table leg) Repeat procedure for the other side.
-
Page 10: Ottoman
Assembly Instructions Package Contents ITEM DESCRIPTION QUANTITY Ottoman Adjusting the ottoman as required Your seating set is now ready for use. Enjoy! Please refer to part numbers when reordering For questions or comments about product: Call toll-free: 1-800-457-4652 between 9:00 am to 5:00 pm Eastern standard time Monday through Friday or contact us at www.numarkcustomerservice.com Made in / Hecho en CHINA.
