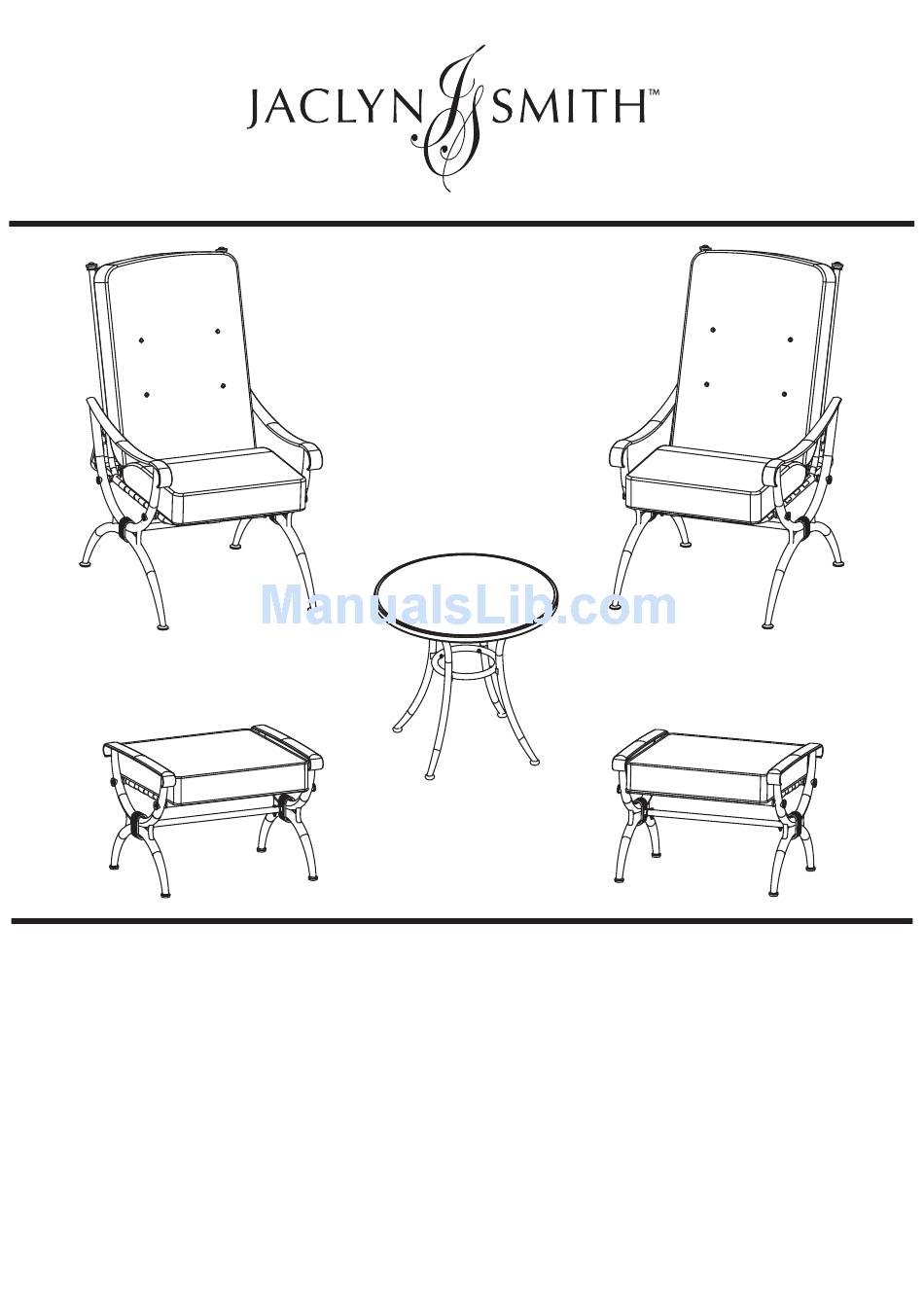

OWNER' S MANUAL
ADDISON 5PC SEATING SET
Product code: 0-04005967-7
UPC code: 769455 761286
Vendor Item: SC-160-2NRL/5
Date of purchase:_____/_____/_____
1 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADDISON 5PC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jaclyn Smith ADDISON 5PC

Summary of Contents for Jaclyn Smith ADDISON 5PC

  • Page 1 OWNER’ S MANUAL ADDISON 5PC SEATING SET Product code: 0-04005967-7 UPC code: 769455 761286 Vendor Item: SC-160-2NRL/5 Date of purchase:_____/_____/_____...
  • Page 2 PARTS Read through all the instructions before beginning assembly. Unpack and identify all the parts. Place them on a flat, non-abrasive surface. Assembly by two people is recommended. ITEM DESCRIPTION QUANTITY ITEM DESCRIPTION QUANTITY Chair Right Arm Ottoman Seat Ottoman Cushion Chair Left Arm Glass Tabletop with Rim Chair Seat and Back...
  • Page 3 ACCESSORIES La (12 + 1 spare) Lf (8 + 1 spare) Short Bolt Lb (16 + 1 spare) Lg (1) Long Bolt Allen Wrench Lh (16 + 1 spare) Lc (4) Bolt Cap Screw Li (1) Ld (16 + 1 spare) Hex Wrench Sleeve Le (20)
  • Page 4 Lb x 4 Long Bolt Ld x 4 Sleeve Don’t tighten completely. Repeat procedure for the other side. La x 2 Short Bolt Le x 4 Metal Washer Lf x 2 Don’t tighten completely. Repeat procedure for the other side.
  • Page 5 Lh x 4 Bolt Cap Tighten all bolts and nuts completely. Repeat procedure for the other chair. OTTOMAN ASSEMBLY...
  • Page 6 Lb x 4 Long Bolt Ld x 4 Sleeve Don’t tighten completely. Repeat procedure for the other side. La x 2 Short Bolt Le x 4 Metal Washer Lf x 2 Don’t tighten completely. Repeat procedure for the other side.
  • Page 7 Lh x 4 Bolt Cap Tighten all bolts and nuts completely. Repeat procedure for the other ottoman. SIDE TABLE ASSEMBLY Lc x 4 Screw Tighten all screws completely. Repeat for all four legs.
  • Page 8 La x 4 Short Bolt Le x 4 Metal Washer Don’t tighten completely. Repeat for all four legs. Tighten all bolts in a diagonal pattern. Now your seating set is ready to use. CARE INSTRUCTIONS Wash with a mild solution of soap and water; rinse thoroughly. Dry completely. Do not use bleach or solvents. Cover furniture with outdoor furniture covers when not in use.
