Summary of Contents for ICU EVE

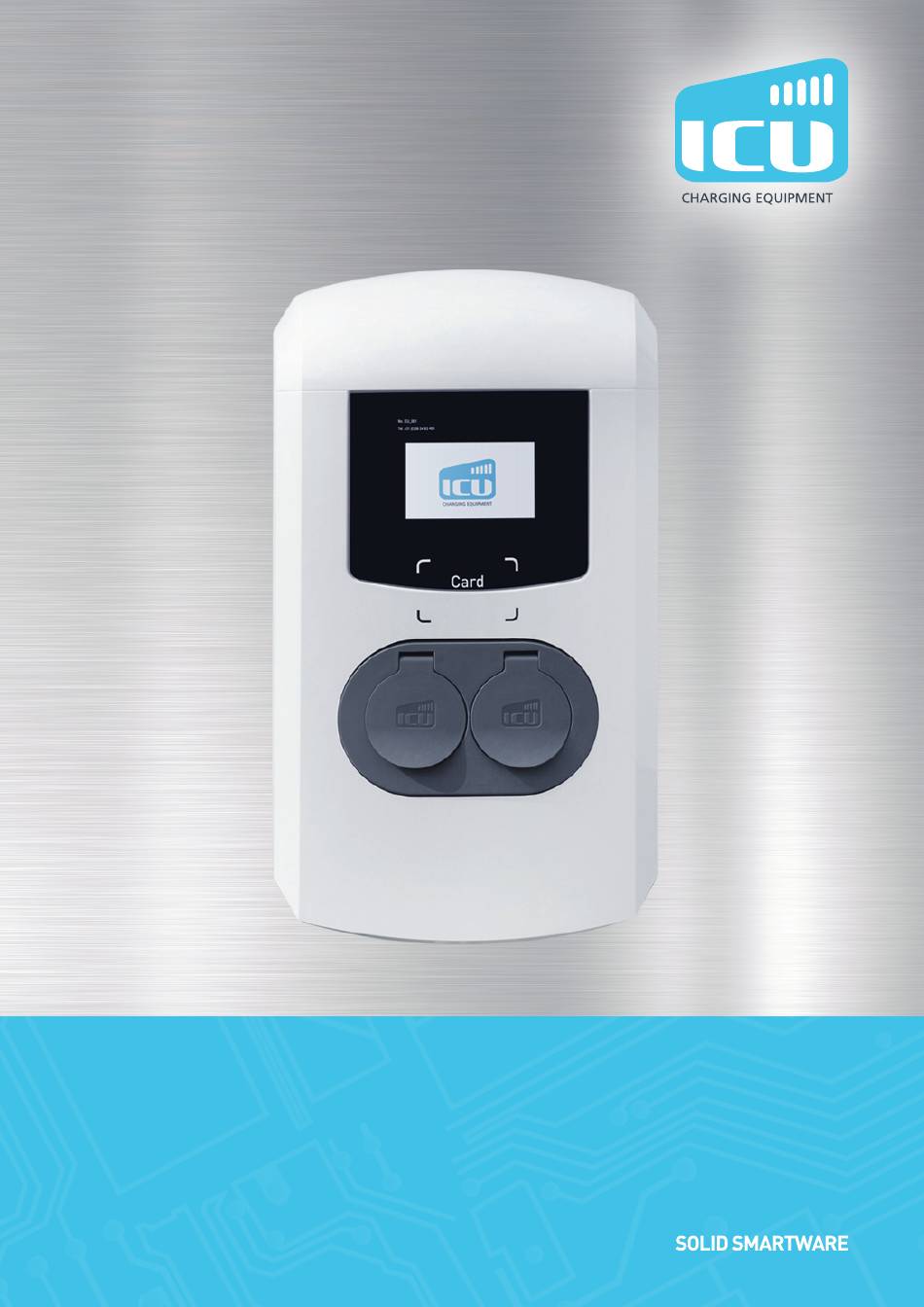

  • Page 1 MANUAL / HANDBOEK / ANLEITUNG / MANUEL / MANUALE...
  • Page 2 Package Contents / Inhoud Verpakking / Inhalt Verpackung / Contenu de l‘emballage / Contenuto della confezione ICU Eve Pole / Paal / Säule / Pôle / Polo Anti-theft M4 x 12 Types / Varianten / Varianten / Variantes / Varianti Plug &...
  • Page 3 Outside / Buiten / Außen / Extérieur / Esterno INTERFACE ANPASSEN H x W x D: 590 x 338 x 230 mm...
  • Page 4 Inside / Binnenzijde / Innen / Intérieur / Interno...
  • Page 5 Installation / Installatie / Installation / Installation / Installazione...
  • Page 6 Operating / Operating / Betrieb / Opération / Operazione Plug & Charge – Authorisation without charging card Start Stop Charging station with RFID card Start 3 sec. Stop 3 sec.
  • Page 7: 1333 Hc Almere The Netherlands

    Contact / Contact / Kontakt / Contact / Contatto Alfen ICU B.V. Splijtbakweg 15 1333 HC Almere The Netherlands Postbus 1042 1300 BA Almere Tel: +31 36 54 93 400 E-mail: info@icu-charging-stations.com Website: www.icu-charging-stations.com Status LED / Status LED / Status-LED / LED d‘état / LED di stato...
  • Page 8 Subject to modifications and amendments. Alfen ICU B.V. | Splijtbakweg 15 Almere NL | Tel: +31 36 - 549 34 00 E-mail: info@icu-charging-stations.com | www.icu-charging-stations.com...
  • Page 9: Table Of Contents

    2.1 The charging station The Netherlands 2.2 LED-status display 2.3 Technical specifications Declares the conformity of the product: Charging stations of Type ICU Eve 3. Mounting and connecting 3.1 Installation and connection Following the Euopean Directives: 3.2 Requirements for assembly and installation 6...
  • Page 10: Safety And Operation Instructions

    Safety and operation instructions 1. Safety and operation instructions 1.1 Aim of the manual and target group In the following cases Alfen ICU B.V. accepts no liability for damages. The warranty on products and accessories expires in the following cases: The ICU Eve charging station is intended exclu- •...
  • Page 11: Product

    Connection LEDs and display test support. Isolator switch 2.2 LED-status display The ICU Eve comes with separate LEDs on each side which indicate the status of each socket. Please find below an overview of the different states: Status LED Meaning •...
  • Page 12: Technical Specifications

    Product 2.3 Technical specifications Input/power supply Power supply 5 x 4 - 16 mm² Rated voltage 400 V Mains connection 25 A 1-phase 230 V 50 Hz (2 x 3.7 kW version); 40 A 1-phase 400 V 50 Hz (2 x 7.4 kW version, UK only); 40 A 3-phase 400 V 50 Hz (2 x 11 kW version);...
  • Page 13 Internet / Network ability GPRS (900/1800Mhz), SIM lock free or TCP/IP (at least CAT5 Ethernet) Communication protocol OCPP 1.5 (JSON) Backend-connection ICU Connect (optional) or other backend (on request) Communication with Smart Meter P1 Port Operating conditions Operating temperature -30°C to 40°C...
  • Page 14: Mounting And Connecting

    • The cable route from the main distribution to A charging station should always be installed on the ICU Eve must be secured with a miniature a dedicated circuit. circuit breaker (MCB) with characteristic B or a screw or blade fuse gG against overvoltage and...
  • Page 15: Mechanical Installation

    The cable route must be laid in accordance with applicable standards • The cable tray is made of copper cable with The following tools and materials to install the ICU a maximum conductor temperature of at least Eve: 90 °C •...
  • Page 16: Electrical Installation

    Installation of the charging station 4. Mount the suspension block using two threaded 3. Loosen with a Torx M5 (T25) the two screws on bolts M10x25 mm the (side of the) rear housing 5. Attach the charging station to the pole by using 4.
  • Page 17: Commissioning The Charging Station

    2. The red LED lights up for one second conti- nuously 3. All LEDs light up for one second continuously 4. The red LED flashes five times, so that the elec- tronics are started 5. All LEDs go out 6. The ICU Eve is now ready for charging...
  • Page 18: Connectivity

    Card Slot ( on the left of the cover), please con- tact your back end provider or Alfen ICU. If you would like to sign a contract with ICU for pro- vision of ICU EZ back end services, go to www.icu- charging-stations.com/ez-english...
