Connecting the electrical wiring:

Remove the black end plug (control panel) from the rotation box.
The electrical assembly within the rotation box has controls for rotation and elevation.
The elevation box is connected into the existing rotation box, undo and discard the
white or light coloured blanking plug on the rotation box and pass the wiring from the
elevation box through into the rotation box.
It is advisable to slacken the rear part of the gland to allow it to spin on the cable dur-
ing fitting - this prevents the cable from twisting as the gland is screwed in.
Once the cable is in place tighten the gland into the threaded hole and fit the plastic
nut to secure it in place, re-tighten the front part to seal the cable against moisture
ingress and prevent it pulling out in use.
The wiring for the elevation unit is fitted with metal boot-lace ends, and should be
fitted into the terminal block connectors a shown below.
Control panel
Connect the wiring to the
terminal block.
The cable supplied will have
Brown and green/yellow wires
fitted with metal boot-lace ends
(there may also be a blue wire cut
back—this is not used)
The brown wire should be connected to the terminal with the brown wire in it.
The green/yellow wire should be connected to the terminal with the green/yellow
wire in it.
Ensure that the screws are fully tightened and that the gland is secure to prevent the
cable pulling out in use.
Replace the black end plug (control panel) in the end of the rotation box ensuring that
the relays are passed inside the box and that no wires become trapped. Tap the plug
home with firm hand pressure near the edges.

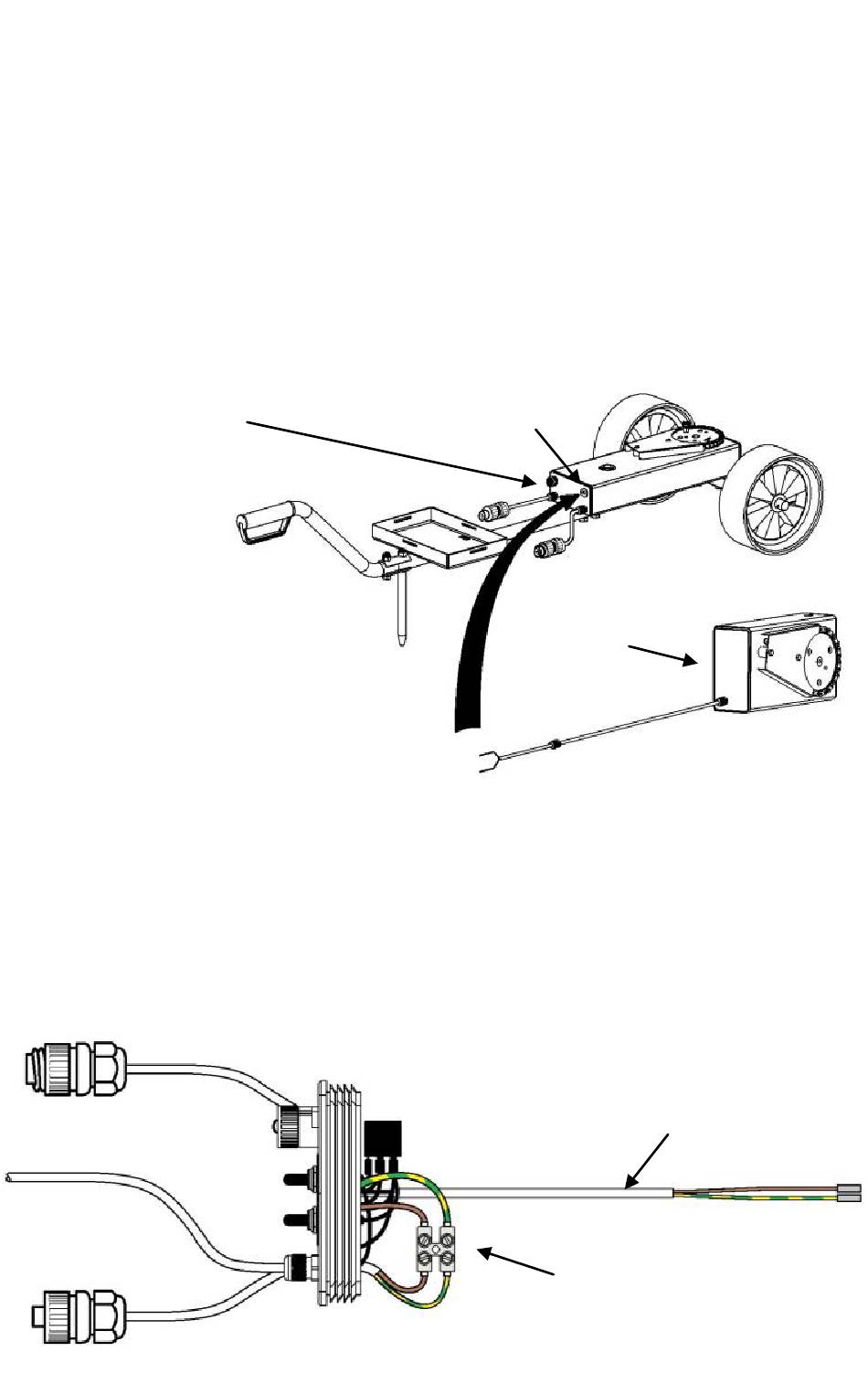

Connection to trap
Elevation box cable
Connector for
fire button
Blanking plug
6
Elevation
box
Rotation motor
power cable
(fitted)
Terminal block for elevation
motor connection
