At the rear of the trap pass the M8
cup square bolt through the rear key-
hole slot and the longer nylon spacer,
passing the bolt through into the hole
in the trap's side frame ensuring that
the flats of the cup square head sit
properly within the thin part of the
keyhole slot before securing with a
Nyloc nut (Do not fully tighten yet).

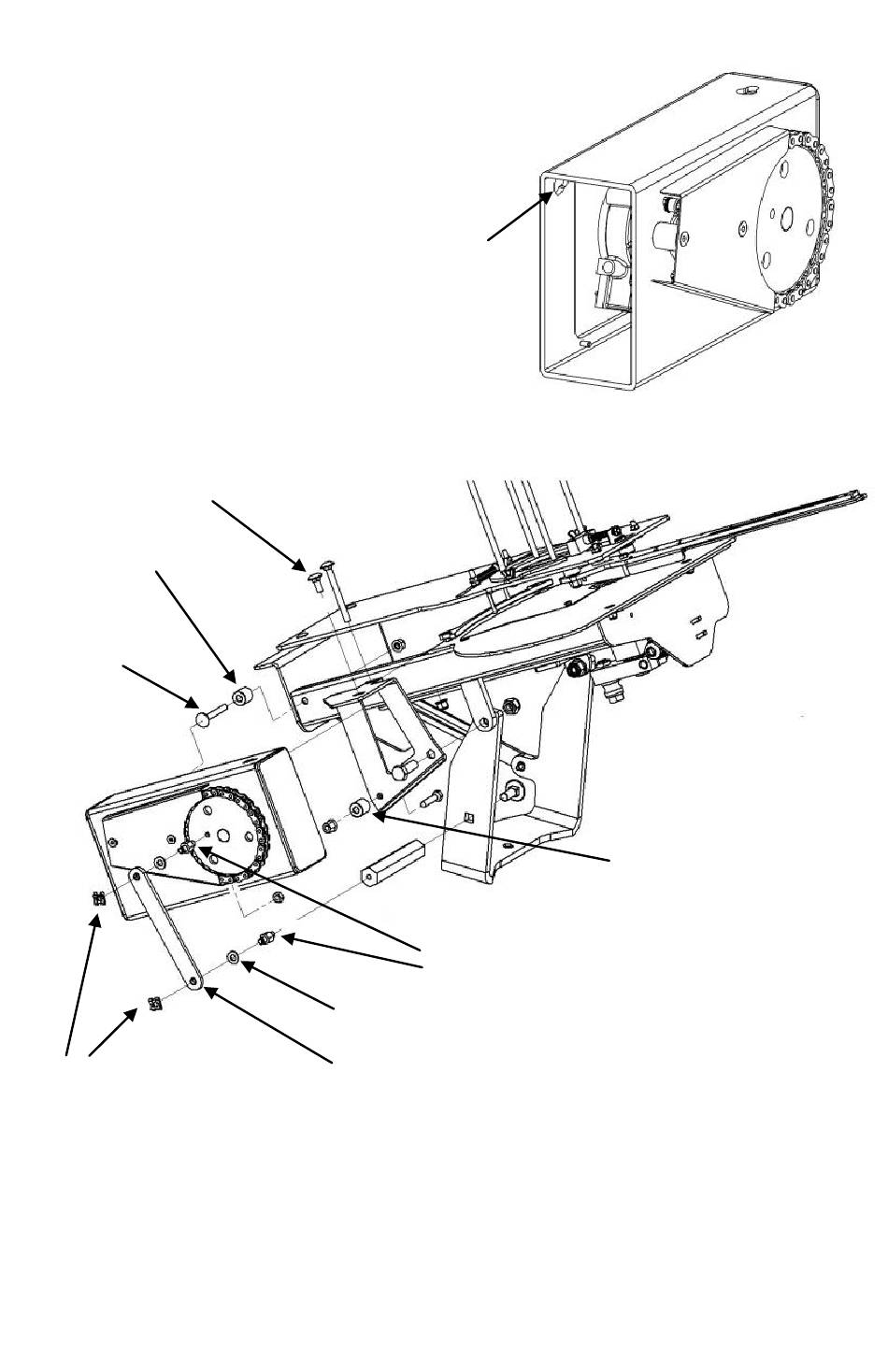

Returning to the front of the elevation
box, place the short M8 Cup square
bolt (Upper fixing bolt on diagram
below) through the keyhole slot in the
upper face and securing internally
with a Nyloc nut.
At this stage all three nuts should be
fully tightened and the plastic end
caps replaced.
Upper fixing bolt
Nylon spacer
(Long)
Mounting
bolt
Clip
Each of the threaded spigots should now be fitted with a lightly greased washer, fol-
lowed by the crank fitted between them. The crank is secured by a spring clip at each
end which simply slides into the fine groove, snapping in place over the end of the
shaft.
Keyhole
slot
Threaded Spigots
Washer
Crank
5
Nylon spacer
(Short)
